JS 35 (7800197) - John Deere 21" Walk-Behind Mower (2009) Mower Deck Parts Diagram

21" Walk-Behind Mower

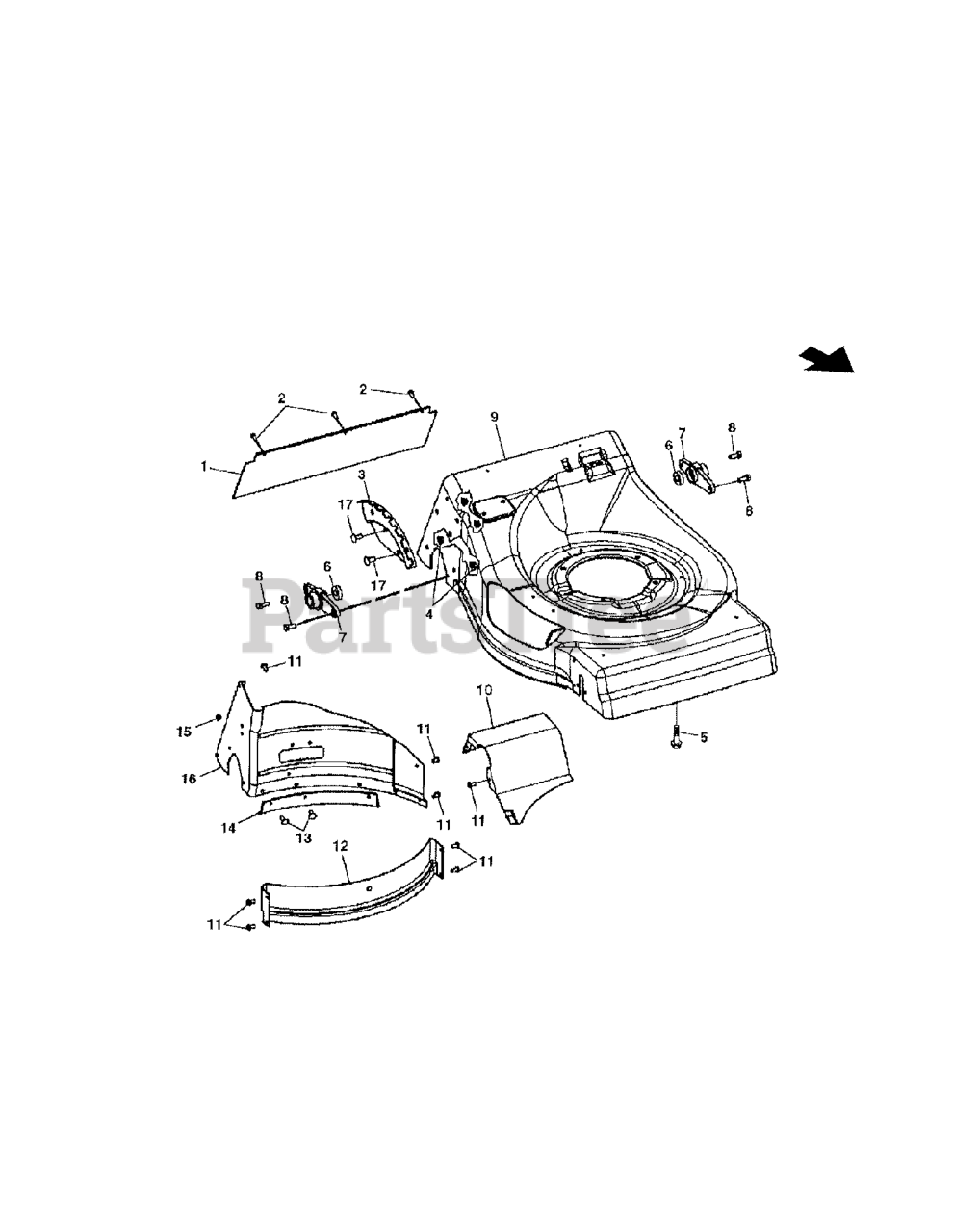

Mower Deck Parts Diagram

  • Title

--

Murray 126T05-0264-B1

ENGINE, B&S 675 SERIES QTM, ES, Mod. 126T05-0264-B1, MY09' (not shown)

Note: 7800197 JS35

$

$

Currently unavailable

--

Murray 126L05-0125-F1

ENGINE, B&S 675 SERIES QTM, ES, Mod. 126L05-0125-F1, CALIF, MY09' (not shown)

Note: 7800234 NJS35

$

$

Currently unavailable

--

Murray 126T05-0266-B1

ENGINE, B&S 675 SERIES, Mod. 126T05-0266-B1, CANADA, ES (not shown)

Note: 7800237 JS35FC

$

$

Currently unavailable

1

Murray 7101553

DEFLECTOR, REAR, 21" WBM, RD
(Superseded to 7101553YP)

$

$

Not available

2

Murray 7091286

HWST,10-24X.50 SEMS
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 17

0

3

Murray 7300587F

PLATE, HOC INDEX, 21" WBM, RD
(Superseded to 7300587FYP)

$12.99

$

Usually ships in 2-12 days

0

4

Murray 7091601

FLN, 5/16-18 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

5

Murray 7090324

HWST, 3/8-16 X 1

$4.99

$

In Stock, only 4 left!

0

6

Murray 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, only 2 left!

0

7

Murray 7101418

BEARING HOLDER, 21" WBM, RD
(Superseded to 7101418YP)

$15.99

$

In Stock, only 1 left!

0

8

Murray 7091318

HHCS, 5/16 X 3/4 GR5 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

9

Murray 7300584F

DECK, 21" RD
(Superseded to 7300584DYP)

$298.99

$

Usually ships in 2-12 days

0

10

Murray 7300591F

BAFFLE, RIGHT REAR, 21" WBM, RD

$

$

Currently unavailable

11

Murray 7900067

TORX ST, 1/4-20 X .550
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

12

Murray 7300585F

BAFFLE, FRONT 21" WBM, RD

$

$

Currently unavailable

13

Murray 7091085

FHSNB 10-24X1/2
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

14

Murray 7101502

BAFFLE, EXTENSION, 21" RD WBM
(Superseded to 7101502YP)

$8.49

$

In Stock, only 1 left!

0

15

Murray 7091290

HLN, 10-24 UNC-2B W/NYLON INSERT
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

16

Murray 7300589F

BAFFLE, LEFT REAR, 21"RD,WBM

$

$

Currently unavailable

17

Murray 7091508

RHSSNB, 5/16-18 X 3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0
