JS 35 (7800197) - John Deere 21" Walk-Behind Mower (2009) Wheels and Axles Parts Diagram

21" Walk-Behind Mower

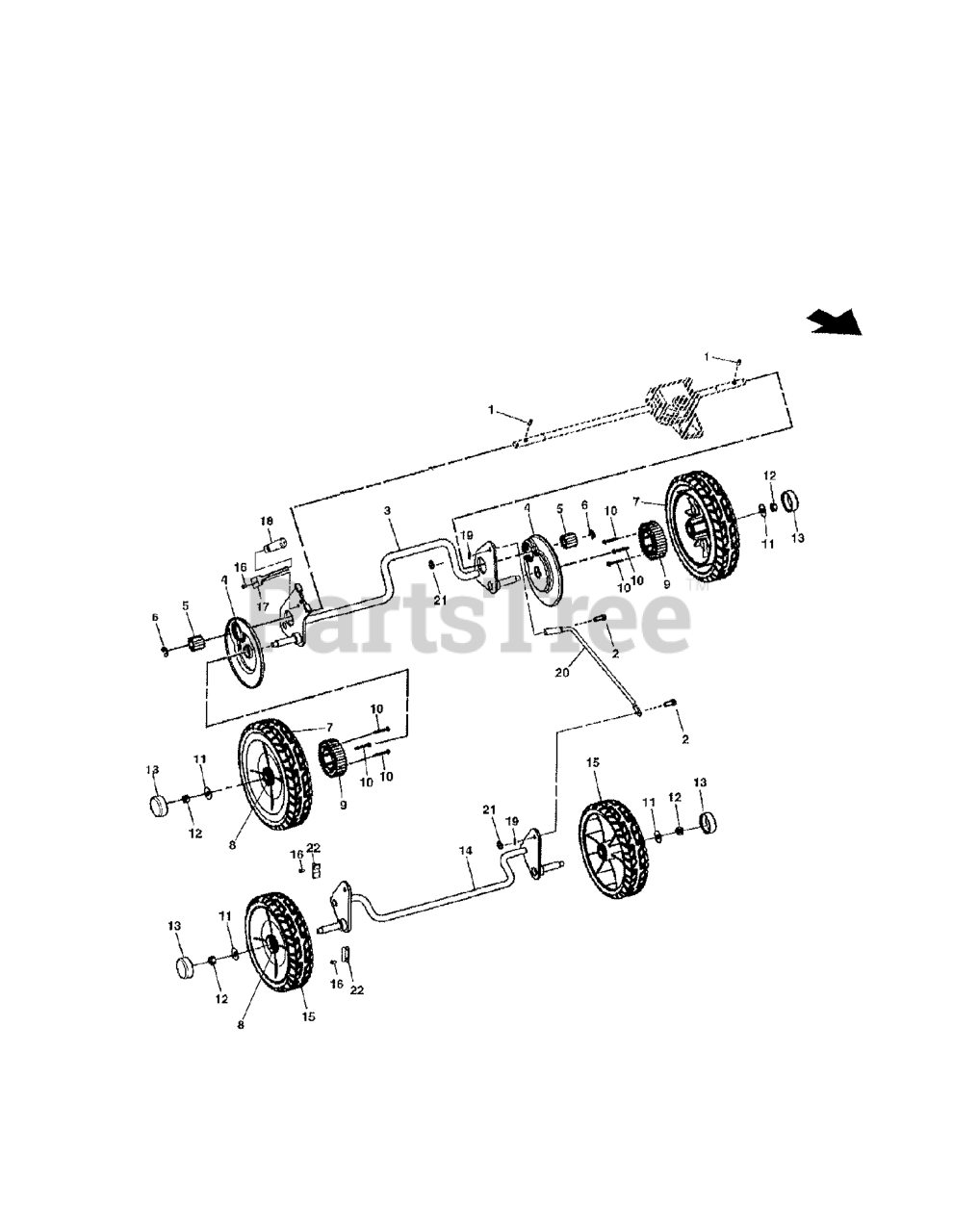

Wheels and Axles Parts Diagram

  • Title
1

Murray 7100861

PIN, AXLE
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

2

Murray 7101774

BOLT, SHOULDER, 1/4 X .375, YZ
(Superseded to 7101774YP)

$8.49

$

In Stock, only 2 left!

0

3

Murray 7400275

WELDMENT, REAR CROSSBAR 21" WBM, RD, YZ
(Superseded to 7400275YP)

$110.99

$

In Stock, only 1 left!

0

4

Murray 7101367

SHIELD, DUST, 21" WBM, RD
(Superseded to 7101367YP)

$7.49

$

In Stock, only 2 left!

0

5

Murray 7100820

GEAR, PINION
(Superseded to 7100820YP)

$6.49

$

Usually ships in 2-12 days

0

6

Murray 7014341

RETAINING RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

7

Murray 7500646

ASSY, WHEEL, W/BEARING 9" JD TRD, JD YELLOW
(Superseded to 7500646YP)

$45.99

$

In Stock, Qty 18

0

8

Murray 7101380

BEARING, BALL, 1-1/8"OD, FLANGE
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

9

Murray 7100914

GEAR, EXTERNAL WHEEL
(Superseded to 7100914YP)

$10.99

$

In Stock, only 2 left!

0

10

Murray 7091196

HWST, #8 X 1-1/4, HI-LO
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

11

Murray M722604

WASHER, FLAT, 1" OD X .387 ID

$

$

Currently unavailable

12

Murray 7091585

HCLN, 3/8-16 YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

13

Murray 7101391

HUBCAP, ROUND, JD YELLOW
(Superseded to 7101391YP)

$4.49

$

In Stock, Qty 20+

0

14

Murray 7400276

WELDMENT, FRONT CROSSBAR 21" WBM, RD, YZ
(Superseded to 7400276YP)

$152.99

$

Usually ships in 2-12 days

0

15

Murray 7500544

ASSY, WHEEL, 8X2 IDLE, JD TRD, BB, JD YELLOW
(Superseded to 7500544YP)

$42.99

$

In Stock, Qty 15

0

16

Murray 7900067

TORX ST, 1/4-20 X .550
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

17

Murray M724970

LEVER, SPRING HOC

$

$

Currently unavailable

18

Murray M724887

GRIP HOC

$

$

Currently unavailable

19

Murray 7091892

PUSHNUT, 1/4 BLK
(Superseded to 7091892YP)

$3.99

$

In Stock, only 1 left!

0

20

Murray 7101430F

ROD, LIFTER LINK, 21" WBM, RD
(Superseded to 7101430FYP)

$16.99

$

In Stock, only 1 left!

0

21

Murray 7091290

HLN, 10-24 UNC-2B W/NYLON INSERT
(Superseded to 703412)

$4.49

$

In Stock, Qty 7

0

22

Murray 7101241

BUSHING, FRONT 21"
(Superseded to 7101241YP)

$6.99

$

In Stock, Qty 6

0
