JS 48 S (7800863) - John Deere 22" Walk-Behind Mower (2012) Handle & Controls Group (7502562) Parts Diagram

22" Walk-Behind Mower

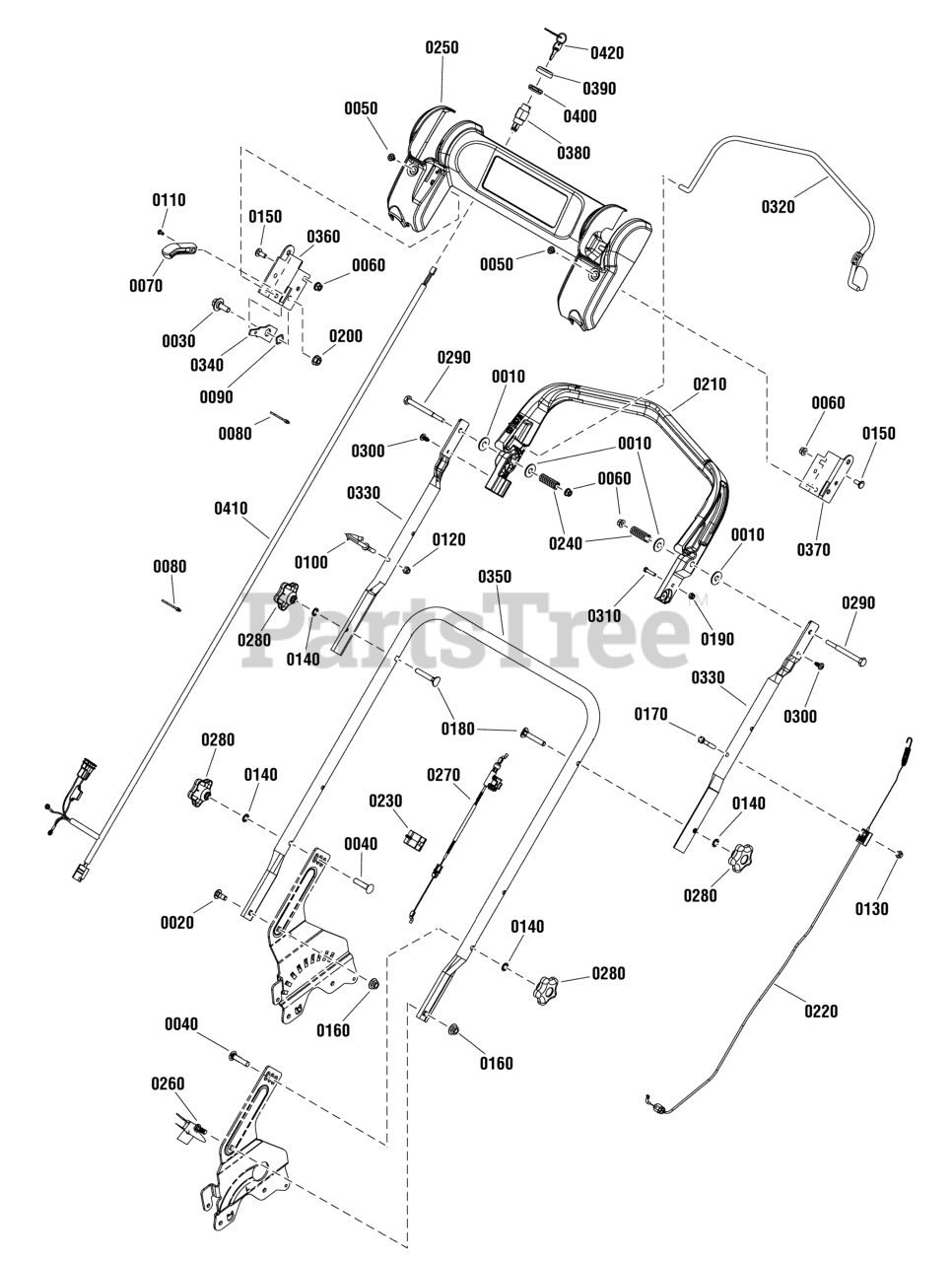

Handle & Controls Group (7502562) Parts Diagram

  • Title
0010

Murray 17X104MA

WASHER, 25/64 x 1" x 14 Ga. Flat
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

0020

Murray 340720MA

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 1716654SM

SHOULDER BOLT, 5/16-18, GR 5

$5.49

$

In Stock, only 4 left!

0

0040

Murray 1931337SM

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR 5
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

0050

Murray 1960382YP

RIVET, 1/4 x 5/8" Blind Steel

$3.99

$

Usually ships in 2-12 days

0

0060

Murray 2860694SM

NUT, 1/4-20 Hex Flange Nyloc
(Superseded to 703463)

$4.49

$

In Stock, Qty 5

0

0070

Murray 7023655YP

KNOB, Throttle Control

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 7024649YP

WIRE TIE, 11"

$5.49

$

Usually ships in 2-12 days

0

0090

Murray 7026257MA

WASHER, .531 x .781 Wave

$4.49

$

In Stock, only 2 left!

0

0100

Murray 7028488MA

ROPE GUIDE (1/4-20 thread)

$6.49

$

Usually ships in 2-12 days

0

0110

Murray 7071921YP

RIVET, Plastic Snap

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 7076978SM

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 7090372SM

NUT, 1/4-20 Hex Center Lock, GR 5 or B
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0140

Murray 7090391SM

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 7090803YP

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 7090951SM

NUT, 5/16-18 Large Flange Head Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

0170

Murray 7091003YP

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5

$3.49

$

In Stock, only 2 left!

0

0180

Murray 7091189YP

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 16

0

0190

Murray 7091290SM

NUT, #10-20 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

0200

Murray 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0210

Murray 7101239YP

HANDLE, Pivoting, Deere, WBM

$72.99

$

Usually ships in 2-12 days

0

0220

Murray 7103354YP

* CABLE, Drive, VS, RWD, JD, 45.98" Long

$34.99

$

In Stock, Qty 7

0

0230

Murray 7104614YP

FITTING, Cable (snap-in)

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 7104703YP

SPRING, Compression

$7.99

$

Usually ships in 2-12 days

0

0250

Murray 7104759YP

PANEL, Upper Handle, Deere, WBM

$33.99

$

Usually ships in 2-12 days

0

0260

Murray 7104761YP

GUIDE, Cable (5/16-18 thread)

$7.49

$

In Stock, only 1 left!

0

0270

Murray 7105033YP

* CABLE, Zone Control w/Cap, 54.91" Long

$20.99

$

In Stock, Qty 19

0

0280

Murray 7102990YP

KNOB, Handle, 5 Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0290

Murray 7900045YP

BOLT, Shoulder, 1/4-20 thread, GR 5

$3.99

$

Usually ships in 2-12 days

0

0300

Murray 7900067YP

SCREW, Pan Head, Self Tap, Torx, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

0310

Murray 7900080YP

SCREW, #10-24 x .87 Hex Head Machine

$3.49

$

Usually ships in 2-12 days

0

0320

Murray 7101322AYP

BAIL, Pivot Handle

$18.99

$

In Stock, only 1 left!

0

0330

Murray 7300435AYP

HANDLE, Upper Straight

$75.99

$

Usually ships in 2-12 days

0

0340

Murray 7300526AYP

HANDLE, Lock
(Superseded to 7300526BMYP)

$31.99

$

Usually ships in 2-12 days

0

0350

Murray 7301182AYP

HANDLE, Lower

$87.99

$

In Stock, only 1 left!

0

0360

Murray 7301186AYP

BRACKET, RH Rotation Limit

$6.49

$

Usually ships in 2-12 days

0

0370

Murray 7301187AYP

BRACKET, LH Rotation Limit

$5.49

$

Usually ships in 2-12 days

0

0380

Murray 7028765YP

SWITCH, E/S (Start/Run)
(Superseded to 690646)

$34.99

$

In Stock, only 1 left!

0

0390

Murray 7103874YP

BEZEL, Green

$5.99

$

In Stock, only 1 left!

0

0400

Murray 7104149YP

NUT, 5/8-32 Plastic

$3.49

$

Usually ships in 2-12 days

0

0410

Murray 7104826YP

WIRING HARNESS, JD, ES w/Charger Plug

$54.99

$

Usually ships in 2-12 days

0

0420

Murray 7011138YP

IGNITION KEY, Pair

$7.49

$

In Stock, Qty 9

0
