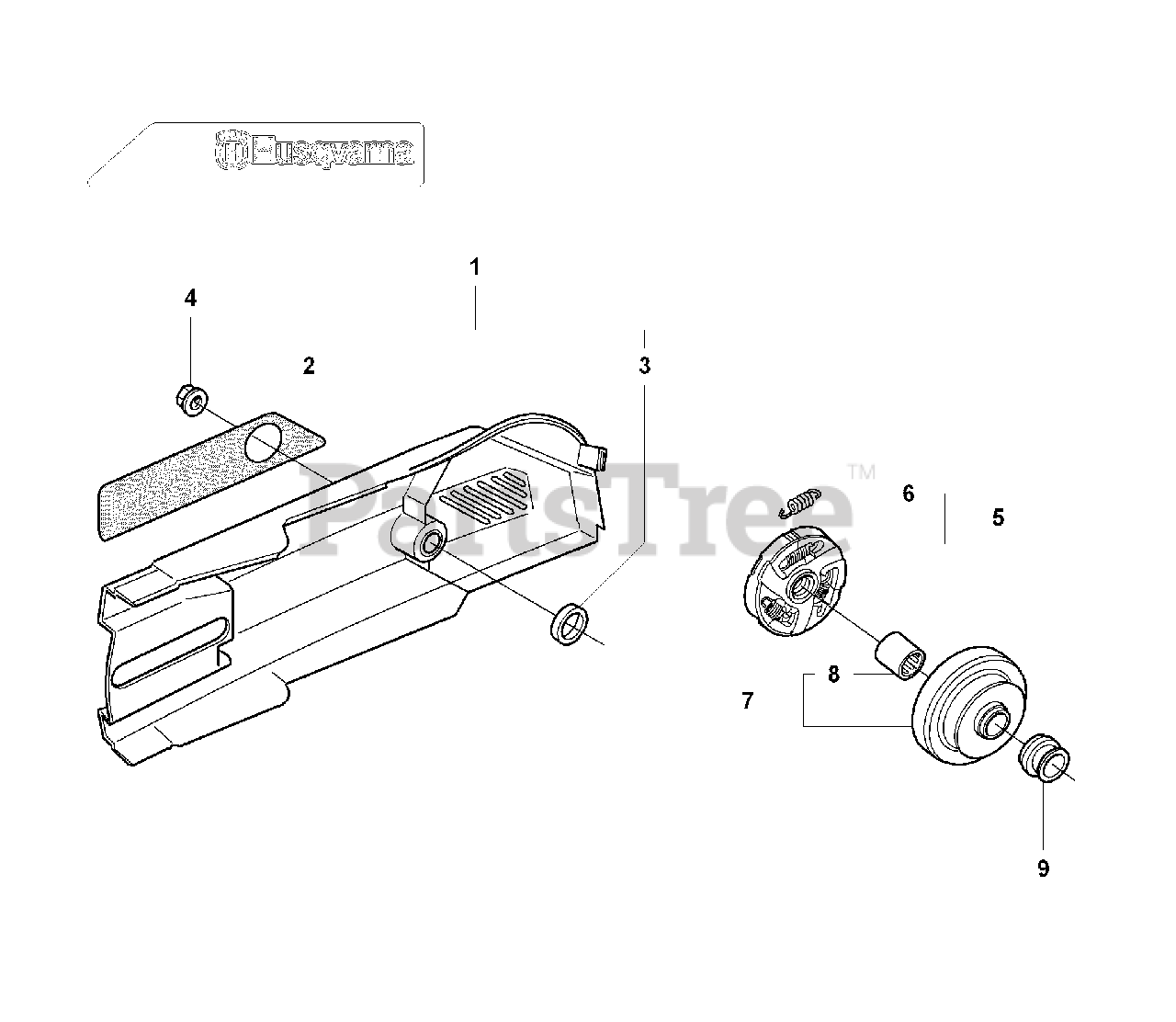

K 1250 Rail - Husqvarna Cut-Off Saw (2007-01) Belt Guard and Clutch Assy Parts Diagram

Cut-Off Saw

Belt Guard and Clutch Assy Parts Diagram

  • Title

1

Husqvarna 506271703

BELT GUARD
(Superseded to 506271704)

Note: Incl. 2, 3

$81.99

$

In Stock, only 2 left!

0

2

Husqvarna 544873601

LABEL

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506268401

SPACING SLEEVE

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503220001

NUT FLANGE

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 503144901

CLUTCH ASSY

Note: Incl. 6

$126.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503145101

CLUTCH SPRING

$11.99

$

In Stock, Qty 20+

0

7

Husqvarna 506254903

GEAR WHEEL ASSY

Note: 14". Diam. 50mm

$

$

Not available

7

Husqvarna 506254901

GEAR WHEEL ASSY
(Superseded to 540018403)

Note: 16". Diam. 41mm

$148.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506254902

GEAR WHEEL ASSY
(Superseded to 540018402)

Note: 16". Diam. 46mm

$158.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503253801

NEEDLE BEARING

$48.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506285901

SPACING SLEEVE

$31.99

$

In Stock, only 1 left!

0
