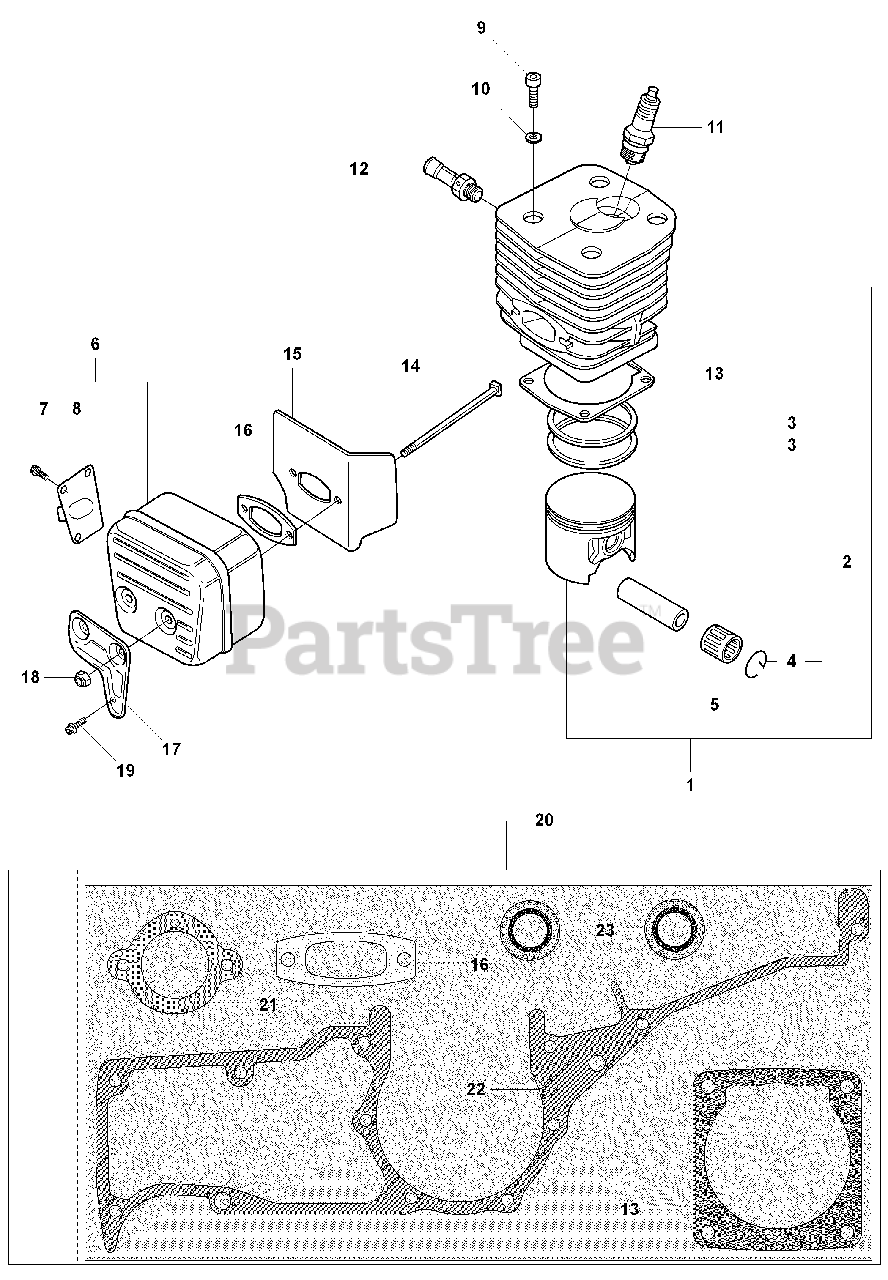

K 1250 Rail - Husqvarna Cut-Off Saw (2007-01) Cylinder and Gasket Kit and Muffler Parts Diagram

Cut-Off Saw

Cylinder and Gasket Kit and Muffler Parts Diagram

  • Title

1

Husqvarna 506294271

CYLINDER
(Superseded to 576270003)

Note: Incl. 2, 3, 4, 5

$1028.99

$

Usually ships in 3-10 days

0

2

Husqvarna 501894103

PISTON CPL

Note: Incl. 3, 4

$284.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503289026

PISTON RING

$50.99

$

In Stock, only 1 left!

0

4

Husqvarna 737441300

CIRCLIP

$3.49

$

In Stock, only 2 left!

0

5

Husqvarna 503132901

SUPPORT BUSHING

$36.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503130004

MUFFLER

Note: Incl. 7, 8

$

$

Not available

7

Husqvarna 729534001

SCREW

$3.49

$

In Stock, Qty 7

0

8

Husqvarna 506274901

EXHAUST DUCT

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503216025

SCREW

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 503230005

WASHER STEEL

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 503235109

SPARK PLUG
(Superseded to 530030179)

Note: RCJ 6Y

$4.49

$

Usually ships in 3-10 days

0

12

Husqvarna 503665601

DECOMPRESSION VALVE

$72.99

$

In Stock, only 1 left!

0

13

Husqvarna 503134601

GASKET

Note: Gasket kit 20

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503216401

SCREW

$11.99

$

In Stock, only 2 left!

0

15

Husqvarna 506341401

COOLING PLATE

$22.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503131304

GASKET MUFFLER
(Superseded to 503131305)

Note: Gasket kit 20

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 506278701

MUFFLER SUPPORT

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503222007

LOCK NUT

$3.49

$

In Stock, Qty 8

0

19

Husqvarna 725536855

SCREW

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 506292402

GASKET KIT
(Superseded to 506292404)

$32.99

$

In Stock, only 2 left!

0

21

Husqvarna 506274301

GASKET
(Superseded to 579851101)

$12.99

$

In Stock, only 1 left!

0

22

Husqvarna 503134501

CRANKCASE GASKET

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503260205

SEALING RING

$24.99

$

In Stock, only 1 left!

0
