K 1250 Rail - Husqvarna Cut-Off Saw (2007-01) K1250 Rail Parts Diagram

Cut-Off Saw

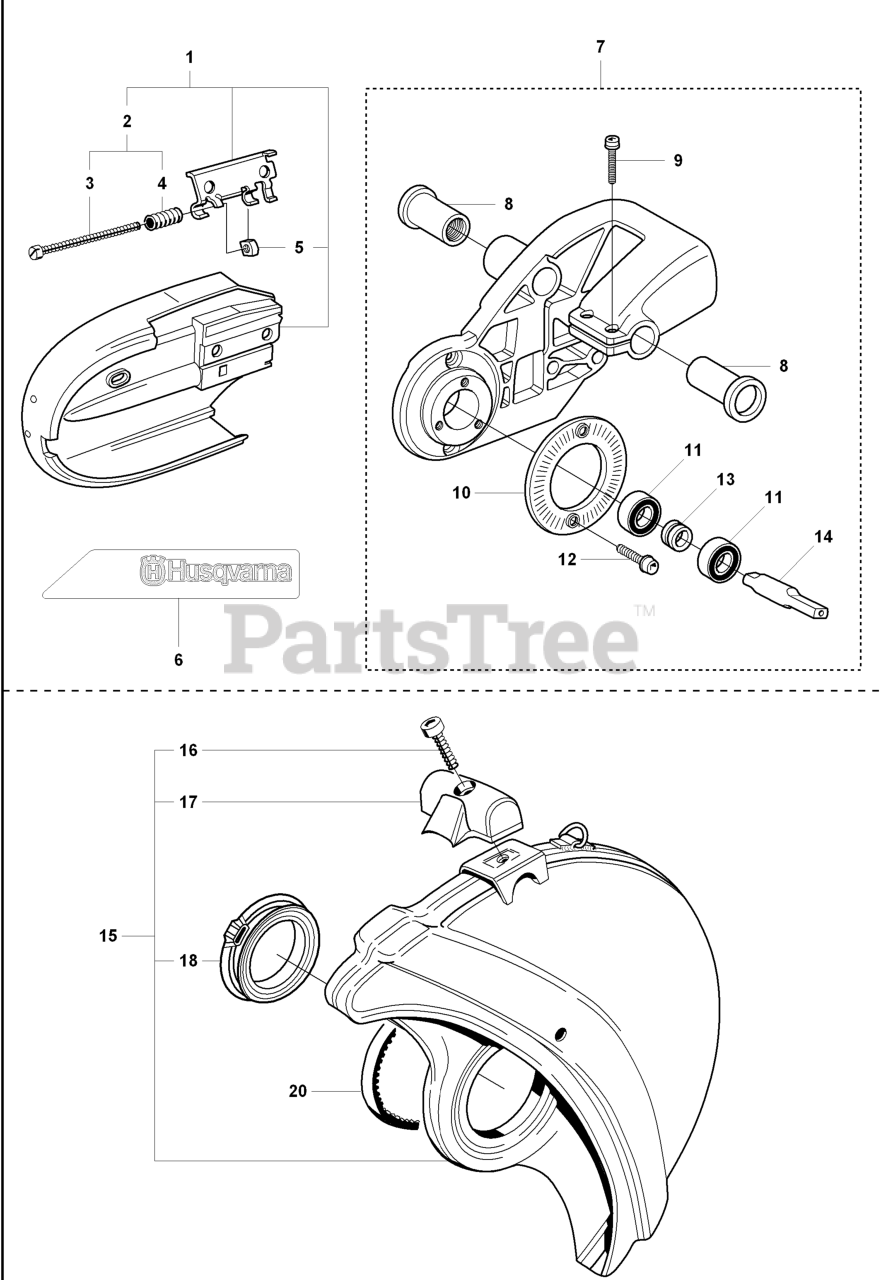

K1250 Rail Parts Diagram

  • Title

1

Husqvarna 506279231

BELT GUARD
(Superseded to 506279238)

Note: K1250 Rail 14"

$

$

Not available

1

Husqvarna 506279238

PROTECTOR

Note: K1250 Rail 16"

$

$

Not available

2

Husqvarna 506266603

TENSIONER

Note: Incl. 3, 4

$

$

Not available

3

Husqvarna 503203011

SCREW

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506266801

SPRING

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503226601

NUT

$5.99

$

In Stock, Qty 5

0

6

Husqvarna 544873601

LABEL

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544887501

BEARING HOUSING

Note: K1250 Rail 14"

$

$

Not available

7

Husqvarna 544887502

BEARING HOUSING

Note: K1250 Rail 16"

$

$

Not available

8

Husqvarna 506227501

SLEEVE

$104.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503200216

SCREW

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506288401

FLANGE

$10.99

$

In Stock, Qty 11

0

11

Husqvarna 503252101

BALL BEARING

$39.99

$

In Stock, only 2 left!

0

12

Husqvarna 503200712

SCREW

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 506070801

SPACER

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506298363

SHAFT

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506340524

RP GUARD
(Superseded to 506340554)

Note: 14". Incl. 18-21

$395.99

$

In Stock, only 1 left!

0

15

Husqvarna 506340526

PROTECTOR
(Superseded to 506340556)

Note: 16". Incl. 18-21

$395.99

$

Usually ships in 3-10 days

0

16

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$3.49

$

In Stock, Qty 7

0

17

Husqvarna 506344602

HANDLE

$10.99

$

In Stock, only 2 left!

0

18

Husqvarna 506266302

LINING

$33.99

$

In Stock, Qty 6

0

19

Husqvarna 506372738

V-BELT
(Superseded to 506372728)

Note: 16"

$48.99

$

Usually ships in 3-10 days

0
