K 1270 R - Husqvarna Cut-Off Saw (2016-07) CRANKCASE Parts Diagram

Cut-Off Saw

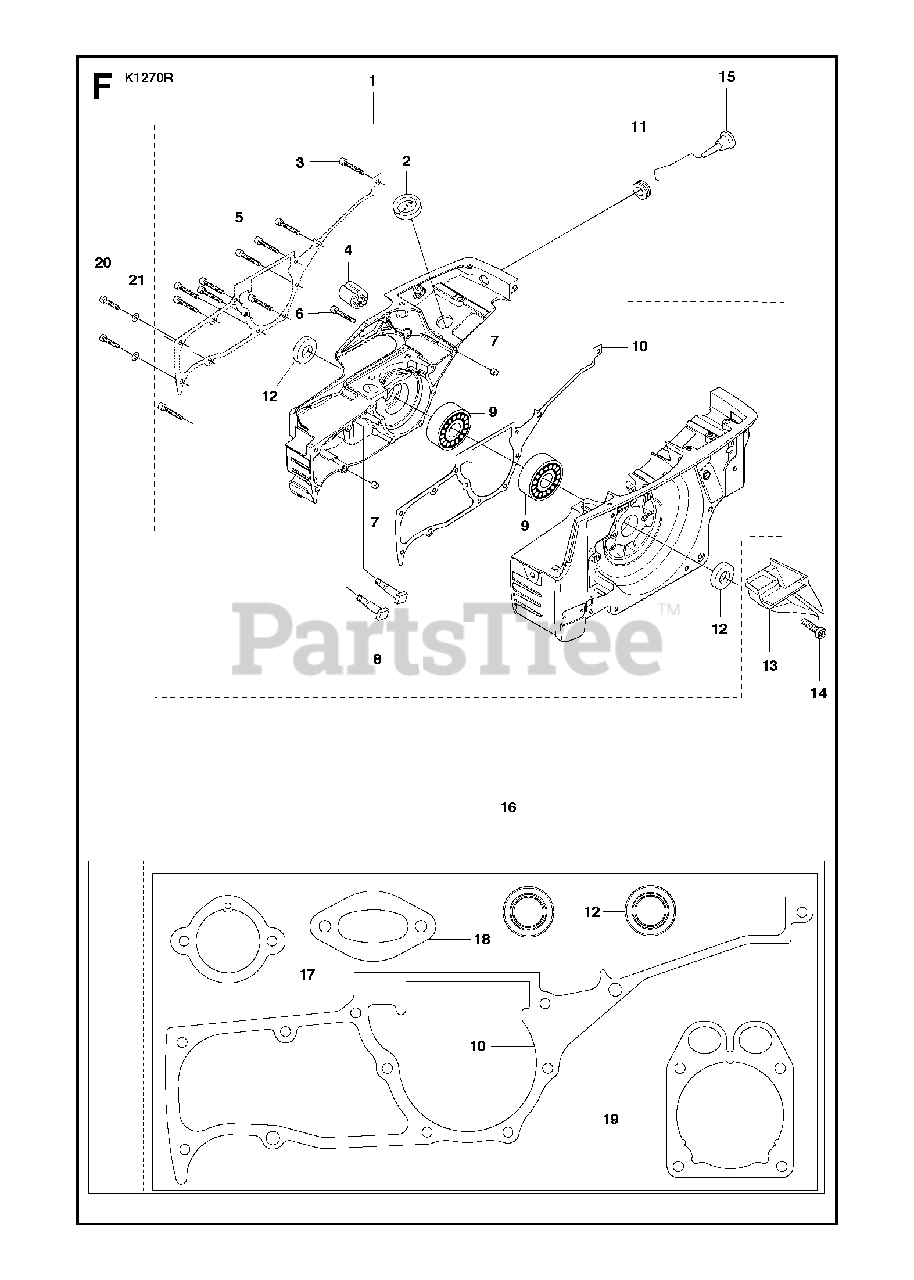

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 582 60 35-01

CRANKCASE ASSY

$

$

Not available

2

Husqvarna 503 13 20-01

GROMMET

$8.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503 21 53-20

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 501 26 97-05

ANTIVIBRATION ELEMENT

$10.99

$

In Stock, Qty 19

0

5

Husqvarna 503 21 53-41

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 544 21 84-20

SCREW ITXSCM

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 501 27 08-01

GUIDE BUSHING
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

8

Husqvarna 501 81 57-01

BAR BOLT

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$20.99

$

In Stock, only 4 left!

0

10

Husqvarna Construction 582 35 00-01

GASKET

$8.99

$

In Stock, only 2 left!

0

11

Husqvarna 503 14 54-02

GROMMET

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 503 26 02-05

SEALING RING

$25.99

$

In Stock, only 2 left!

0

13

Husqvarna 506 23 70-01

AIR NOZZLE

$30.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501 98 10-01

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna Construction 506 25 43-02

CHOKE CONTROL

$23.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 582 45 48-01

GASKET KITIncl. 10, 12, 17-19

$31.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 579 85 11-01

GASKET

$12.99

$

In Stock, only 1 left!

0

18

Husqvarna 585 28 09-01

GASKET

$8.99

$

In Stock, Qty 20+

0

19

Husqvarna Construction 587 53 62-01

GASKET

$14.99

$

In Stock, only 2 left!

0

20

Husqvarna 503 21 53-25

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 503 23 00-11

WASHER

$3.99

$

In Stock, only 2 left!

0
