K 2500 - Husqvarna Cut-Off Saw (2007-01) BELT GUARD & PULLEY Parts Diagram

Cut-Off Saw

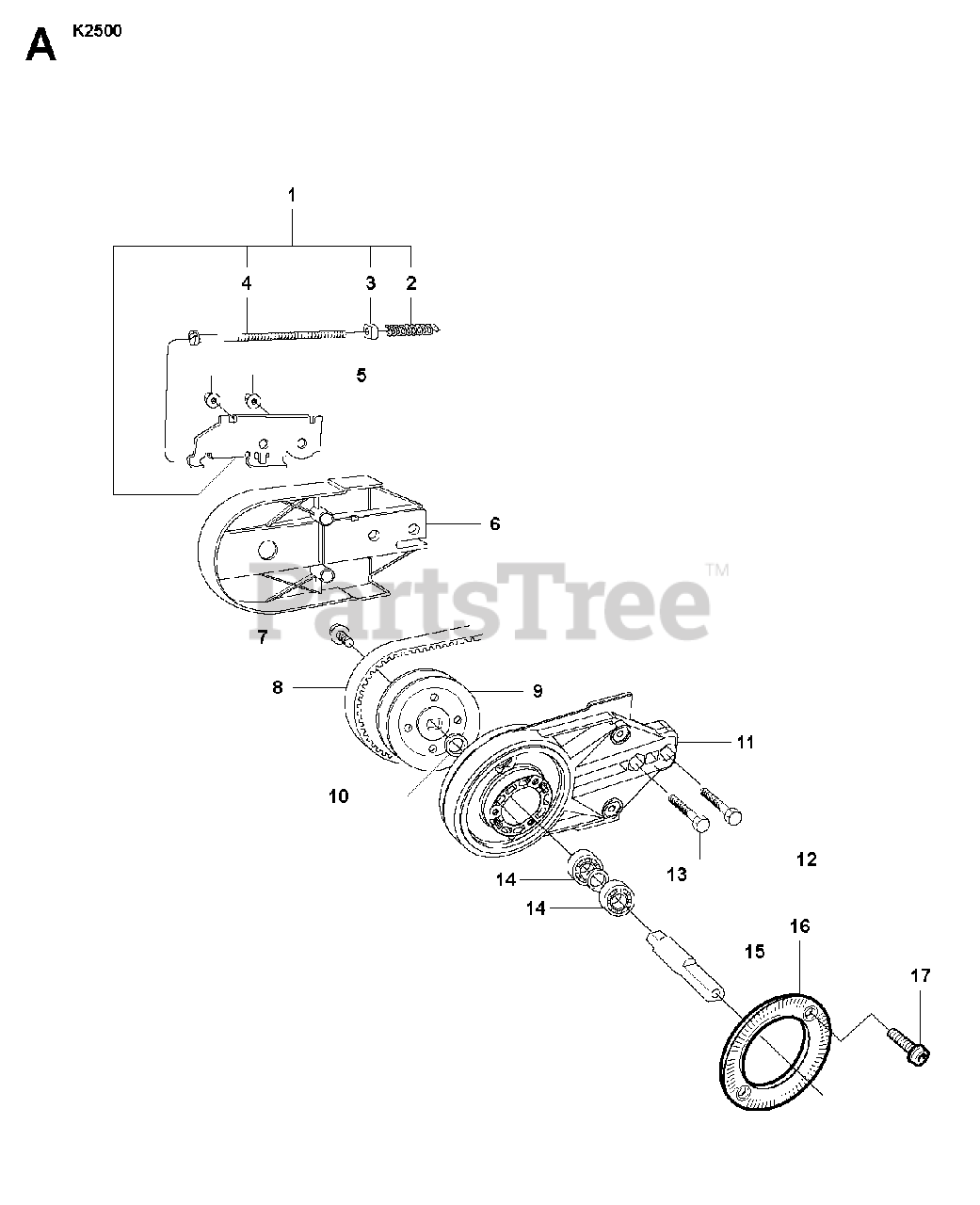

BELT GUARD & PULLEY Parts Diagram

  • Title

1

Husqvarna 506 03 06-02

BELT TENSIONER ASSYIncl. 2, 3, 4

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 506 21 95-01

COMPRESSION SPRING

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503 22 66-01

SQUARE NUT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 503 20 30-09

SCREW SLCHM

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503 22 00-01

HEXAGON NUT

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna Construction 506 09 87-02

BELT GUARD

$23.33

$

Usually ships in 3-10 days

0

7

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

In Stock, Qty 5

0

8

Husqvarna Construction 506 37 27-27

BELT

$32.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506 35 47-01

PULLEY

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503 23 01-04

WASHER

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna Construction 506 40 43-02

BEARING HOUSING

$96.83

$

Usually ships in 3-10 days

0

12

Husqvarna 506 03 32-02

SCREW

$8.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 506 20 18-01

SPACING SLEEVE

$11.67

$

Usually ships in 3-10 days

0

14

Husqvarna 503 25 21-01

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

15

Husqvarna Construction 506 29 83-71

SHAFT

$93.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506 28 84-01

SCREEN

$8.49

$

In Stock, Qty 10

0

17

Husqvarna 503 20 02-12

SCREW IHSCFM
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0
