K 2500 - Husqvarna Cut-Off Saw (2009-02) CHASSIS & ENCLOSURES Parts Diagram

Cut-Off Saw

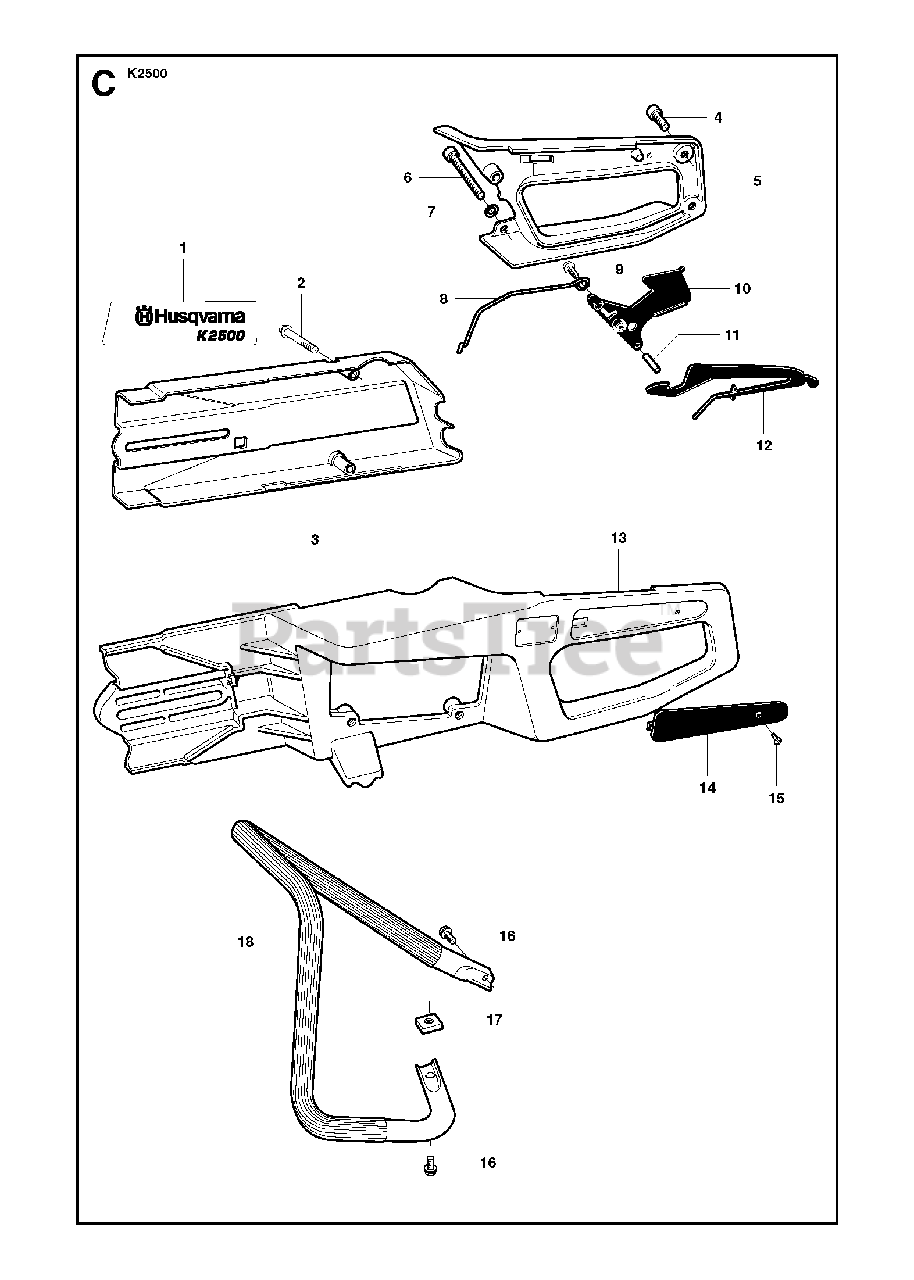

CHASSIS & ENCLOSURES Parts Diagram

  • Title

1

Husqvarna Construction 544 87 27-01

LABEL

$9.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503 20 02-40

SCREW IHSCFM

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna Construction 506 20 28-02

BELT GUARD

$51.99

$

Usually ships in 3-10 days

0

4

Husqvarna 725 53 27-55

SCREW IHSCM

$6.49

$

In Stock, Qty 15

0

5

Husqvarna Construction 506 20 16-02

HANDLE HALF

$205.99

$

Usually ships in 3-10 days

0

6

Husqvarna 725 53 41-55

SCREW IHSCM

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 23 04-02

WASHER

$8.99

$

In Stock, Qty 11

0

8

Husqvarna Construction 506 20 33-02

THROTTLE ROD

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna Construction 506 20 34-03

THROTTLE TRIGGER

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 720 13 10-00

PARALLEL PIN

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 506 01 45-06

THROTTLE LOCKOUT

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 506 20 36-02

CHASSIS

$461.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501 62 89-09

HANDLE INSERT

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 724 32 19-05

SCREW

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503 20 02-16

SCREW IHSCFM

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna Construction 506 20 29-03

FRONT HANDLE

$166.99

$

Usually ships in 3-10 days

0
