K 2500 - Husqvarna Cut-Off Saw (2010-10) BELT GUARD & PULLEY Parts Diagram

Cut-Off Saw

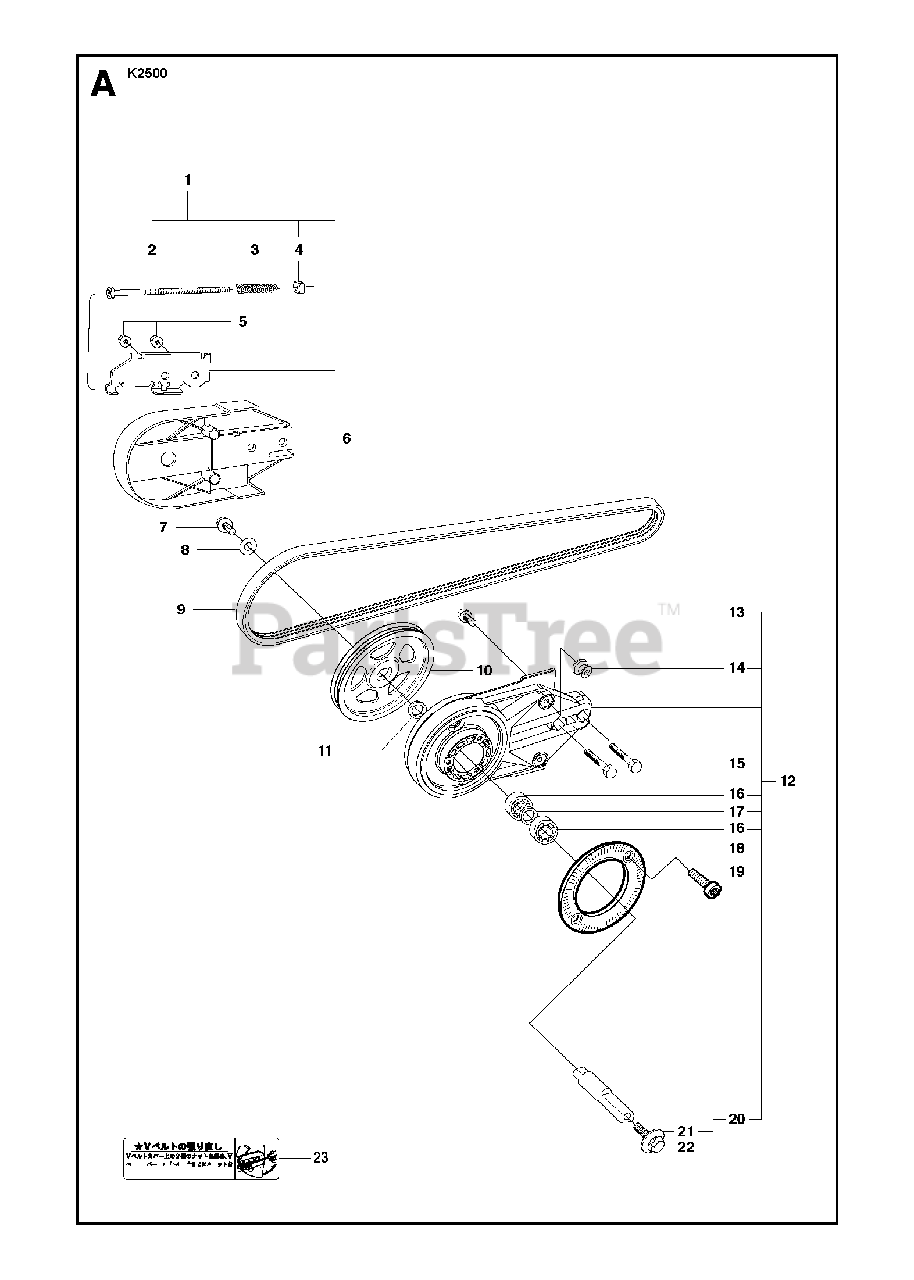

BELT GUARD & PULLEY Parts Diagram

  • Title

1

Husqvarna 506 03 06-03

BELT TENSIONER ASSYIncl. 2 - 4 (New Part)

$

$

Not available

2

Husqvarna Construction 503 20 72-20

SCREW CITXSCMNew Part

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 506 21 95-01

COMPRESSION SPRING

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 22 66-01

SQUARE NUT

$5.49

$

In Stock, Qty 8

0

5

Husqvarna 503 22 00-01

HEXAGON NUT

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna Construction 506 09 87-02

BELT GUARD

$34.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

In Stock, Qty 6

0

8

Husqvarna 503 23 01-16

WASHER

$3.49

$

In Stock, Qty 6

0

9

Husqvarna Construction 544 97 63-03

BELT

$55.99

$

In Stock, only 2 left!

0

10

Husqvarna 578 11 05-01

PULLEY

$208.99

$

In Stock, only 1 left!

0

11

Husqvarna 503 23 01-04

WASHER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 506 41 34-04

BEARING HOUSING ASSYIncl. 13 - 20 (New Part)

$155.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505 57 41-16

SCREW ITXSCMNew Part

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 506 14 32-01

TORSION STOPNew Part

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506 03 32-02

SCREW

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 583 95 33-01

BALL BEARING

$31.99

$

In Stock, only 4 left!

0

17

Husqvarna Construction 506 20 18-01

SPACING SLEEVE

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506 28 84-01

SCREEN

$10.99

$

In Stock, Qty 6

0

19

Husqvarna 503 21 53-10

SCREW ITXSCMNew Part

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna Construction 506 29 83-71

SHAFTIncl. 21 - 22

$119.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 506 13 95-11

WASHER

$32.99

$

In Stock, Qty 12

0

22

Husqvarna 506 13 96-01

SCREW EHHFM
(Superseded to 581855201)

$32.99

$

In Stock, Qty 12

0

23

Husqvarna 506 30 97-05

LABELJapan only (New Part)

$17.99

$

Usually ships in 3-10 days

0
