K 3000 Electric - Husqvarna Cut-Off Saw (2007-01) Armature and Pinion Parts Diagram

Cut-Off Saw

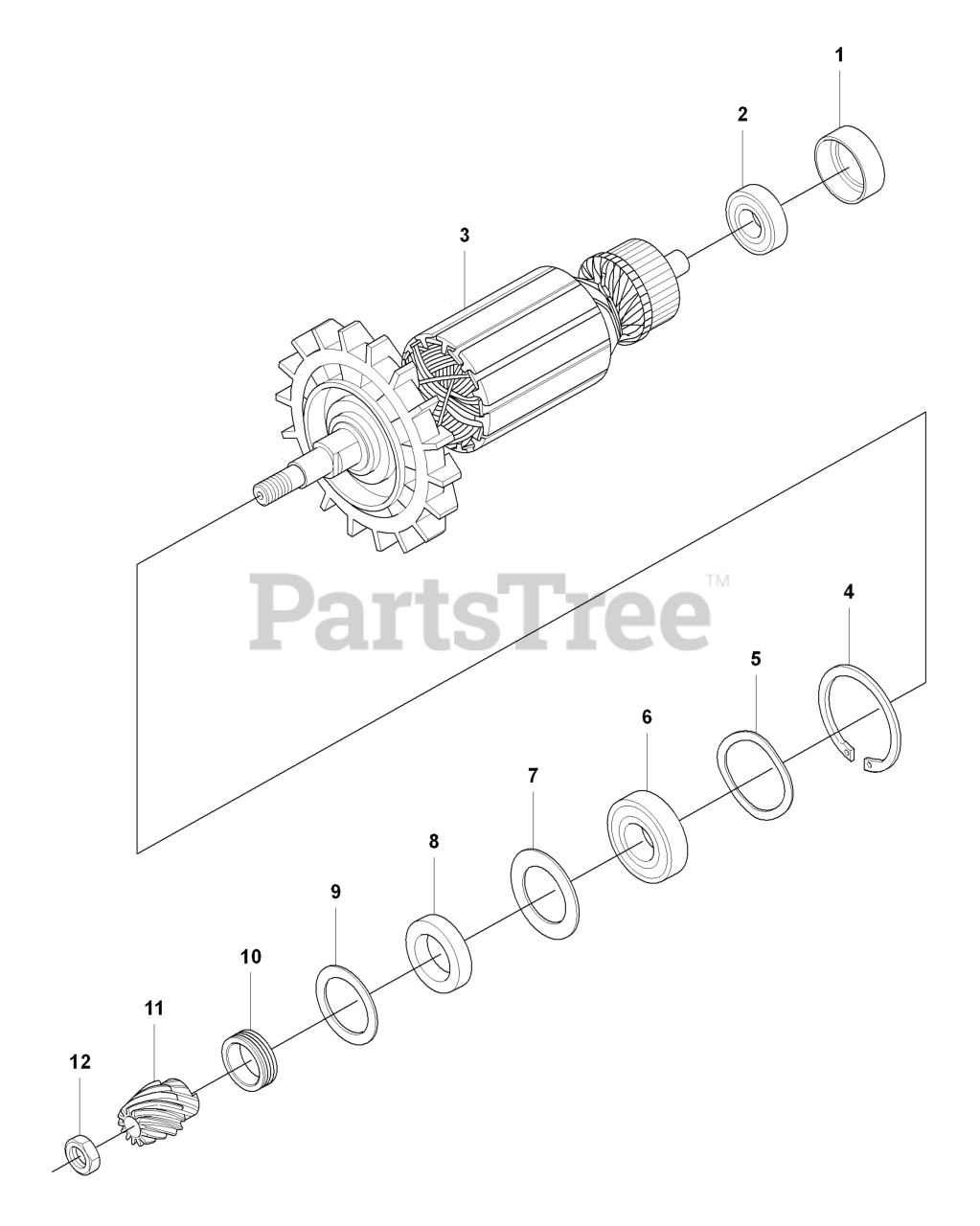

Armature and Pinion Parts Diagram

  • Title

1

Husqvarna 505530314

RUBBER BUSHING

$21.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503250901

BALL BEARING

$53.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506225010

%ARMATURE
(Superseded to 525458402)

Note: 100 - 120V

$

$

Not available

3

Husqvarna 506225020

RP ARMATURE
(Superseded to 525458501)

Note: 230V

$837.99

$

Usually ships in 3-10 days

0

4

Husqvarna 735313310

RETAINING RING SGH 35

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505530351

SPRING WASHER

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 738220227

BALL BEARING
(Superseded to 531073944)

$65.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505530316

SPACER

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 505530341

FELT JOINT

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505530352

SPACER

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 505530319

SPACER

$48.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506098602

PINION

$143.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503221008

NUT LEFT
(Superseded to 523122402)

$

$

Not available
