K 3000 Wet - Husqvarna Cut-Off Saw (2008-05) HOSE Parts Diagram

Cut-Off Saw

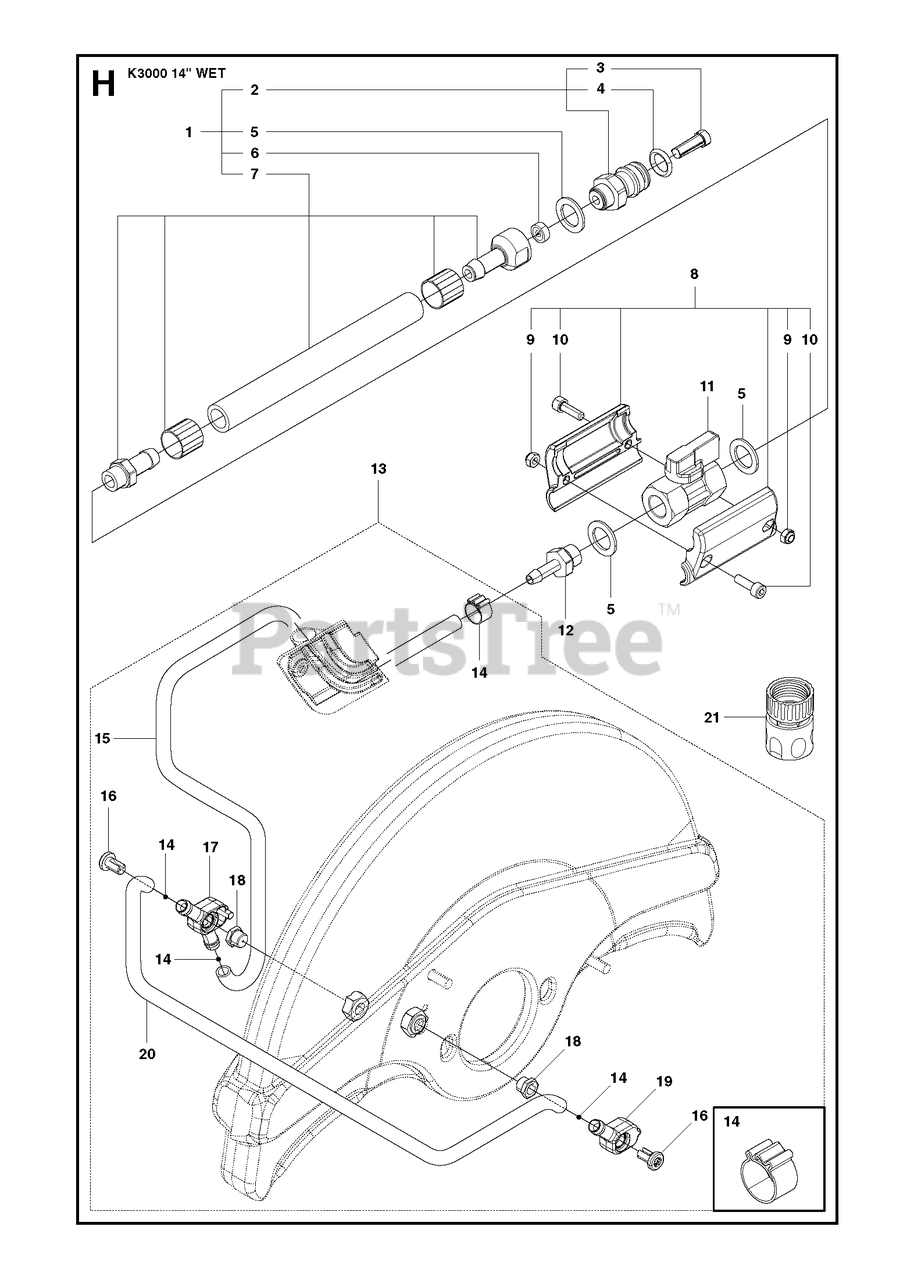

HOSE Parts Diagram

  • Title

1

Husqvarna 502 30 44-04

HOSE ASSYIncl. 2, 5 - 7
(Superseded to 576198701)

$136.99

$

In Stock, only 1 left!

0

2

Husqvarna 510 11 20-01

NIPPLEIncl. 3, 4

$

$

Not available

3

Husqvarna 506 29 88-01

FILTER

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 505 10 35-01

O-RING

$6.49

$

In Stock, Qty 9

0

5

Husqvarna 531 07 42-60

WASHER

$

$

Not available

6

Husqvarna Construction 506 48 61-01

FLOW CONTROL

$40.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510 11 39-01

HOSE KIT
(Superseded to 576198701)

$136.99

$

In Stock, only 1 left!

0

8

Husqvarna Construction 510 20 51-01

BRACKETIncl. 9 - 10

$68.99

$

Usually ships in 3-10 days

0

9

Husqvarna 732 21 14-01

LOCK NUT

$6.49

$

In Stock, Qty 8

0

10

Husqvarna 725 53 29-55

SCREW IHSCM

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 502 61 70-01

VALVE

$21.99

$

In Stock, only 1 left!

0

12

Husqvarna 505 35 32-01

NIPPLE

$

$

Not available

13

Husqvarna 505 09 54-02

HOSE KITIncl. 14 - 20

$94.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506 49 87-01

HOSE CLAMP

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 506 60 68-08

HOSE720 mm
(Superseded to 581893508)

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 504 63 46-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 505 11 55-01

HOUSING

$

$

Not available

18

Husqvarna 504 63 42-01

NIPPLE

$6.99

$

In Stock, only 3 left!

0

19

Husqvarna 504 63 45-01

HOUSING

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506 60 68-07

HOSE300 mm

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503 26 60-03

COUPLERUSA

$10.99

$

In Stock, Qty 17

0

21

Husqvarna 503 26 60-04

COUPLER

$10.99

$

In Stock, Qty 10

0
