K 3600 MK II - Husqvarna Cut-off Saw (2007-01)

Cut-off Saw

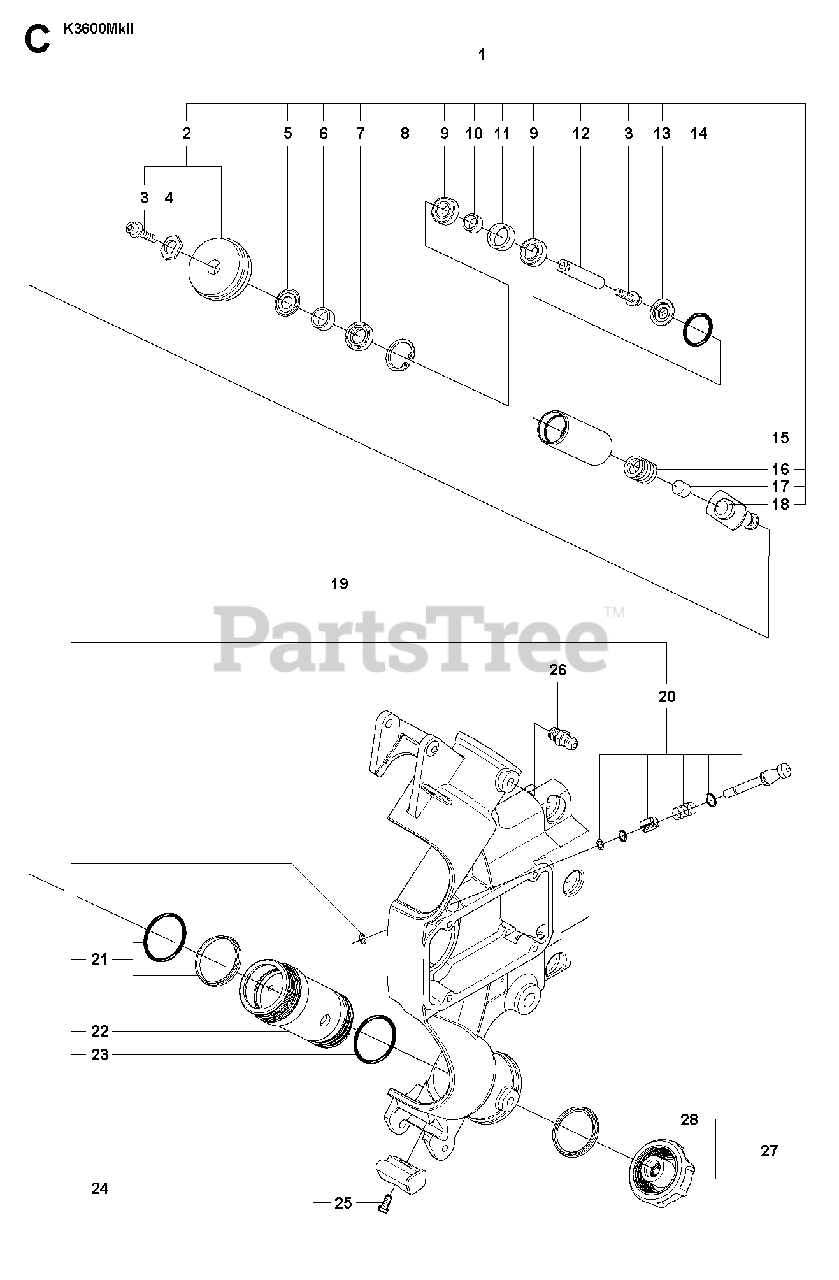

K 3600 MK II - Husqvarna Cut-off Saw (2007-01) > Parts Diagrams (7) > CHASSIS / FRAME

  • Title
506 38 23-01

1

BEARINGIncl. 2, 3, 5 - 18

Part# 506 38 23-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $323.91

506 38 23-02

1

BEARING CAGEIncl. 2, 3, 5 - 18. Sweden

Part# 506 38 23-02

OEM Warranty Repair Part for Husqvarna Construction

Not available

506 35 20-02

2

GUIDE ROLLERIncl. 3, 4

Part# 506 35 20-02

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $77.13

506 35 20-03

2

GUIDE ROLLERIncl. 3, 4. Sweden only

Part# 506 35 20-03

OEM Warranty Repair Part for Husqvarna Construction

Not available

503 20 13-18

3

SCREW IHSCFM

Part# 503 20 13-18

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $2.28

506 30 34-01

4

DRIVER

Part# 506 30 34-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $3.97

506 31 69-01

5

DUST COVER

Part# 506 31 69-01

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $5.25

506 37 93-02

6

SPACING SLEEVE

Part# 506 37 93-02

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $14.58

503 26 20-01

7

SEALING RING

Part# 503 26 20-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $16.40

735 31 28-10

8

CIRCLIP

Part# 735 31 28-10

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $4.46

503 25 24-01

9

BALL BEARING

Part# 503 25 24-01

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $25.70

506 30 33-01

10

SPACING SLEEVE

Part# 506 30 33-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $4.85

506 31 68-01

11

SPACING SLEEVE

Part# 506 31 68-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $5.90

506 30 29-01

12

SHAFT

Part# 506 30 29-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $27.02

506 38 11-01

13

HUB CAP

Part# 506 38 11-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $9.16

740 48 20-12

14

O-RING

Part# 740 48 20-12

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $0.93

506 38 09-01

15

BEARING CAGE

Part# 506 38 09-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $85.17

506 34 76-01

16

COMPRESSION SPRING

Part# 506 34 76-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $9.16

506 30 35-01

17

BUMPER

Part# 506 30 35-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $6.53

506 38 97-01

18

PEN

Part# 506 38 97-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $18.67

506 36 83-05

19

CHASSISIncl. 2, 21, 22, 23, 24

Part# 506 36 83-05

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $942.67

506 30 09-01

20

LOCKING BUTTON

Part# 506 30 09-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $29.17

506 34 39-01

21

WIRE

Part# 506 34 39-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $28.00

544 07 76-01

22

SLEEVE

Part# 544 07 76-01

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $117.38

740 48 25-02

23

O-RING

Part# 740 48 25-02

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $0.77

506 35 19-02

24

WEAR PROTECTIONIncl. 25

Part# 506 35 19-02

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $48.42

725 53 29-55

25

SCREW IHSCM

Part# 725 53 29-55

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $2.31

738 88 10-01

26

LUBRICATION NIPPLE

Part# 738 88 10-01

OEM Warranty Repair Part for Husqvarna

Usually leaves our warehouse in 1 business day

Your price: $8.13

506 38 22-02

27

KNOBIncl. 28

Part# 506 38 22-02

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 1 business day

Your price: $46.67

506 33 65-01

28

SEALING RING

Part# 506 33 65-01

OEM Warranty Repair Part for Husqvarna Construction

Usually leaves our warehouse in 3 to 4 business days

Your price: $5.25
