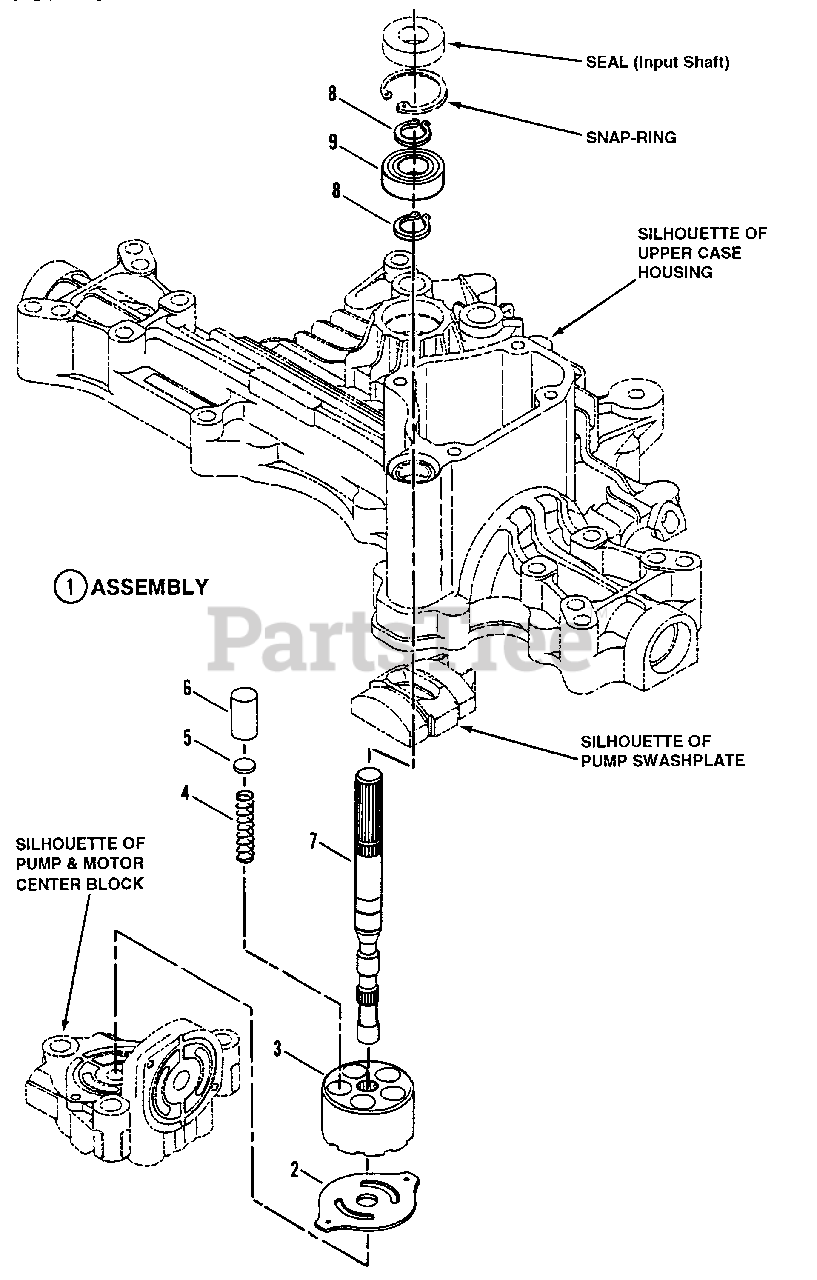

K 55 - Tuff Torq Hydrostatic Transaxle Pump Shaft Assembly Parts Diagram

Hydrostatic Transaxle

Pump Shaft Assembly Parts Diagram

  • Title

1

Snapper 7091456

ASSEMBLY, Cylinder Block

Note: (Includes items 2-6)

$

$

Not available

2

PLATE, Pump (K50)

$

$

Not available

?2A

PLATE, Pump (K55)

$

$

Not available

3

CYLINDER BLOCK, Pump

$

$

Not available

4

SPRING, Piston

$

$

Not available

5

WASHER, Pump Piston

$

$

Not available

6

PISTON, Cylinder Block

$

$

Not available

7

Snapper 7091457

SHAFT, Pump Input

$

$

Not available

8

Snapper 7091458

SNAP-RING

$

$

Not available

9

Snapper 7091459

BEARING, Ball

$

$

Not available
