K 61 - Tuff Torq Transmission (2003-03) Transmission Parts Diagram

Transmission

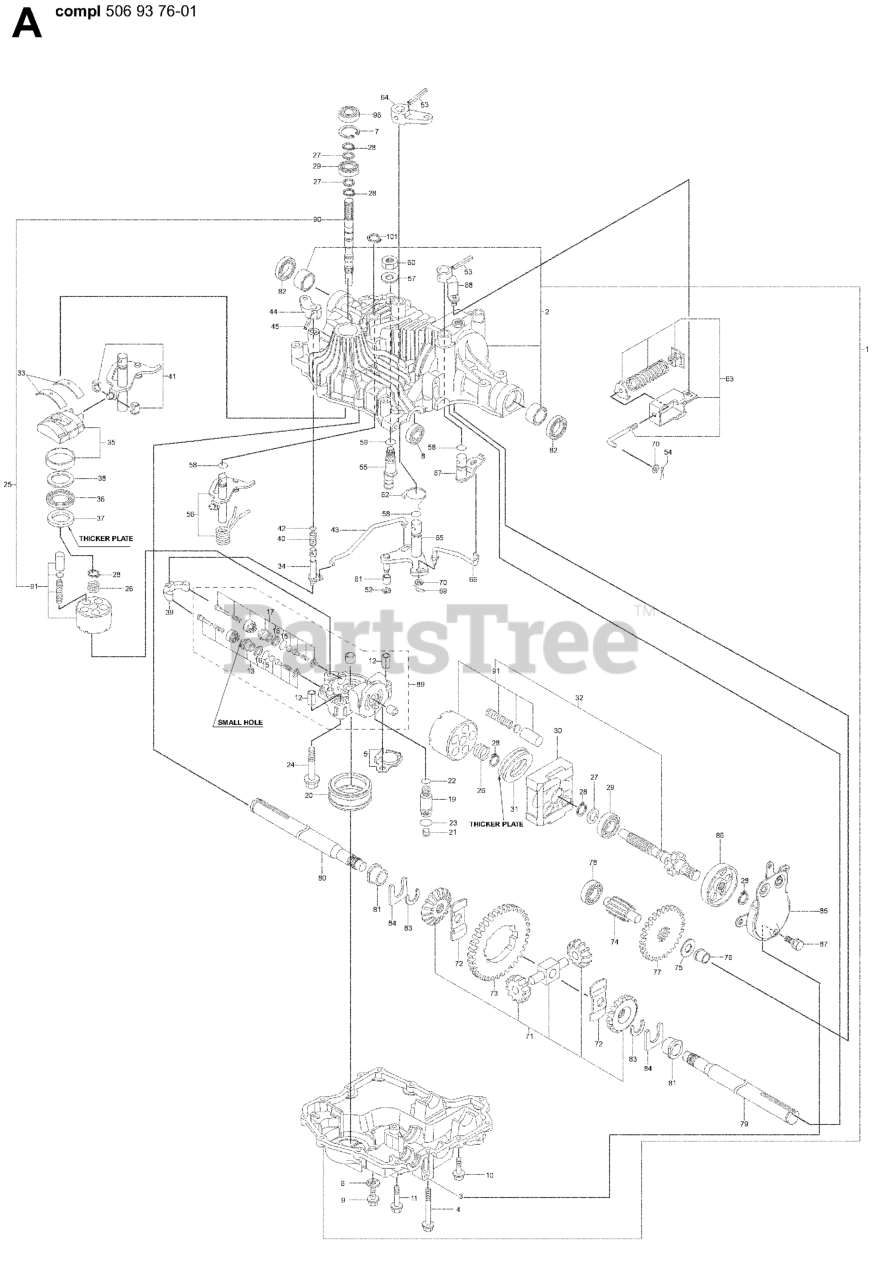

Transmission Parts Diagram

  • Title

1

Husqvarna 506937601

K61 HSQ-EU

$

$

Not available

2

Husqvarna 535414906

UPPER CASE KIT

$

$

Currently unavailable

3

Husqvarna 535414907

LOWER CASE K61

$

$

Currently unavailable

4

Husqvarna 535414683

"SCREW, CAP 8 75"

$

$

Currently unavailable

5

Husqvarna 535414908

MAGNET CASE K60

$

$

Currently unavailable

6

Husqvarna 506957501

SEAL

$

$

Not available

7

Husqvarna 535402850

RING

$

$

Currently unavailable

8

Husqvarna 506957201

SEAL

$

$

Not available

9

Husqvarna 535414743

BOLT

$

$

Currently unavailable

10

Husqvarna 535402828

TAPPING SCREW

$

$

Currently unavailable

11

Husqvarna 535414909

SCREW

$

$

Currently unavailable

12

UNKNOWN

$

$

Not available

13

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

16

UNKNOWN

$

$

Not available

17

UNKNOWN

$

$

Not available

19

Husqvarna 535414910

CONNECTOR

$

$

Currently unavailable

20

Husqvarna 535414716

FILTER K61

$

$

Currently unavailable

21

Husqvarna 535414755

PLUG

$

$

Currently unavailable

22

Husqvarna 535414752

O-RING

$

$

Currently unavailable

23

Husqvarna 535402814

O-RING

$

$

Not available

24

Husqvarna 535414911

BOLT

$

$

Currently unavailable

25

Husqvarna 535414912

PUMP SHAFT

$

$

Currently unavailable

26

Husqvarna 535414685

PUMP SPRING

$

$

Currently unavailable

27

Husqvarna 535414913

WASHER 15x20x1

$

$

Currently unavailable

28

Husqvarna 535402881

SNAP RING S15

$

$

Currently unavailable

29

Husqvarna 535402871

BEARING

$

$

Currently unavailable

30

Husqvarna 535414914

"HOUSING K61,K65"

$

$

Currently unavailable

31

Husqvarna 535414682

"BEARING, THURST"

$

$

Currently unavailable

32

Husqvarna 535414915

MOTOR SHAFT 15

$

$

Currently unavailable

33

Husqvarna 535414686

METAL THRUST

$

$

Currently unavailable

34

Husqvarna 535414916

BYPASS SHAFT

$

$

Currently unavailable

35

Husqvarna 535414917

SWASH PLATE COMP

$

$

Currently unavailable

36

Husqvarna 535414687

THRUST BEARING K81106

$

$

Currently unavailable

37

Husqvarna 535414688

THRUST PLATE A

$

$

Currently unavailable

38

Husqvarna 535414689

THRUST PLATE B

$

$

Currently unavailable

39

Husqvarna 535414918

ARM C

$

$

Currently unavailable

40

Husqvarna 535402847

SPRING 25

$

$

Currently unavailable

41

UNKNOWN

$

$

Not available

42

Husqvarna 535414919

O-RING

$

$

Currently unavailable

43

Husqvarna 535414920

BYPASS ROD

$

$

Currently unavailable

44

Husqvarna 506956101

ARM VALVE RELEASE

$

$

Not available

45

Husqvarna 535414703

ROLL PIN

$

$

Currently unavailable

52

Husqvarna 535414921

SNAP RING

$

$

Currently unavailable

53

Husqvarna 535414922

PIN-ROLL

$

$

Currently unavailable

54

Husqvarna 535414923

PIN 2.0 X 20

$

$

Currently unavailable

55

Husqvarna 535414924

FULCRUM 10

$

$

Currently unavailable

56

UNKNOWN

$

$

Not available

57

Husqvarna 535402813

WASHER

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 535414619

O-RING

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 535402815

O-RING

$

$

Not available

60

Husqvarna 506956601

LOCK NUT

$

$

Not available

61

Husqvarna 535414925

BUSHING B

$

$

Currently unavailable

62

Husqvarna 535414926

RETURN BRAKE SPRING

$

$

Currently unavailable

63

Husqvarna 506956501

BRAKE ROD

$

$

Not available

64

Husqvarna 535414927

BRAKE ARM

$

$

Currently unavailable

65

Husqvarna 535414928

BRAKE SHAFT

$

$

Currently unavailable

66

Husqvarna 535414929

BRAKE ROD

$

$

Currently unavailable

67

Husqvarna 535414930

BRAKE ARM A

$

$

Currently unavailable

68

Husqvarna 506956001

BRAKE ARM B

$

$

Not available

69

Husqvarna 535414931

PIN

$

$

Currently unavailable

70

Husqvarna 535414680

WASHER

$

$

Currently unavailable

71

Husqvarna 535414932

DIFFERENTIAL GEAR KIT

$

$

Currently unavailable

72

Husqvarna 535414933

THRUST WASHER

$

$

Currently unavailable

73

Husqvarna 535414934

FINAL GEAR 55

$

$

Currently unavailable

74

Husqvarna 535414935

FINAL PINION SHAFT

$

$

Currently unavailable

75

Husqvarna 535414936

WASHER

$

$

Currently unavailable

76

Husqvarna 535414937

BUSHING 15

$

$

Currently unavailable

77

Husqvarna 535414938

FINAL GEAR SHAFT 41

$

$

Currently unavailable

78

Husqvarna 535414939

BEARING 6203

$

$

Currently unavailable

79

Husqvarna 535414940

AXLE SHAFT LEFT (H.L.#840)

$

$

Currently unavailable

80

Husqvarna 535414941

AXLE SHAFT RIGHT (H.L.#839)

$

$

Currently unavailable

81

Husqvarna 535414942

BUSHING 22

$

$

Currently unavailable

82

Husqvarna 535402810

SEAL (S 25.4x42x8)

$

$

Not available

83

Husqvarna 535414943

RING 20

$

$

Currently unavailable

84

Husqvarna 535414944

THRUST WASHER

$

$

Currently unavailable

85

Husqvarna 506956301

BRAKE BAND

$

$

Not available

86

Husqvarna 506956401

BRAKE DRUM

$

$

Not available

87

Husqvarna 535414945

BOLT W/WASHEER 8x20

$

$

Currently unavailable

89

Husqvarna 535414693

CENTER CASE KIT

$

$

Currently unavailable

90

UNKNOWN

$

$

Not available

91

UNKNOWN

$

$

Not available

96

UNKNOWN

$

$

Not available

101

UNKNOWN

$

$

Not available

102

Husqvarna 535414946

INPUT SHEAVE

$

$

Not available

506937601

Husqvarna 506937601

Hydrostat

$

$

Not available
