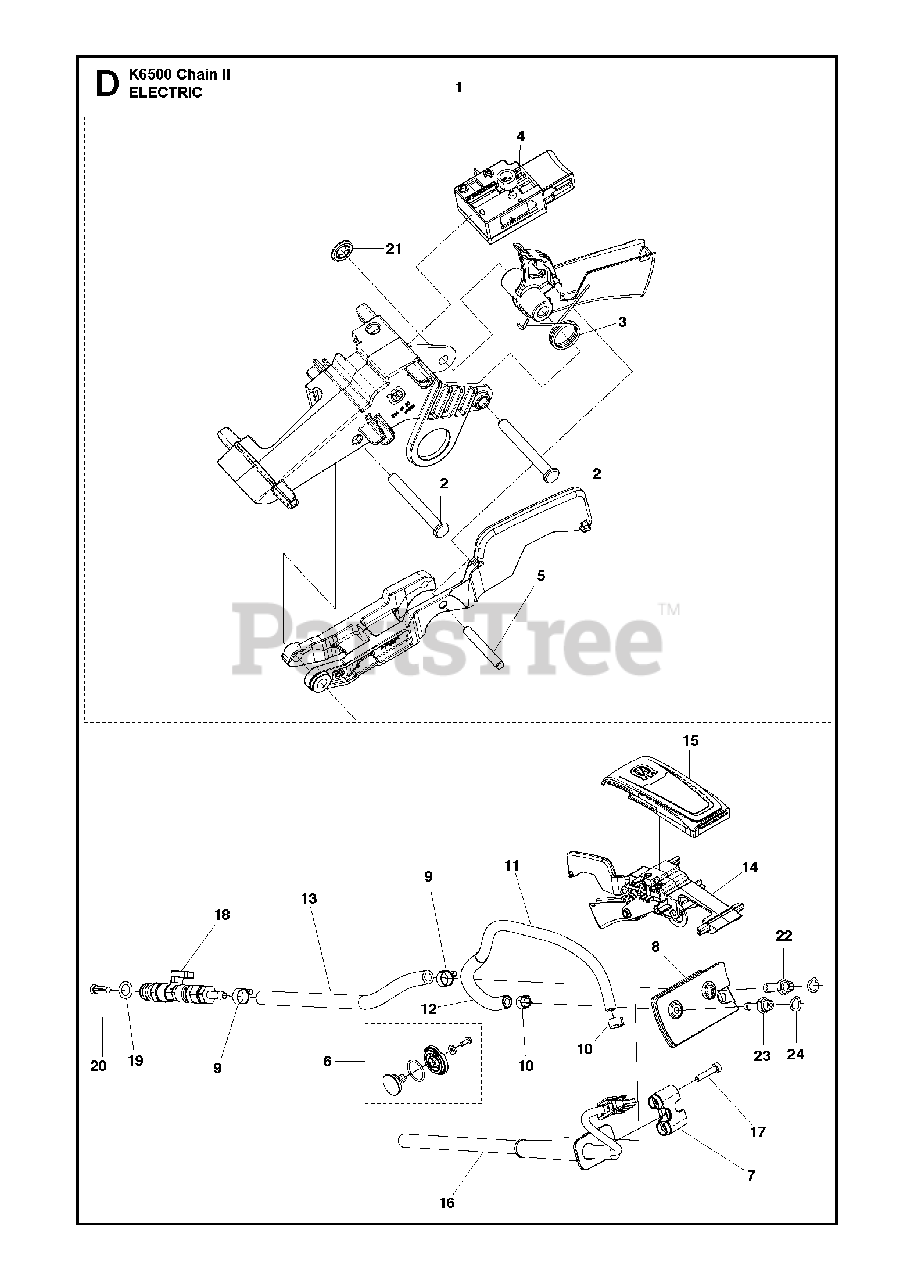

K 6500 Chain II - Husqvarna Cut-Off Saw (2016-12) ELECTRICAL Parts Diagram

Cut-Off Saw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 588 57 61-01

TRIGGER

$

$

Currently unavailable

2

Husqvarna Construction 587 83 57-01

PARALLEL PIN

$

$

Currently unavailable

3

Husqvarna Construction 574 35 42-02

TORSION SPRING

$

$

Currently unavailable

4

Husqvarna Construction 587 22 23-01

TOGGLE SWITCH

$45.62

$

Usually ships in 3-10 days

0

5

Husqvarna 720 12 76-06

PARALLEL PIN

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 585 43 90-02

SPINDLE

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 525 32 28-01

CLIP

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 575 29 54-01

GROMMET

$5.13

$

Usually ships in 3-10 days

0

9

Husqvarna 576 12 97-01

HOSE CLAMP

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 506 49 87-01

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 578 19 81-01

HOSE

$41.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506 35 27-01

PROTECTIVE SPRING

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna Construction 581 89 36-07

HOSE

$

$

Currently unavailable

14

Husqvarna Construction 588 57 61-01

TRIGGER

$

$

Currently unavailable

15

Husqvarna Construction 585 41 21-03

DISPLAY

$

$

Currently unavailable

16

Husqvarna Construction 501 07 14-01

WIRING ASSY

$

$

Currently unavailable

17

Husqvarna 504 90 94-25

SCREW ITXSCT

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 587 43 78-01

VALVE ASSY

$161.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505 10 35-01

O-RING
(Superseded to 740421000)

$4.99

$

In Stock, Qty 18

0

20

Husqvarna 506 29 88-01

FILTER
(Superseded to 589780701)

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 735 58 35-01

WASHER

$5.49

$

In Stock, only 2 left!

0

22

Husqvarna Construction 501 28 29-02

NIPPLE

$

$

Currently unavailable

23

Husqvarna Construction 501 28 29-01

NIPPLE

$

$

Currently unavailable

24

Husqvarna 740 42 06-00

O-RING

$3.49

$

In Stock, only 2 left!

0
