K 6500 Ring II - Husqvarna Cut-Off Saw (2016-12) CHASSIS / FRAME Parts Diagram

Cut-Off Saw

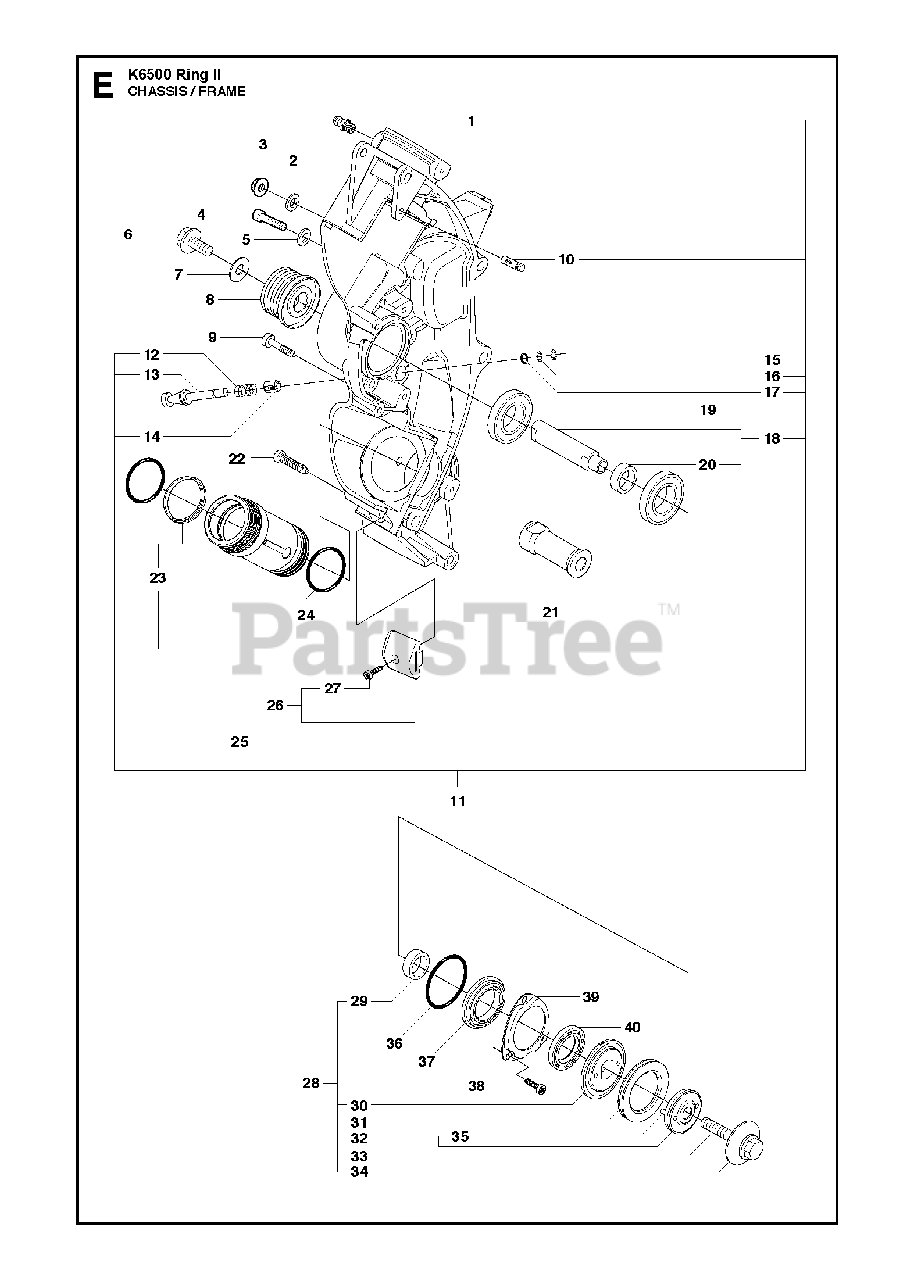

CHASSIS / FRAME Parts Diagram

  • Title

1

Husqvarna 738 88 10-01

LUBRICATION NIPPLE

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503 23 04-01

WASHER

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 503 22 00-01

HEXAGON NUT

$4.99

$

In Stock, Qty 17

0

4

Husqvarna Construction 725 54 59-05

SCREW IHSCM

$10.99

$

In Stock, Qty 9

0

5

Husqvarna 503 23 04-03

WASHER

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 503 20 00-45

SCREW EHHFM

$5.99

$

In Stock, Qty 20+

0

7

Husqvarna 503 23 01-16

WASHER

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna Construction 584 27 12-01

PULLEY

$42.47

$

Usually ships in 3-10 days

0

9

Husqvarna 503 21 53-26

SCREW ITXSCM

$4.99

$

In Stock, Qty 13

0

10

Husqvarna 721 12 52-70

GROOVED PIN
(Superseded to 542756120)

$304.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 522 65 75-05

CHASSIS

$1235.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 506 25 73-01

COMPRESSION SPRING

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 506 32 80-01

LOCKING BUTTON

$22.99

$

In Stock, only 2 left!

0

14

Husqvarna 721 44 06-00

SPRING PIN

$7.49

$

In Stock, Qty 5

0

15

Husqvarna 735 31 08-00

CIRCLIP

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 503 23 01-12

WASHER

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 503 26 30-22

O-RING

$5.99

$

In Stock, Qty 5

0

18

Husqvarna Construction 506 35 15-02

DRIVE SHAFT

$

$

Not available

19

Husqvarna 583 95 33-01

BALL BEARING

$33.99

$

In Stock, only 2 left!

0

20

Husqvarna Construction 506 37 50-02

SPACER

$11.99

$

In Stock, only 2 left!

0

21

Husqvarna Construction 581 70 98-01

SPACER

$27.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503 21 53-20

SCREW ITXSCM

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna Construction 506 34 39-01

WIRE

$49.99

$

In Stock, only 2 left!

0

24

Husqvarna Construction 740 48 25-02

O-RING

$8.99

$

In Stock, only 2 left!

0

25

Husqvarna 544 07 76-01

SLEEVE

$

$

Not available

26

Husqvarna Construction 506 35 19-03

WEAR PROTECTION

$79.99

$

Usually ships in 3-10 days

0

27

Husqvarna 505 57 41-16

SCREW ITXSCM

$4.99

$

In Stock, only 3 left!

0

28

Husqvarna Construction 506 35 23-04

GEAR WHEEL ASSY

$

$

Not available

29

Husqvarna Construction 506 37 49-01

SLEEVE

$24.99

$

In Stock, only 2 left!

0

30

Husqvarna Construction 506 37 46-02

FLANGE WASHER

$124.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506 17 83-04

GEAR WHEEL

$51.99

$

In Stock, only 1 left!

0

32

Husqvarna Construction 506 31 22-02

DRIVER

$64.99

$

In Stock, only 2 left!

0

33

Husqvarna 506 13 96-01

SCREW EHHFM
(Superseded to 581855201)

$35.99

$

In Stock, Qty 6

0

34

Husqvarna Construction 506 13 95-11

WASHER

$35.99

$

In Stock, Qty 6

0

35

Husqvarna 721 42 52-50

SPRING PIN

$4.99

$

In Stock, Qty 9

0

36

Husqvarna 740 42 24-00

O-RING

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna Construction 506 37 48-01

SEALING

$35.99

$

In Stock, only 2 left!

0

38

Husqvarna 503 21 53-12

SCREW ITXSCM

$4.99

$

In Stock, only 2 left!

0

39

Husqvarna Construction 506 37 47-01

SEALING COLLAR

$18.99

$

Usually ships in 3-10 days

0

40

Husqvarna 503 26 21-01

SEALING RING

$38.99

$

In Stock, only 4 left!

0
