K 750 - Husqvarna Cut-Off Saw (2007-01) Belt Guard and Bearing Housing Parts Diagram

Cut-Off Saw

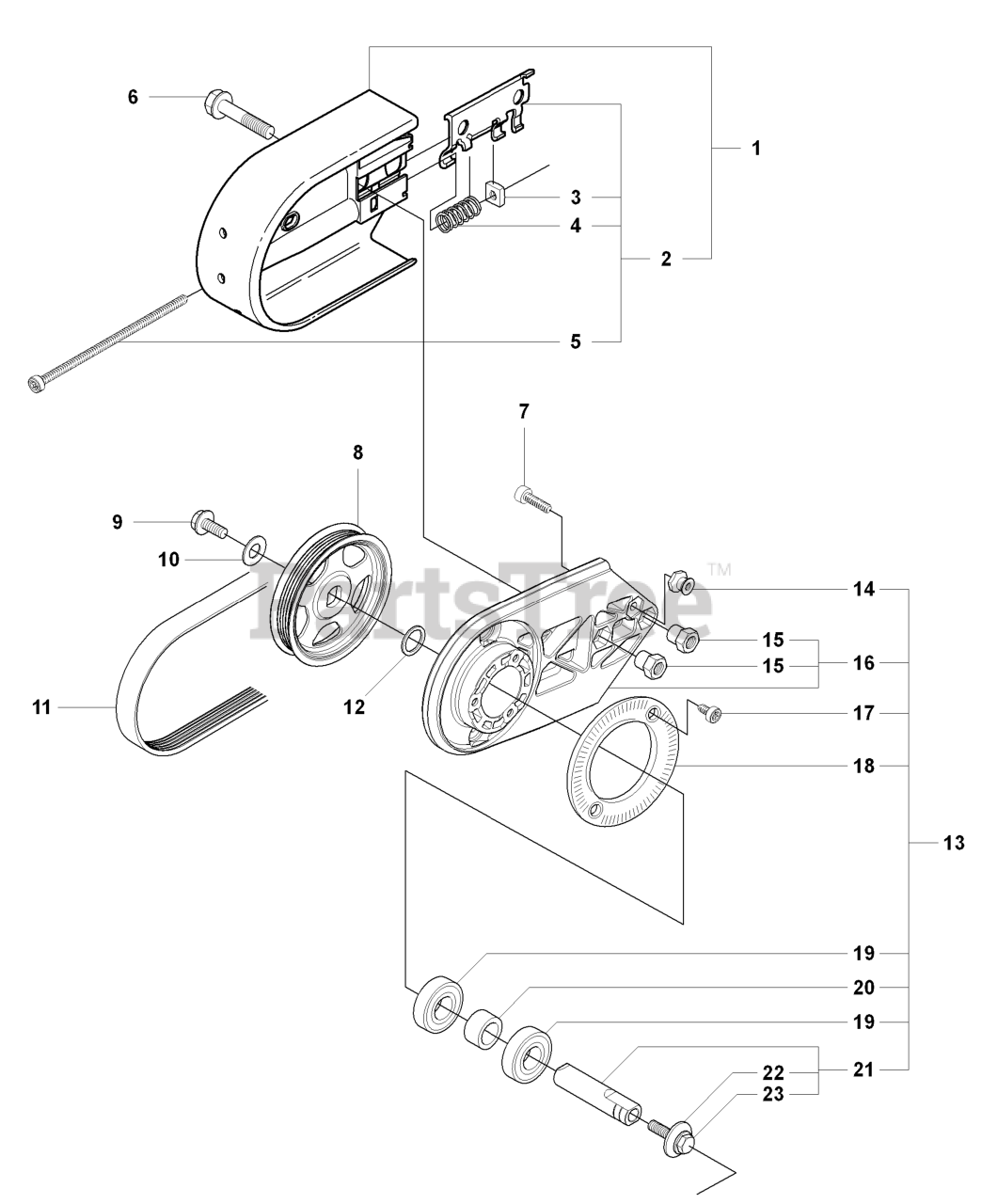

Belt Guard and Bearing Housing Parts Diagram

  • Title

1

Husqvarna 506393602

BELT GUARD
(Superseded to 503895438)

Note: Incl. 2

$

$

Not available

2

Husqvarna 506266604

TENSIONER

Note: Incl. 3, 4, 5

$35.99

$

In Stock, Qty 7

0

3

Husqvarna 506409301

NUT

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 506266801

SPRING

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503207275

SCREW
(Superseded to 503207205)

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506284402

BOLT
(Superseded to 506284401)

$10.99

$

In Stock, Qty 20+

0

7

Husqvarna 725532955

SCREW MC6S 5X16

$3.99

$

In Stock, Qty 15

0

8

Husqvarna 506369601

%PULLEY
(Superseded to 544440602)

$

$

Not available

9

Husqvarna 503200045

SCREW

$5.99

$

In Stock, Qty 6

0

10

Husqvarna 503230116

WASHER

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 544908402

BELT

$48.99

$

In Stock, Qty 7

0

12

Husqvarna 503230104

WASHER 15X21

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 506394203

HOUSING
(Superseded to 581351710)

Note: Incl. 14, 16, 17, 18, 19, 20, 21

$191.99

$

In Stock, only 3 left!

0

14

Husqvarna 506143201

CATCH

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506287301

NUT

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 506394211

HOUSING
(Superseded to 581351707)

Note: Incl. 15

$

$

Not available

17

Husqvarna 503215310

SCREW

$3.99

$

In Stock, Qty 16

0

18

Husqvarna 506288401

FLANGE

$10.99

$

In Stock, Qty 11

0

19

Husqvarna 503252101

BALL BEARING

$39.99

$

In Stock, only 2 left!

0

20

Husqvarna 506070801

SPACER

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 506298363

SHAFT

Note: Incl. 22, 23

$85.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506139511

WASHER
(Superseded to 581855201)

$35.99

$

In Stock, Qty 8

0

23

Husqvarna 506139601

SCREW
(Superseded to 581855201)

$35.99

$

In Stock, Qty 8

0
