K 750 - Husqvarna Cut-Off Saw (2007-01) Carburettor and Gasket Kit Carb Parts Diagram

Cut-Off Saw

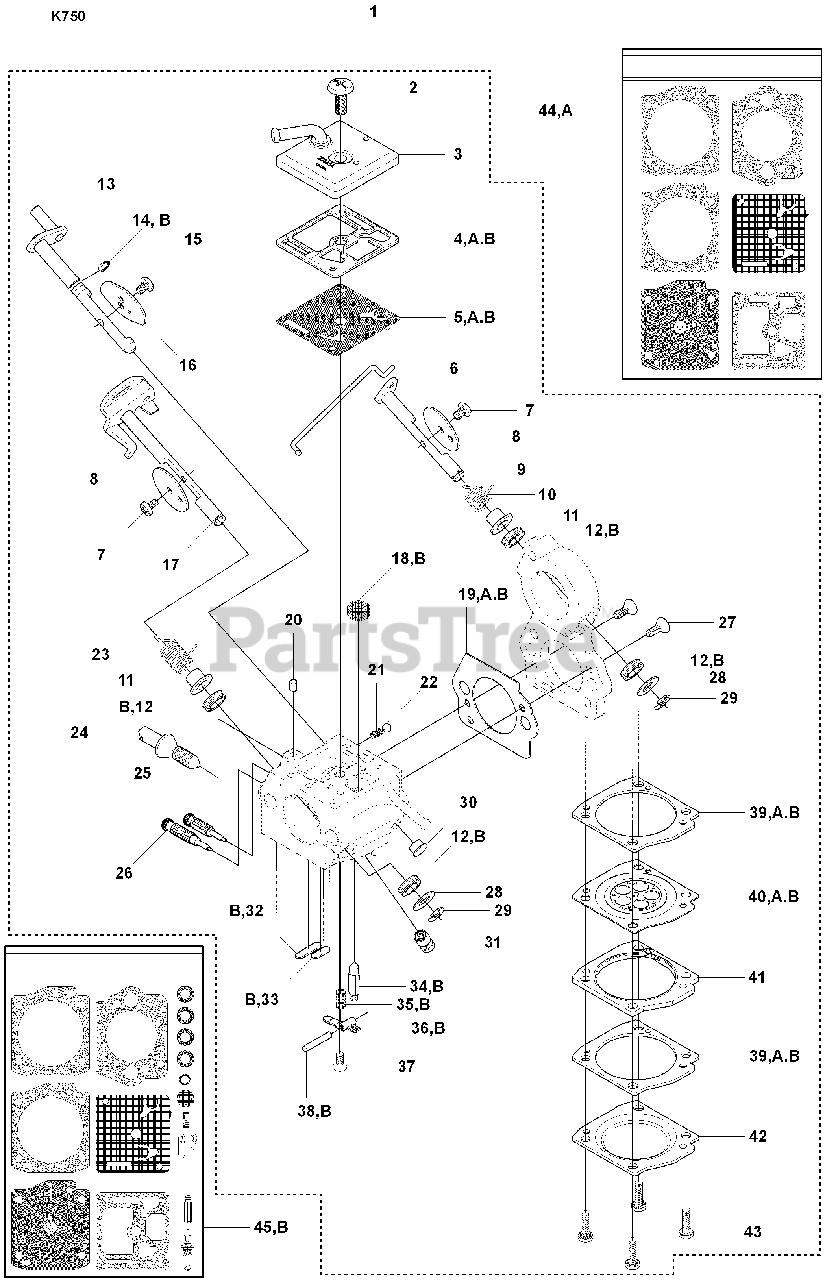

Carburettor and Gasket Kit Carb Parts Diagram

  • Title

1

Husqvarna 503283209

CARBURETTOR

Note: Zama C3-EL29, Incl. 2 - 43

$

$

Not available

2

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

3

Husqvarna 544836401

PUMP COVER

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503616601

GASKET PUMP

$5.49

$

In Stock, Qty 6

0

5

Husqvarna 506396001

DIAPHRAGM PUMP
(Superseded to 537380201)

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 506396501

ROD

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544082201

SCREW

$

$

Not available

8

Husqvarna 537177001

VALVE

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506397101

SHAFT ASSY

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506397501

SPRING

$5.49

$

Usually ships in 3-10 days

0

11

Husqvarna 506395401

COLLAR

$

$

Not available

12

Husqvarna 506396401

QUAD RING

$

$

Not available

13

Husqvarna 506397301

SHAFT ASSY CHOKE

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506399001

O-RING

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503481801

SCREW

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 506397801

VALVE

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 506397401

SHAFT ASSY

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 4 left!

0

19

Husqvarna 506395801

GASKET

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503481101

PIECE

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537012601

SPRING

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 7

0

23

Husqvarna 544836501

SPRING

$8.49

$

Usually ships in 3-10 days

0

24

Husqvarna 506397201

SCREW

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506397001

SCREW

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506396901

SCREW

$21.99

$

Usually ships in 3-10 days

0

27

Husqvarna 537385101

SCREW

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 506397901

WASHER

$

$

Not available

29

Husqvarna 537385201

E-CLIP

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 506399101

PLUG

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506396101

NOZZLE ASSY

$28.99

$

In Stock, only 1 left!

0

32

Husqvarna 503535601

PLUG WELCH

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 537177801

PLUG

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 537176201

VALVE

$24.99

$

In Stock, only 1 left!

0

35

Husqvarna 537273401

SPRING

$

$

Not available

36

Husqvarna 537176401

LEVER

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 544082101

SCREW

$4.49

$

Usually ships in 3-10 days

0

38

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

39

Husqvarna 506396201

GASKET

$8.49

$

Usually ships in 3-10 days

0

40

Husqvarna 506395701

DIAPHRAGM ASSY

$26.99

$

Usually ships in 3-10 days

0

41

Husqvarna 506395501

COVER

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 506395601

COVER

$13.99

$

Usually ships in 3-10 days

0

43

Husqvarna 506396601

SCREW

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 506409901

GASKET KIT

Note: Incl. 4, 5, 19, 39, 40

$25.99

$

In Stock, Qty 8

0

45

Husqvarna 506410001

GASKET KIT CARB

Note: Incl. 4, 5, 12, 14, 32, 33, 34, 35, 36, 38, 39, 40

$85.99

$

Usually ships in 3-10 days

0
