K 750 - Husqvarna Cut-Off Saw (2007-01) Cylinder Assy and Muffler Kit and Muffler and Gasket Kit Parts Diagram

Cut-Off Saw

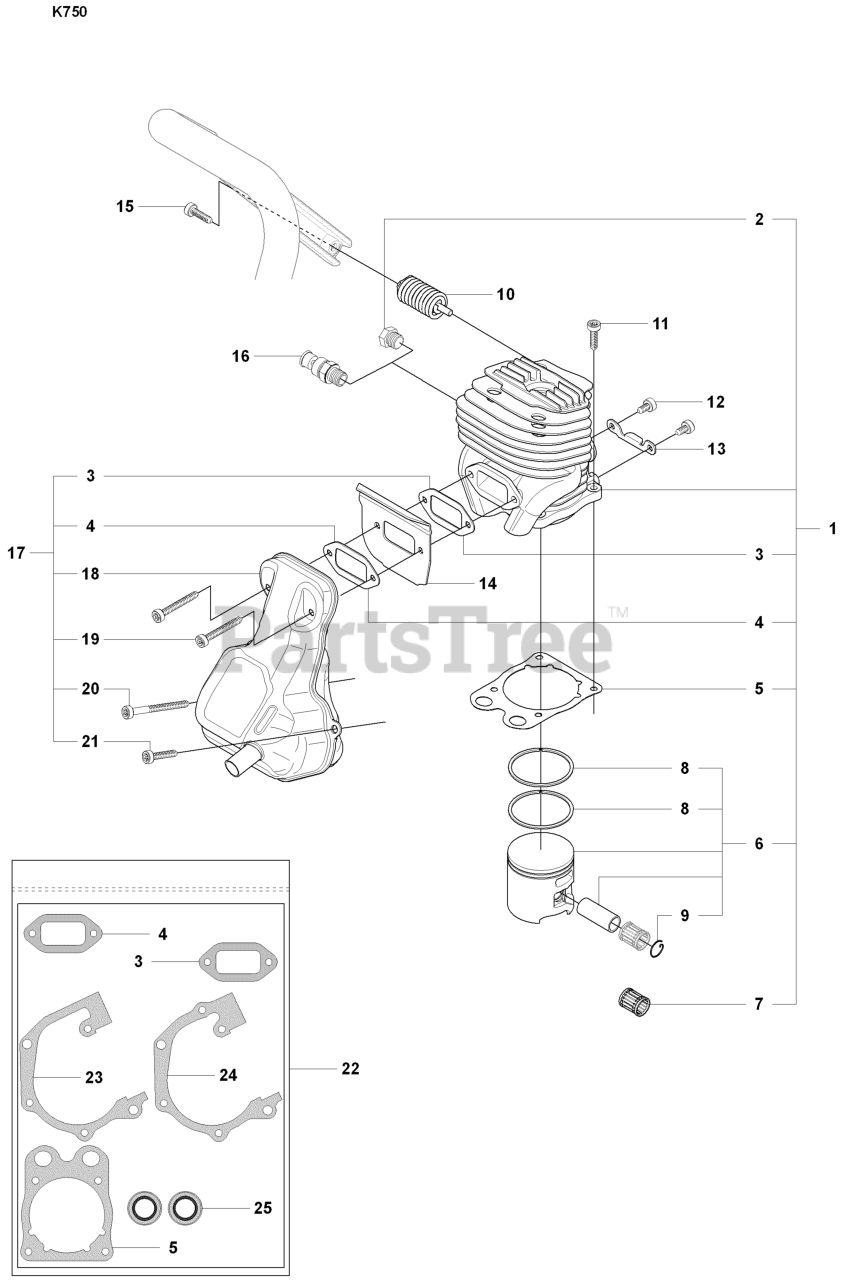

Cylinder Assy and Muffler Kit and Muffler and Gasket Kit Parts Diagram

  • Title

1

Husqvarna 506386171

CYLINDER AND PISTON CPL.
(Superseded to 581476103)

Note: Incl. 2, 3, 4, 5, 6, 7

$527.99

$

In Stock, only 1 left!

0

2

Husqvarna 503552201

CYLINDER PLUG

$12.99

$

In Stock, only 4 left!

0

3

Husqvarna 506412301

GASKET

$10.99

$

In Stock, Qty 5

0

4

Husqvarna 506376902

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, Qty 9

0

5

Husqvarna 506376702

CYLINDER BASE GASKET

$16.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506372401

PISTON CPL.
(Superseded to 506372403)

Note: Incl. 8, 9

$194.99

$

In Stock, only 2 left!

0

7

Husqvarna 503255601

SUPPORT BUSHING
(Superseded to 577572401)

$17.99

$

In Stock, only 1 left!

0

8

Husqvarna 503289047

%PISTON RING
(Superseded to 542160992)

$107.99

$

Usually ships in 3-10 days

0

9

Husqvarna 737431200

WRIST PIN CLIP

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506389102

RP VIBRATION ABSORBER
(Superseded to 505424501)

$39.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503215325

SCREW

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 503215316

SCREW

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 506368801

BRACKET

$7.49

$

In Stock, Qty 12

0

14

Husqvarna 506375802

PLATE
(Superseded to 588915101)

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503215420

SCREW

$3.99

$

In Stock, only 4 left!

0

16

Husqvarna 503715301

DECOMPRESSION VALVE

$41.99

$

In Stock, only 2 left!

0

17

Husqvarna 544001402

MUFFLER
(Superseded to 587668702)

Note: Incl. 3, 4, 18, 19, 20, 21

$95.99

$

In Stock, only 2 left!

0

18

Husqvarna 506364203

%MUFFLER
(Superseded to 587668702)

$95.99

$

In Stock, only 2 left!

0

19

Husqvarna 503215341

SCREW

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 503215356

SCREW

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 503215321

SCREW

$3.99

$

In Stock, Qty 14

0

22

Husqvarna 506385304

GASKET KIT
(Superseded to 581357402)

Note: Incl. 4, 5, 6, 23, 24, 25

$39.99

$

In Stock, only 2 left!

0

23

Husqvarna 506377002

GASKET

Note: 5 bolts crakcase

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506377003

GASKET

Note: 6 bolts crakcase

$8.99

$

In Stock, Qty 5

0

25

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 17

0
