K 750 - Husqvarna Cut-Off Saw (2007-01) Cylinder Assy and Muffler Kit and Muffler and Gasket Kit Parts Diagram

Cut-Off Saw

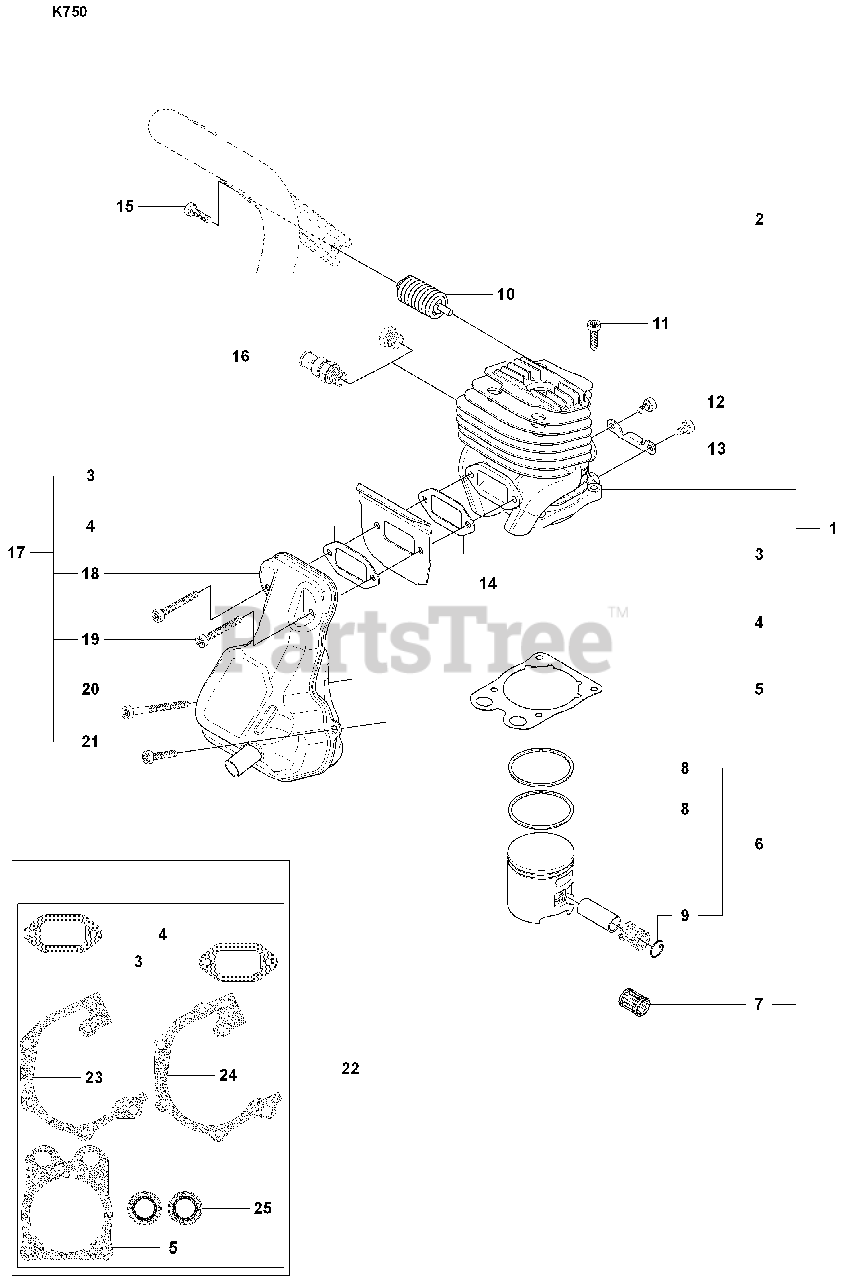

Cylinder Assy and Muffler Kit and Muffler and Gasket Kit Parts Diagram

  • Title

1

Husqvarna 506386171

CYLINDER ASSY
(Superseded to 581476103)

Note: Incl. 2, 3, 4, 5, 6, 7

$718.99

$

In Stock, only 2 left!

0

2

Husqvarna 503552201

PLUG

$12.99

$

In Stock, only 1 left!

0

3

Husqvarna 506412301

GASKET

$10.99

$

In Stock, Qty 6

0

4

Husqvarna 506376902

GASKET MUFFLER
(Superseded to 588932501)

$10.99

$

In Stock, Qty 13

0

5

Husqvarna 506376702

GASKET CYLINDER BASE

$15.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506372401

PISTON ASSY
(Superseded to 506372403)

Note: Incl. 8, 9

$188.99

$

In Stock, only 2 left!

0

7

Husqvarna 503255601

NEEDLE BEARING

$17.99

$

In Stock, Qty 7

0

8

Husqvarna 503289047

PISTON RING
(Superseded to 522990101)

$32.99

$

In Stock, only 4 left!

0

9

Husqvarna 737431200

RETAINING

$3.49

$

In Stock, only 4 left!

0

10

Husqvarna 506389102

VIB.INSULATOR
(Superseded to 505424501)

$36.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503215325

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 503215316

SCREW

$3.49

$

In Stock, Qty 10

0

13

Husqvarna 506368801

BRACKET

$6.99

$

In Stock, only 2 left!

0

14

Husqvarna 506375802

COOLING PLATE
(Superseded to 588915101)

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503215420

SCREW

$3.49

$

In Stock, Qty 11

0

16

Husqvarna 503715301

DECOMPRESSION VALVE

$37.99

$

In Stock, Qty 13

0

17

Husqvarna 544001402

MUFFLER KIT
(Superseded to 587668702)

Note: Incl. 3, 4, 18, 19, 20, 21

$86.99

$

In Stock, only 2 left!

0

18

Husqvarna 506364203

MUFFLER
(Superseded to 587668702)

$86.99

$

In Stock, only 2 left!

0

19

Husqvarna 503215341

SCREW

$3.49

$

In Stock, only 2 left!

0

20

Husqvarna 503215356

SCREW

$6.99

$

In Stock, Qty 20+

0

21

Husqvarna 503215321

SCREW

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 506385304

GASKET KIT
(Superseded to 581357402)

Note: Incl. 4, 5, 6, 23, 24, 25

$36.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506377002

GASKET CRANKCASE

Note: 5 bolts crakcase

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506377003

GASKET CRANKCASE

Note: 6 bolts crakcase

$8.99

$

In Stock, Qty 9

0

25

Husqvarna 503260204

SEALING RING

$16.99

$

In Stock, Qty 20+

0
