K 750 - Husqvarna Cut-Off Saw (2007-01) Starter Parts Diagram

Cut-Off Saw

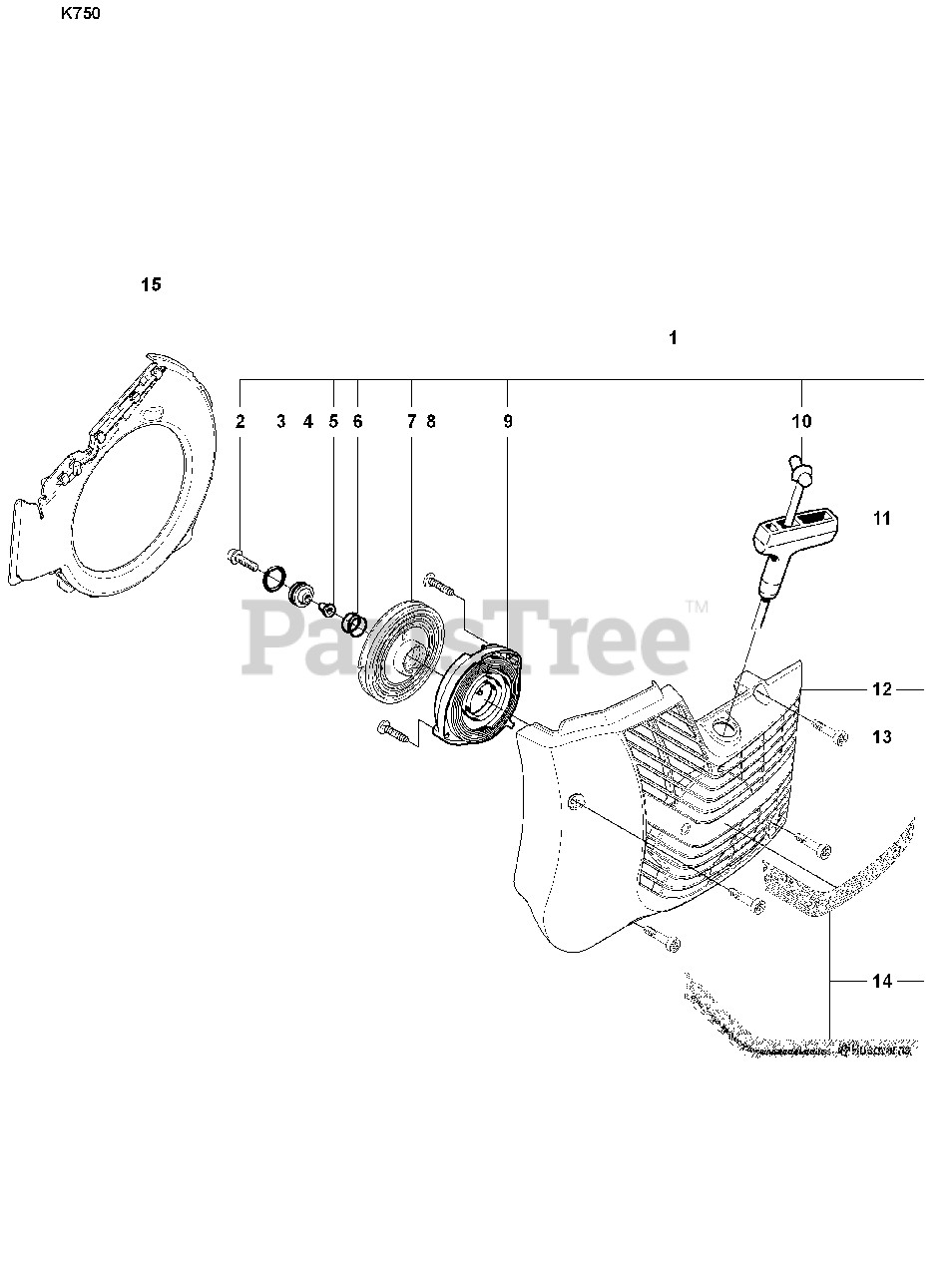

Starter Parts Diagram

  • Title

1

Husqvarna 506385612

STARTER
(Superseded to 506385613)

Note: Incl. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14

$

$

Not available

2

Husqvarna 503216722

SCREW

$3.49

$

In Stock, Qty 10

0

3

Husqvarna 740431300

O-RING

$8.49

$

In Stock, Qty 5

0

4

Husqvarna 506251401

GROMMET
(Superseded to 510000801)

$8.99

$

In Stock, only 3 left!

0

5

Husqvarna 506263101

SPACING SLEEVE

$12.99

$

In Stock, only 3 left!

0

6

Husqvarna 506253001

COMPRESSION SPRING

$6.99

$

In Stock, Qty 5

0

7

Husqvarna 506258102

STARTER PULLEY

$

$

Not available

8

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 11

0

9

Husqvarna 506258901

RECOIL SPRING

$

$

Not available

10

Husqvarna 506335615

STARTER CORD

$22.99

$

In Stock, only 2 left!

0

10

Husqvarna 506335650

STARTER CORD

Note: 50m Coil

$613.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503127901

STARTER HANDLE
(Superseded to 584257903)

$8.49

$

In Stock, only 2 left!

0

12

Husqvarna 506369203

STARTER COVER

$74.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503215321

SCREW

$3.49

$

In Stock, Qty 13

0

14

Husqvarna 544890801

LABEL
(Superseded to 544890802)

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544383901

AIR CONDUCTOR

$8.99

$

Usually ships in 3-10 days

0
