K 750 - Husqvarna Cut-Off Saw (2007-07) Clutch Parts Diagram

Cut-Off Saw

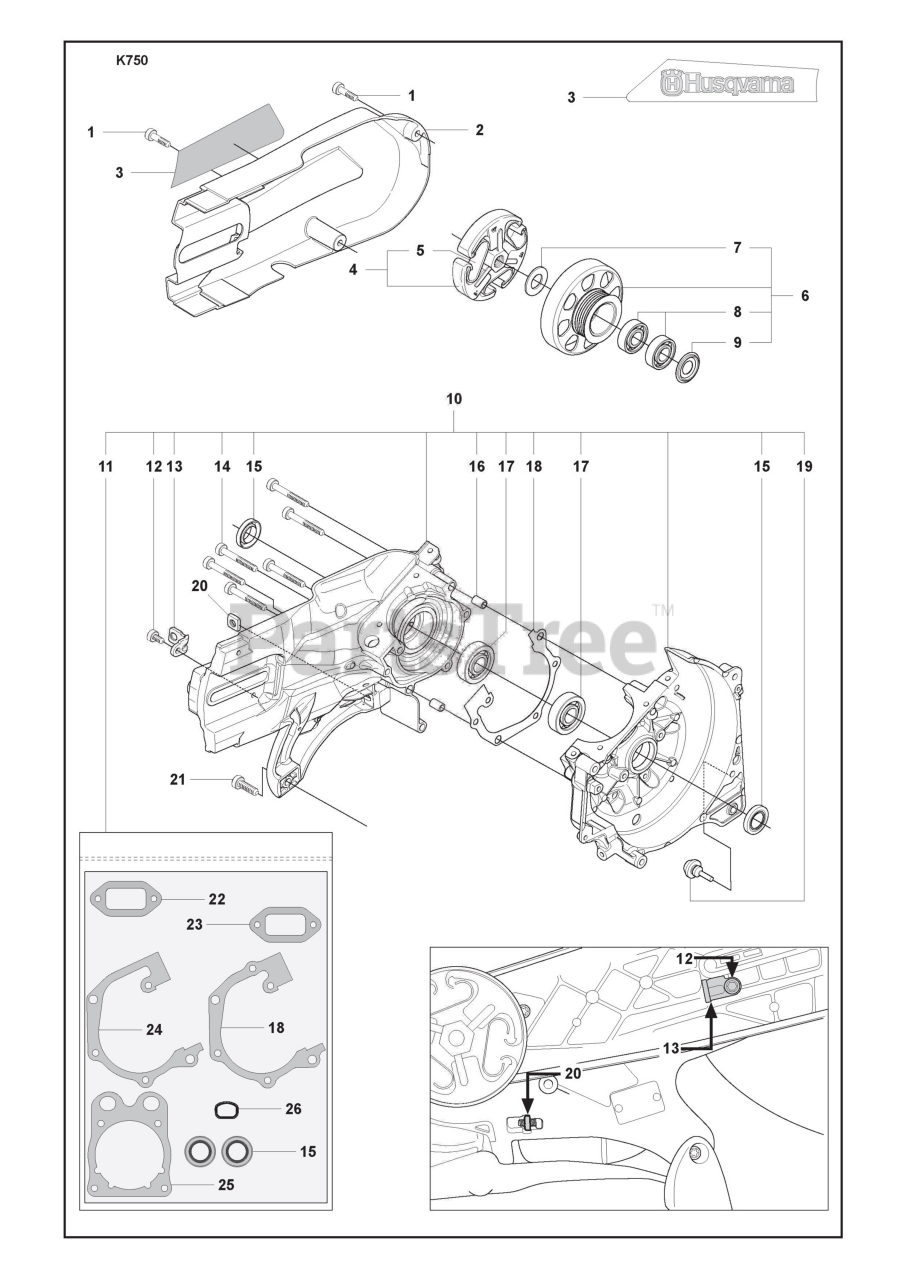

Clutch Parts Diagram

  • Title

1

Husqvarna 503215321

SCREW

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 506369103

BELT GUARD
(Superseded to 581485901)

$49.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544891101

LABEL

$9.99

$

In Stock, only 1 left!

0

4

Husqvarna 503744404

CLUTCH ASSY
(Superseded to 503744406)

Note: Incl. 5

$142.99

$

In Stock, Qty 17

0

5

Husqvarna 503744301

CLUTCH SPRING

$8.99

$

In Stock, only 2 left!

0

6

Husqvarna 502289202

DRIVING PULLEY ASSY
(Superseded to 590805901)

Note: Incl. 7 - 9

$74.99

$

In Stock, Qty 12

0

7

Husqvarna 503230070

WASHER STEEL
(Superseded to 503230073)

$11.99

$

In Stock, only 2 left!

0

8

Husqvarna 738210104

BALL BEARING

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506316901

DUST COVER

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544889006

CRANKCASE ASSY
(Superseded to 575825901)

Note: Incl. 11 - 19

$

$

Not available

11

Husqvarna 506385305

GASKET KIT
(Superseded to 581357402)

$36.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503200312

SCREW

$5.49

$

Usually ships in 3-10 days

0

13

Husqvarna 544007801

BRACKET

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503215341

SCREW

$3.49

$

In Stock, only 2 left!

0

15

Husqvarna 503260204

SEALING RING

$16.99

$

In Stock, Qty 20+

0

16

Husqvarna 501270801

GUIDE BUSHING
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

17

Husqvarna 738220225

BALL BEARING

$27.99

$

In Stock, only 4 left!

0

18

Husqvarna 506377003

GASKET CRANKCASE

$8.99

$

In Stock, Qty 9

0

19

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 9

0

20

Husqvarna 503226504

NUT

$5.49

$

In Stock, Qty 20+

0

21

Husqvarna 544061201

SCREW

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 506412301

GASKET

$10.99

$

In Stock, Qty 6

0

23

Husqvarna 506376902

GASKET MUFFLER
(Superseded to 588932501)

$10.99

$

In Stock, Qty 13

0

24

Husqvarna 506377002

GASKET CRANKCASE

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506376701

CYLINDER BASE GASKET

$6.99

$

In Stock, only 3 left!

0

26

Husqvarna 544219302

INSERT

$5.49

$

In Stock, Qty 12

0
