K 750 - Husqvarna Cut-Off Saw (2007-07) Valves Parts Diagram

Cut-Off Saw

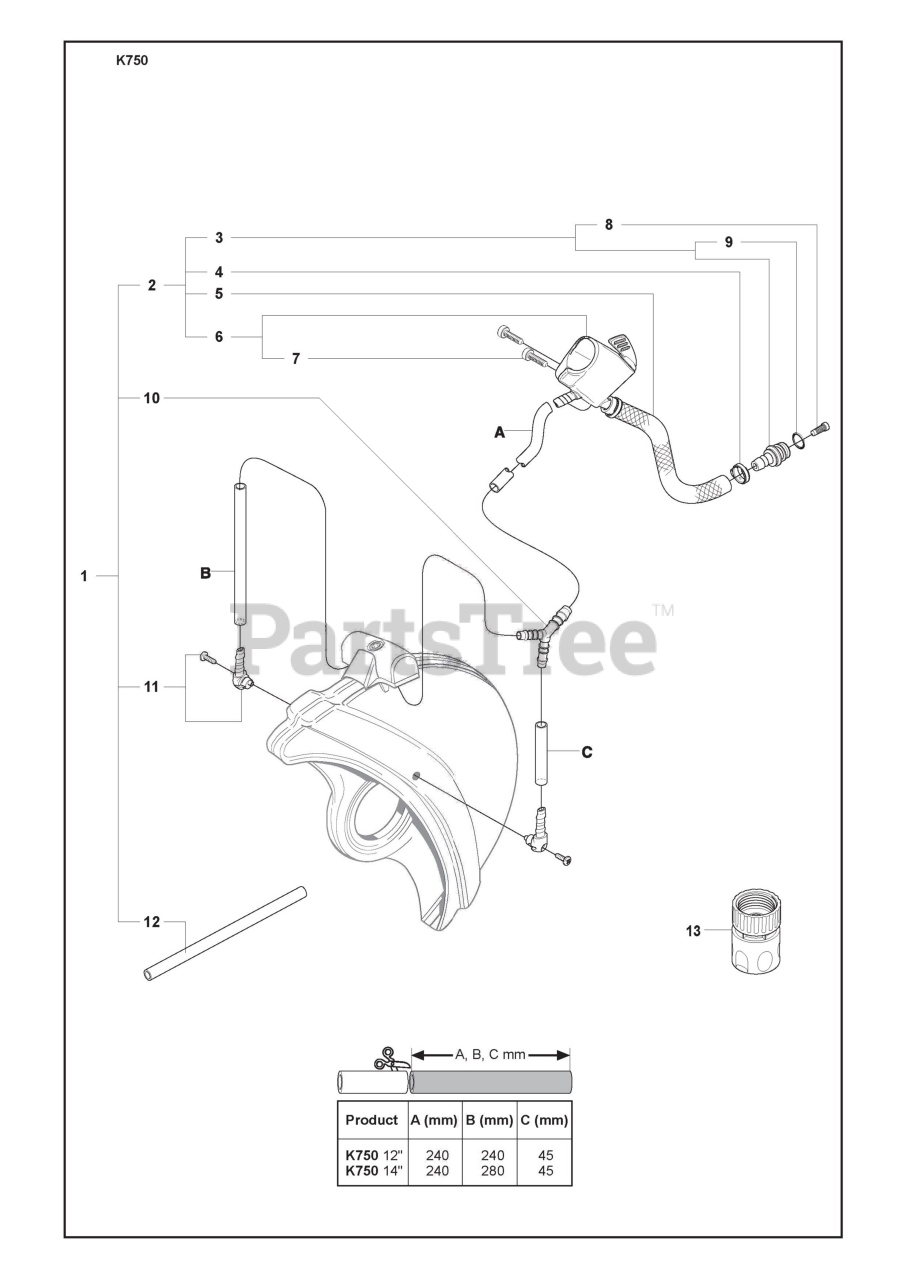

Valves Parts Diagram

  • Title

1

Husqvarna 544003102

WATER HOSE KIT

Note: Incl. 2, 10, 11, 12

$

$

Not available

2

Husqvarna 506385904

HOSE
(Superseded to 505095501)

Note: Incl. 3, 4, 5, 6

$50.99

$

In Stock, only 2 left!

0

3

Husqvarna 506295702

NIPPLE

Note: Incl. 8, 9

$29.99

$

In Stock, Qty 9

0

4

Husqvarna 506095606

HOSE CLAMP
(Superseded to 576129701)

$6.49

$

In Stock, Qty 17

0

5

Husqvarna 506097502

HOSE
(Superseded to 581893601)

Note: L=230 mm

$5.99

$

In Stock, only 1 left!

0

6

Husqvarna 506386012

VALVE ASSY

Note: Incl. 7

$31.99

$

In Stock, only 2 left!

0

7

Husqvarna 503215420

SCREW

$5.99

$

In Stock, only 2 left!

0

8

Husqvarna 506298801

FILTER

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503263021

O-RING
(Superseded to 740421000)

$6.49

$

In Stock, Qty 9

0

10

Husqvarna 506328701

Y-TUBE

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 506295601

NIPPLE

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 506095824

HOSE
(Superseded to 581893508)

Note: 800 mm

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503266001

COUPLER
(Superseded to 503266003)

$10.99

$

In Stock, Qty 16

0
