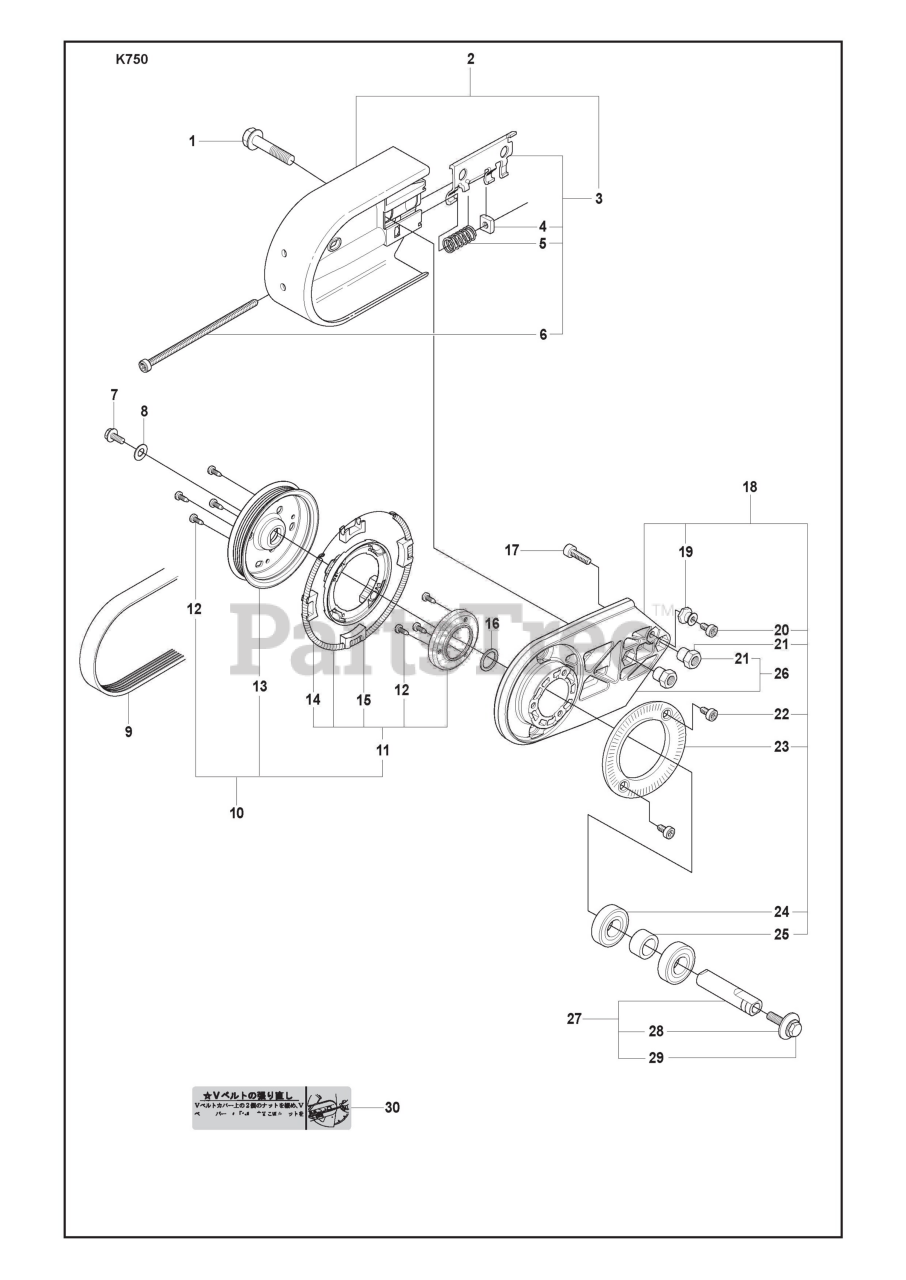

K 750 - Husqvarna Cut-Off Saw (2008-10) Belt Guard And Pulley With Retarder And Bearing Housing Parts Diagram

Cut-Off Saw

Belt Guard And Pulley With Retarder And Bearing Housing Parts Diagram

  • Title

1

Husqvarna 506284402

COLLAR SCREW
(Superseded to 506284401)

$8.49

$

In Stock, Qty 11

0

2

Husqvarna 506393602

BELT GUARD

Note: Incl. 3

$50.99

$

In Stock, only 4 left!

0

3

Husqvarna 506266604

BELT TENSIONER ASSY

Note: Incl. 4 - 6

$37.99

$

In Stock, only 3 left!

0

4

Husqvarna 506409301

NUT

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 506266801

COMPRESSION SPRING

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503207205

SCREW

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503200045

SCREW

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503230116

WASHER STEEL

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 544908402

BELT

$51.99

$

In Stock, Qty 12

0

10

Husqvarna 504037005

PULLEY WITH RETARDER
(Superseded to 588470403)

Note: Incl. 11 - 13

$94.99

$

In Stock, only 3 left!

0

11

Husqvarna 505445403

RETARDER CPL

Note: Incl. 12, 14 - 15

$44.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 544440602

PULLEY

$

$

Not available

14

Husqvarna 544441001

SPRING

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544440402

BRAKE SHOE

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 503230104

WASHER STEEL

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 725532955

SCREW

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 506394205

BEARING HOUSING
(Superseded to 581351710)

Note: Incl. 19 - 25, 27

$145.99

$

In Stock, only 2 left!

0

19

Husqvarna 506143201

TORSION STOP

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503215316

SCREW

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 506287301

NUT

$12.99

$

In Stock, only 2 left!

0

22

Husqvarna 503215310

SCREW

$4.99

$

In Stock, Qty 11

0

23

Husqvarna 506288401

RATCHET FLANGE

$8.49

$

In Stock, Qty 10

0

24

Husqvarna 503252101

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

25

Husqvarna 506070801

SPACING SLEEVE

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506394206

BEARING HOUSING
(Superseded to 581351707)

Note: Incl. 21

$

$

Not available

27

Husqvarna 506298363

SHAFT

Note: Incl. 28, 29

$74.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506139511

WASHER

$29.99

$

In Stock, only 2 left!

0

29

Husqvarna 506139601

COLLAR SCREW

$29.99

$

In Stock, only 2 left!

0

30

Husqvarna 506309705

LABEL

Note: Japan only

$13.99

$

Usually ships in 3-10 days

0
