K 750 - Husqvarna Cut-Off Saw (2008-10) Fuel Tank And Primer Housing And Fuel Filter Parts Diagram

Cut-Off Saw

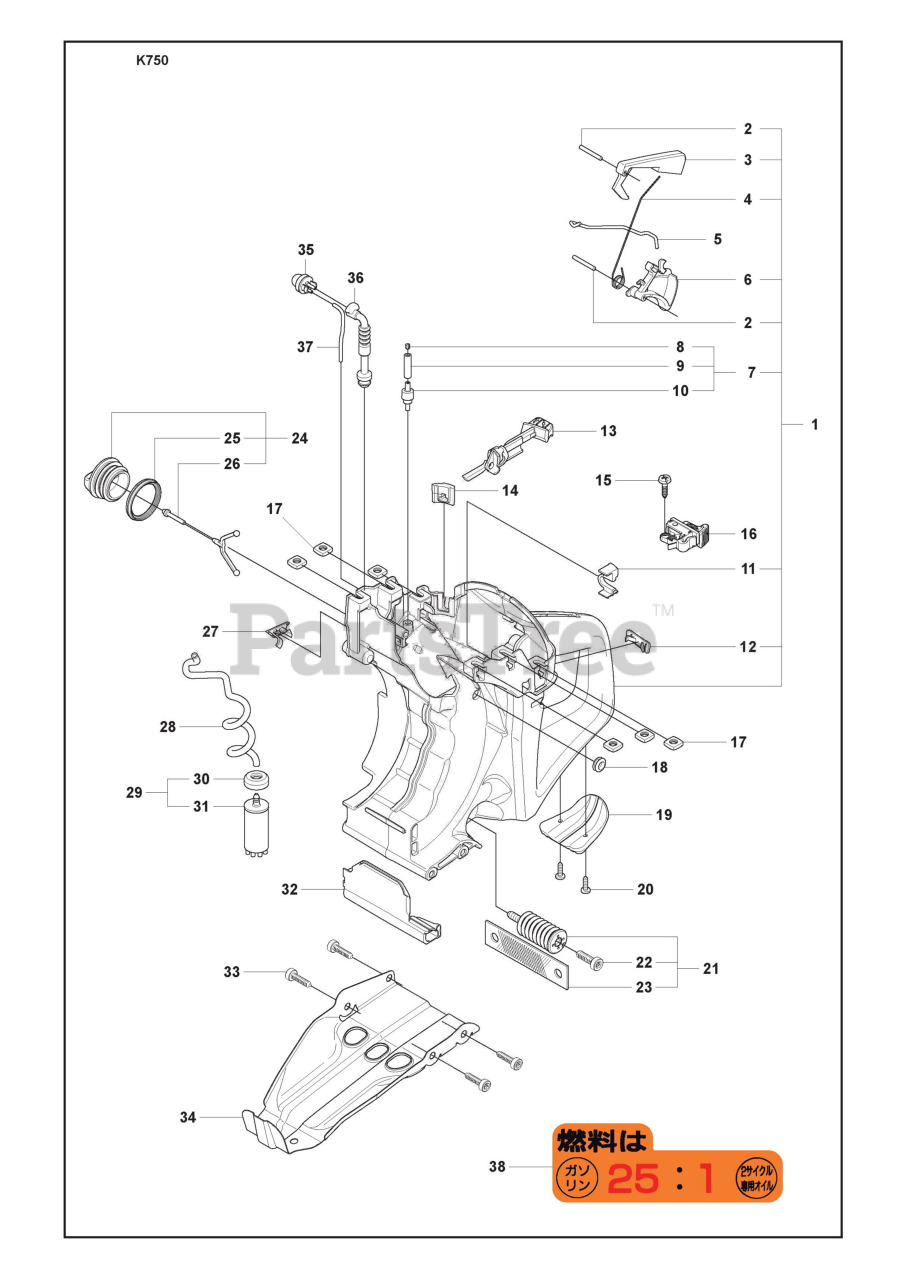

Fuel Tank And Primer Housing And Fuel Filter Parts Diagram

  • Title

1

Husqvarna 506386508

FUEL TANK
(Superseded to 593281802)

Note: Incl. 2 - 4, 6 - 7, 11 - 12 Japan only

$

$

Not available

1

Husqvarna 506386512

FUEL TANK
(Superseded to 593281802)

Note: Incl. 2 - 4, 6 - 7, 11 - 12

$

$

Not available

2

Husqvarna 720124020

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

3

Husqvarna 506222802

THROTTLE LOCKOUT
(Superseded to 577325003)

$28.99

$

In Stock, only 2 left!

0

4

Husqvarna 506379501

SPRING
(Superseded to 595835701)

$16.99

$

In Stock, only 1 left!

0

5

Husqvarna 506371301

THROTTLE ROD
(Superseded to 506371302)

$17.99

$

In Stock, only 1 left!

0

6

Husqvarna 506372003

THROTTLE TRIGGER
(Superseded to 588086201)

$23.99

$

In Stock, Qty 20+

0

7

Husqvarna 506386601

TANK VENT ASSY

Note: Incl. 8 - 10

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 504357201

SINTER PLUG

$5.49

$

In Stock, only 2 left!

0

9

Husqvarna 544324929

FUEL HOSE

$

$

Not available

10

Husqvarna 503164001

TANK VENT

$30.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544393201

HOSE CLIP

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 501371301

LID

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544229002

CHOKE CONTROL

$23.99

$

In Stock, only 3 left!

0

14

Husqvarna 506378001

GROMMET

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503212810

SCREW

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 506318602

STOP SWITCH
(Superseded to 506318604)

$20.99

$

In Stock, only 3 left!

0

17

Husqvarna 503226504

NUT

$5.49

$

In Stock, Qty 20+

0

18

Husqvarna 501271302

CABLE GROMMET

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506386702

GROUND SUPPORT

$8.49

$

Usually ships in 3-10 days

0

20

Husqvarna 503214516

SCREW

$3.49

$

In Stock, Qty 12

0

21

Husqvarna 537210307

VIBRATION ABSORBER

Note: Incl. 22 - 23

$28.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544061201

SCREW

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 544238201

BAND

$10.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506255903

TANK CAP ASSY
(Superseded to 506255906)

Note: Incl. 25 - 26

$17.99

$

In Stock, only 2 left!

0

25

Husqvarna 506292101

GASKET

$10.99

$

In Stock, only 2 left!

0

26

Husqvarna 503578901

TANK CAP HOLDER

$5.99

$

In Stock, Qty 7

0

27

Husqvarna 506394602

CAP

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 544325003

FUEL HOSE
(Superseded to 581756203)

$12.99

$

In Stock, Qty 9

0

29

Husqvarna 506264111

FUEL FILTER
(Superseded to 598836601)

Note: Incl. 30 - 31

$17.99

$

In Stock, Qty 20+

0

30

Husqvarna 506271101

HOSE CLAMP

$7.49

$

In Stock, Qty 10

0

31

Husqvarna 506264101

FUEL FILTER

$16.99

$

In Stock, Qty 20+

0

32

Husqvarna 506381501

HEAT SHIELD

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 503215420

SCREW

$3.99

$

In Stock, Qty 11

0

34

Husqvarna 506371902

BASE PLATE

$21.99

$

Usually ships in 3-10 days

0

35

Husqvarna 503936601

PRIMER HOUSING

Note: Japan only

$25.99

$

In Stock, Qty 20+

0

36

Husqvarna 505195201

FUEL HOSE

Note: Japan only

$41.99

$

In Stock, Qty 8

0

37

Husqvarna 537042414

FUEL HOSE

Note: Japan only

$8.99

$

In Stock, only 2 left!

0

38

Husqvarna 506313001

LABEL

Note: Japan only

$23.99

$

Usually ships in 3-10 days

0
