K 750 - Husqvarna Cut-Off Saw (2008-10) Starter Parts Diagram

Cut-Off Saw

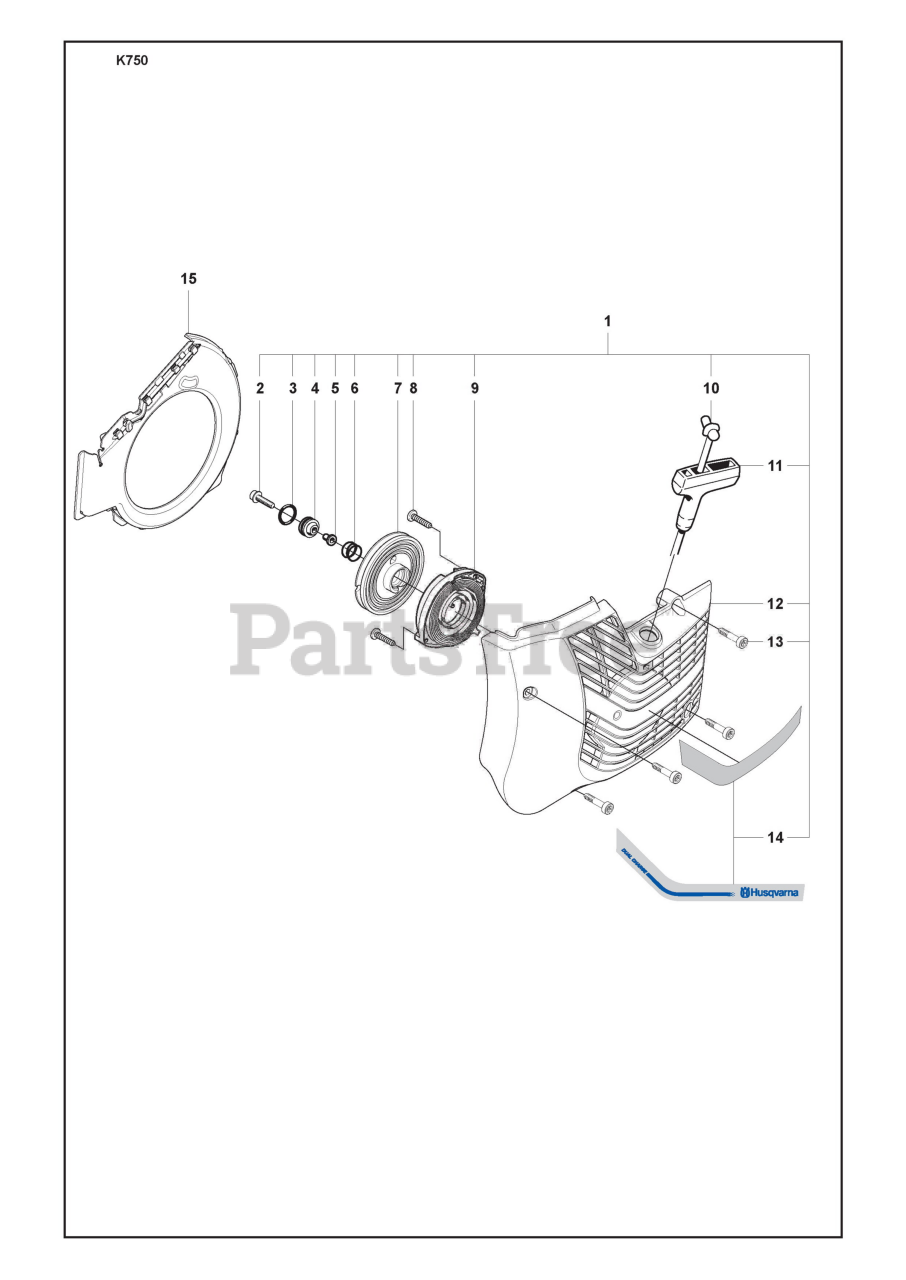

Starter Parts Diagram

  • Title

1

Husqvarna 506385612

STARTER
(Superseded to 506385613)

Note: Incl. 2 - 14

$

$

Not available

2

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$6.49

$

In Stock, Qty 12

0

3

Husqvarna 740431300

O-RING

$7.99

$

In Stock, Qty 12

0

4

Husqvarna 506251401

GROMMET
(Superseded to 510000801)

$6.99

$

In Stock, Qty 12

0

5

Husqvarna 506263101

SPACING SLEEVE

$9.49

$

In Stock, Qty 11

0

6

Husqvarna 506253001

COMPRESSION SPRING

$7.49

$

In Stock, Qty 12

0

7

Husqvarna 506258102

STARTER PULLEY

$25.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 506258901

RECOIL SPRING

$

$

Not available

10

Husqvarna 506335615

STARTER CORD

$29.99

$

In Stock, only 2 left!

0

10

Husqvarna 506335650

STARTER CORD

Note: 50 m

$625.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503127901

STARTER HANDLE
(Superseded to 584257902)

$9.49

$

In Stock, only 2 left!

0

12

Husqvarna 506369203

STARTER COVER

$58.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503215321

SCREW

$5.99

$

In Stock, Qty 9

0

14

Husqvarna 544890801

LABEL
(Superseded to 544890802)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544383901

AIR CONDUCTOR

$6.99

$

In Stock, only 1 left!

0
