K 750 - Husqvarna Cut-Off Saw (2009-07) Carburettor And Gasket Kit And Carb Parts Diagram

Cut-Off Saw

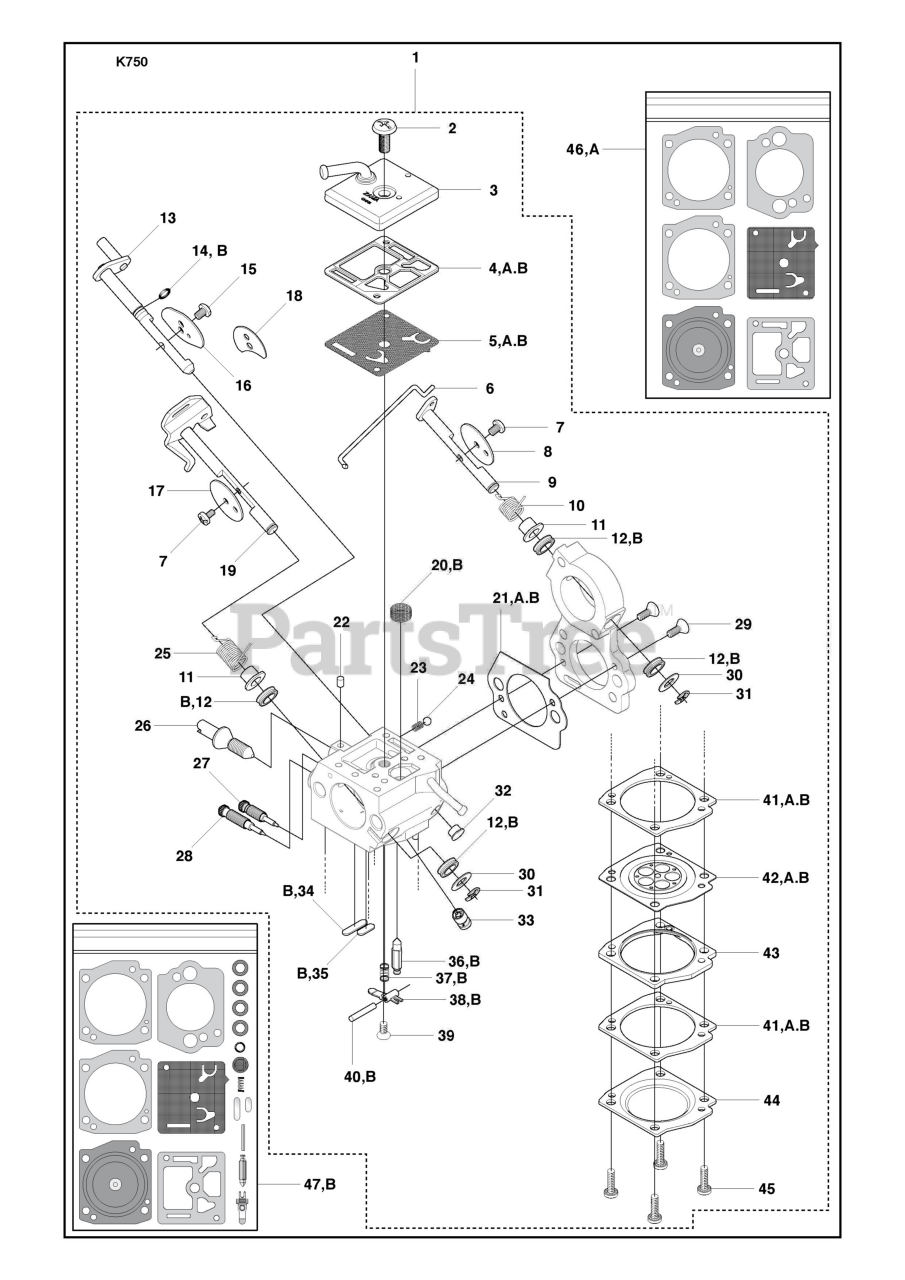

Carburettor And Gasket Kit And Carb Parts Diagram

  • Title

1

Husqvarna 503283209

Carburettor

Note: Zama C3-EL29, Incl. 2 - 43

$

$

Not available

1

Husqvarna 510181201

Carburettor
(Superseded to 510181203)

Note: Zama C3-EL43, Incl. 2 - 43 JPN

$164.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503479601

Screw

$3.99

$

In Stock, Qty 5

0

3

Husqvarna 544836401

Pump Cover

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503616601

Gasket Pump

$5.49

$

In Stock, Qty 6

0

5

Husqvarna 506396001

Diaphragm Pump
(Superseded to 537380201)

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 506396501

Rod

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544082201

Screw

$

$

Not available

9

Husqvarna 506397101

Shaft Assy

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506397501

Spring

$5.49

$

Usually ships in 3-10 days

0

11

Husqvarna 506395401

Collar

$

$

Not available

12

Husqvarna 506396401

Quad Ring

$

$

Not available

13

Husqvarna 506397301

Shaft Assy Choke

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506399001

Ring

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503481801

Screw

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 506397801

Valve

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 537177001

Valve

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 522607501

Valve

Note: Japan only

$

$

Not available

19

Husqvarna 506397401

Shaft Assy

$22.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503535701

Strainer

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 506395801

Gasket

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503481101

Piece

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537012601

Spring

$3.99

$

In Stock, only 1 left!

0

24

Husqvarna 537012501

Ball

$3.99

$

In Stock, Qty 7

0

25

Husqvarna 544836501

Spring

$8.49

$

Usually ships in 3-10 days

0

26

Husqvarna 506397201

Screw

$13.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506397001

Screw

$22.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506396901

Screw

$21.99

$

Usually ships in 3-10 days

0

29

Husqvarna 537385101

Screw

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 506397901

Washer

$

$

Not available

31

Husqvarna 537385201

Clip

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 506399101

Plug

$2.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506396101

Nozzle Assy

$28.99

$

In Stock, only 1 left!

0

34

Husqvarna 503535601

Plug Welch

$7.49

$

In Stock, Qty 6

0

35

Husqvarna 537177801

Plug

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 537176201

Valve

$24.99

$

In Stock, only 1 left!

0

37

Husqvarna 537273401

Spring

$

$

Not available

38

Husqvarna 537176401

Lever

$7.49

$

In Stock, only 3 left!

0

39

Husqvarna 544082101

Screw

$4.49

$

Usually ships in 3-10 days

0

40

Husqvarna 503480001

Pin Retaining Screw
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

41

Husqvarna 506396201

Gasket

$8.49

$

Usually ships in 3-10 days

0

42

Husqvarna 506395701

Diaphragm Assy

$26.99

$

Usually ships in 3-10 days

0

43

Husqvarna 506395501

Cover

$14.99

$

Usually ships in 3-10 days

0

44

Husqvarna 506395601

Cover

$13.99

$

Usually ships in 3-10 days

0

45

Husqvarna 506396601

Screw

$2.99

$

Usually ships in 3-10 days

0

46

Husqvarna 506409901

Gasket Kit

Note: Incl. 4, 5, 21, 41, 42

$25.99

$

In Stock, Qty 8

0

47

Husqvarna 506410001

Gasket Kit Carb

Note: Incl. 4, 5, 12, 14, 20, 21, 34-38, 40-42

$85.99

$

Usually ships in 3-10 days

0
