K 750 Rescue - Husqvarna Rescue Saw (2007-07) BELT GUARD & PULLEY Parts Diagram

Rescue Saw

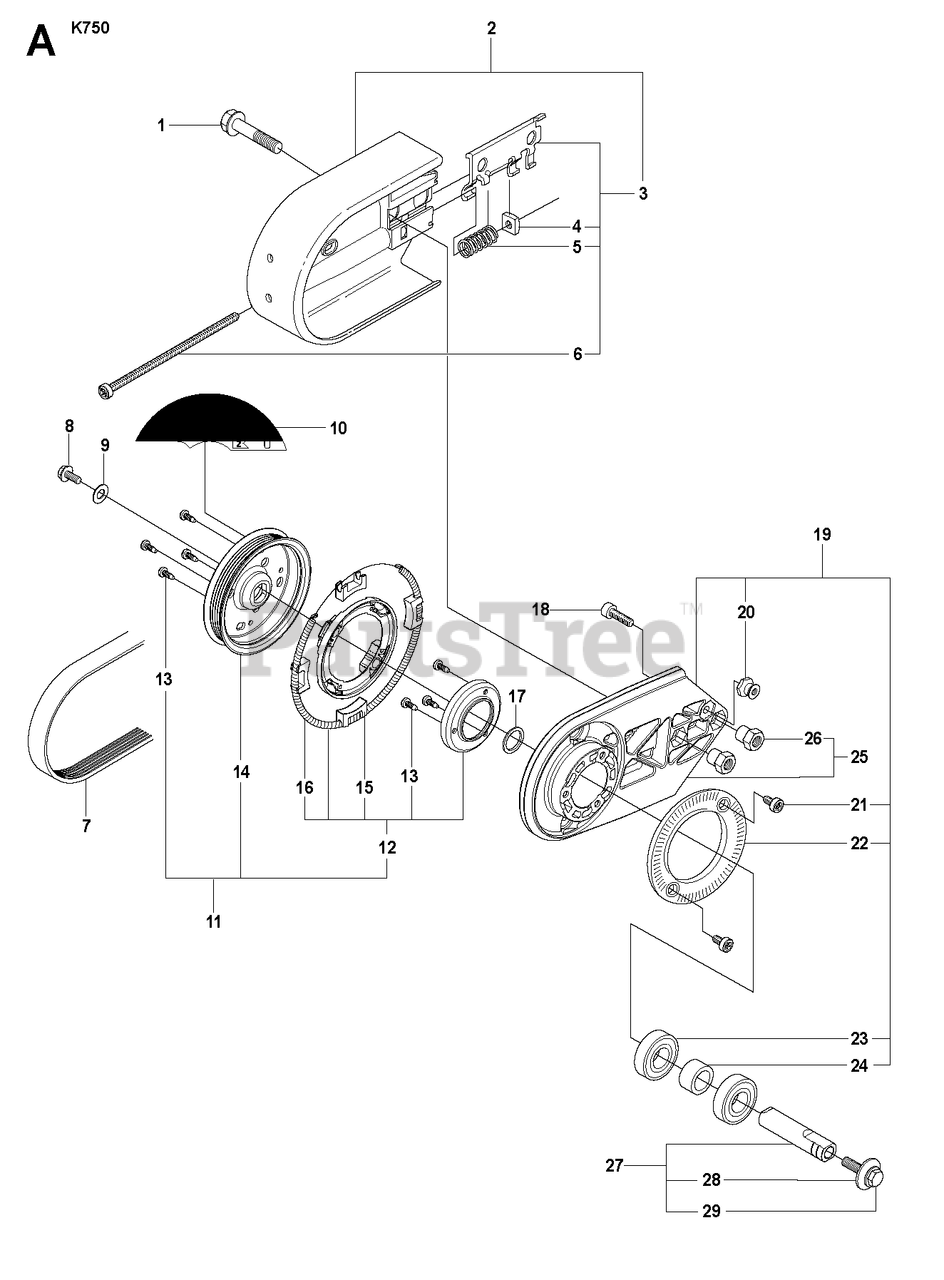

BELT GUARD & PULLEY Parts Diagram

  • Title

1

Husqvarna 506 28 44-02

SCREW EHHFM
(Superseded to 506284401)

$8.49

$

In Stock, Qty 11

0

2

Husqvarna 506 39 36-02

BELT GUARDIncl. 3

$50.99

$

In Stock, only 4 left!

0

3

Husqvarna 506 26 66-04

BELT TENSIONER ASSYIncl. 4 - 6

$37.99

$

In Stock, only 3 left!

0

4

Husqvarna 506 40 93-01

NUT

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 506 26 68-01

COMPRESSION SPRING

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503 20 72-05

SCREW CITXSCM

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544 90 84-02

BELT

$51.99

$

In Stock, Qty 12

0

8

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503 23 01-16

WASHER

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna Construction 502 47 04-01

LABEL

$

$

Not available

11

Husqvarna 504 03 70-01

PULLEYIncl. 12 - 16
(Superseded to 588470403)

$94.99

$

In Stock, only 3 left!

0

12

Husqvarna 504 03 70-03

PULLEYIncl. 13, 15, 16
(Superseded to 505445405)

$53.99

$

In Stock, only 1 left!

0

13

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 544 44 06-01

PULLEY
(Superseded to 544440602)

$

$

Not available

15

Husqvarna 544 44 04-01

BRAKE SHOE

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 544 44 10-01

DRAW SPRING

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503 23 01-04

WASHER

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 725 53 29-55

SCREW IHSCM

$6.49

$

In Stock, Qty 20+

0

19

Husqvarna 506 39 42-03

BEARING HOUSINGIncl. 20 - 24
(Superseded to 581351710)

$145.99

$

In Stock, only 2 left!

0

20

Husqvarna 506 14 32-01

TORSION STOP

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 503 21 53-10

SCREW ITXSCM

$4.99

$

In Stock, Qty 11

0

22

Husqvarna 506 28 84-01

SCREEN

$8.49

$

In Stock, Qty 10

0

23

Husqvarna 503 25 21-01

BALL BEARING

$31.99

$

In Stock, only 2 left!

0

24

Husqvarna Construction 506 07 08-01

SPACING SLEEVE

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506 39 42-11

BEARING HOUSINGIncl. 26
(Superseded to 581351707)

$

$

Not available

26

Husqvarna 506 28 73-01

NUT

$12.99

$

In Stock, only 2 left!

0

27

Husqvarna 506 29 83-63

SHAFTIncl. 28, 29

$74.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 506 13 95-11

WASHER

$29.99

$

In Stock, only 2 left!

0

29

Husqvarna 506 13 96-01

SCREW EHHFM

$29.99

$

In Stock, only 2 left!

0
