K 750 Rescue - Husqvarna Rescue Saw (2007-07) CARBURETOR DETAILS Parts Diagram

Rescue Saw

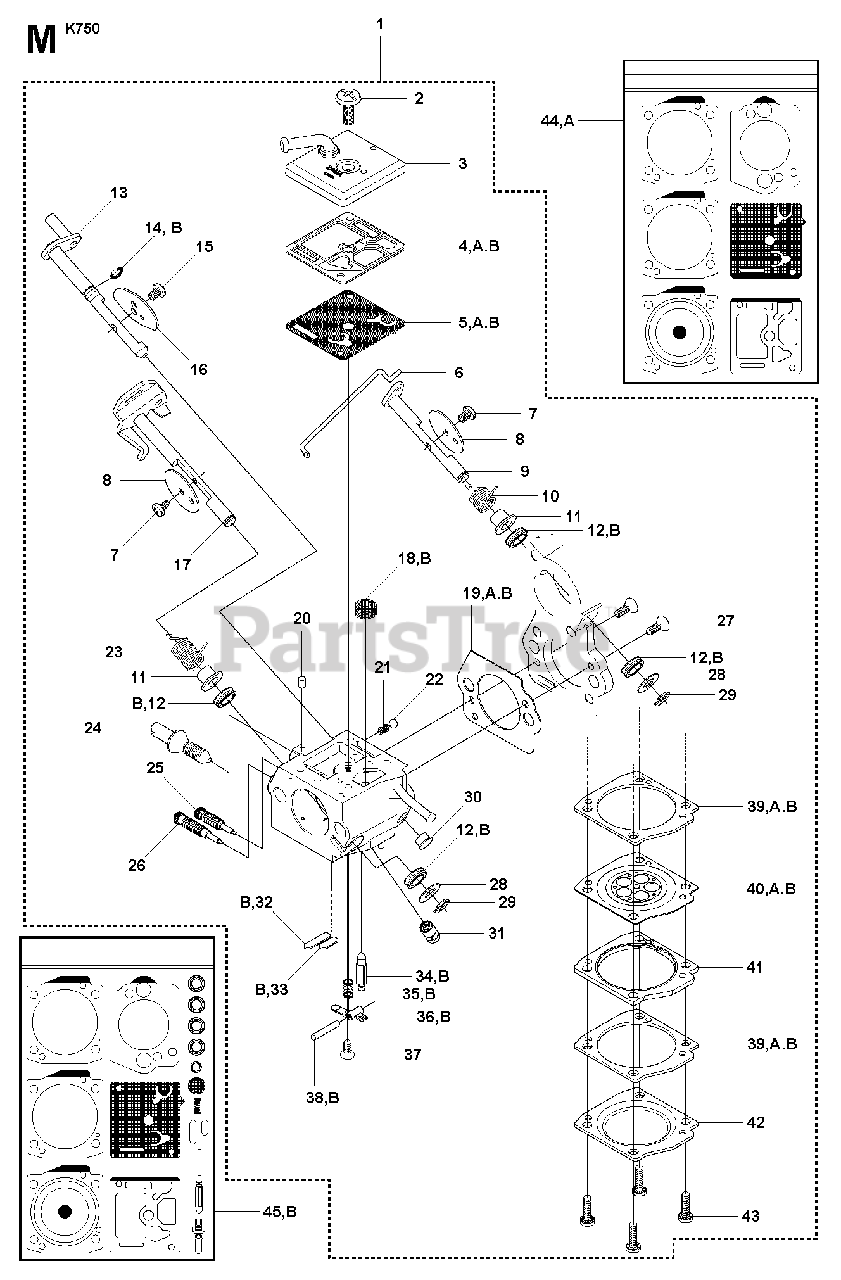

CARBURETOR DETAILS Parts Diagram

  • Title

1

Husqvarna 503 28 32-09

CARBURETTORZama C3-EL29, Incl. 2 - 43

$

$

Not available

2

Husqvarna 503 47 96-01

SCREW

$3.99

$

In Stock, Qty 5

0

3

Husqvarna Construction 544 83 64-01

PUMP COVER

$31.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 61 66-01

GASKET

$5.49

$

In Stock, Qty 6

0

5

Husqvarna 506 39 60-01

DIAPHRAGM PUMP
(Superseded to 537380201)

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 506 39 65-01

ROD

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 544 08 22-01

SCREW

$

$

Not available

8

Husqvarna 537 17 70-01

VALVE

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506 39 71-01

SHAFT ASSY

$22.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 506 39 75-01

SPRING

$5.49

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 506 39 54-01

COLLAR

$

$

Not available

12

Husqvarna Construction 506 39 64-01

QUAD RING

$

$

Not available

13

Husqvarna 506 39 73-01

SHAFT ASSY

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506 39 90-01

O-RING

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503 48 18-01

SCREW

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 506 39 78-01

VALVE

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 506 39 74-01

SHAFT ASSY

$22.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503 53 57-01

STRAINER

$4.99

$

In Stock, only 4 left!

0

19

Husqvarna 506 39 58-01

GASKET

$11.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503 48 11-01

PIECE

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537 01 26-01

SPRING

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 537 01 25-01

BALL

$3.99

$

In Stock, Qty 7

0

23

Husqvarna Construction 544 83 65-01

SPRING

$8.49

$

Usually ships in 3-10 days

0

24

Husqvarna 506 39 72-01

SCREW

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506 39 70-01

SCREW

$22.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506 39 69-01

SCREW

$21.99

$

Usually ships in 3-10 days

0

27

Husqvarna 537 38 51-01

SCREW

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 506 39 79-01

WASHER

$

$

Not available

29

Husqvarna 537 38 52-01

CLIP

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 506 39 91-01

PLUG

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506 39 61-01

NOZZLE ASSY

$28.99

$

In Stock, only 1 left!

0

32

Husqvarna 503 53 56-01

PLUG WELCH

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 537 17 78-01

PLUG

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 537 17 62-01

VALVE

$24.99

$

In Stock, only 1 left!

0

35

Husqvarna 537 27 34-01

SPRING

$

$

Not available

36

Husqvarna 537 17 64-01

LEVER

$7.49

$

In Stock, only 3 left!

0

37

Husqvarna 544 08 21-01

SCREW

$4.49

$

Usually ships in 3-10 days

0

38

Husqvarna 503 48 00-01

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0

39

Husqvarna 506 39 62-01

GASKET

$8.49

$

Usually ships in 3-10 days

0

40

Husqvarna 506 39 57-01

DIAPHRAGM ASSY

$26.99

$

Usually ships in 3-10 days

0

41

Husqvarna 506 39 55-01

COVER

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 506 39 56-01

COVER

$13.99

$

Usually ships in 3-10 days

0

43

Husqvarna Construction 506 39 66-01

SCREW

$2.99

$

Usually ships in 3-10 days

0

44

Husqvarna 506 40 99-01

GASKET KITIncl. 4, 5, 19, 39, 40

$25.99

$

In Stock, Qty 8

0

45

Husqvarna 506 41 00-01

GASKET KITIncl. 4, 5, 12, 14, 32 - 36, 38 - 40

$85.99

$

Usually ships in 3-10 days
