K 750 Rescue - Husqvarna Rescue Saw (2007-07) CRANKCASE Parts Diagram

Rescue Saw

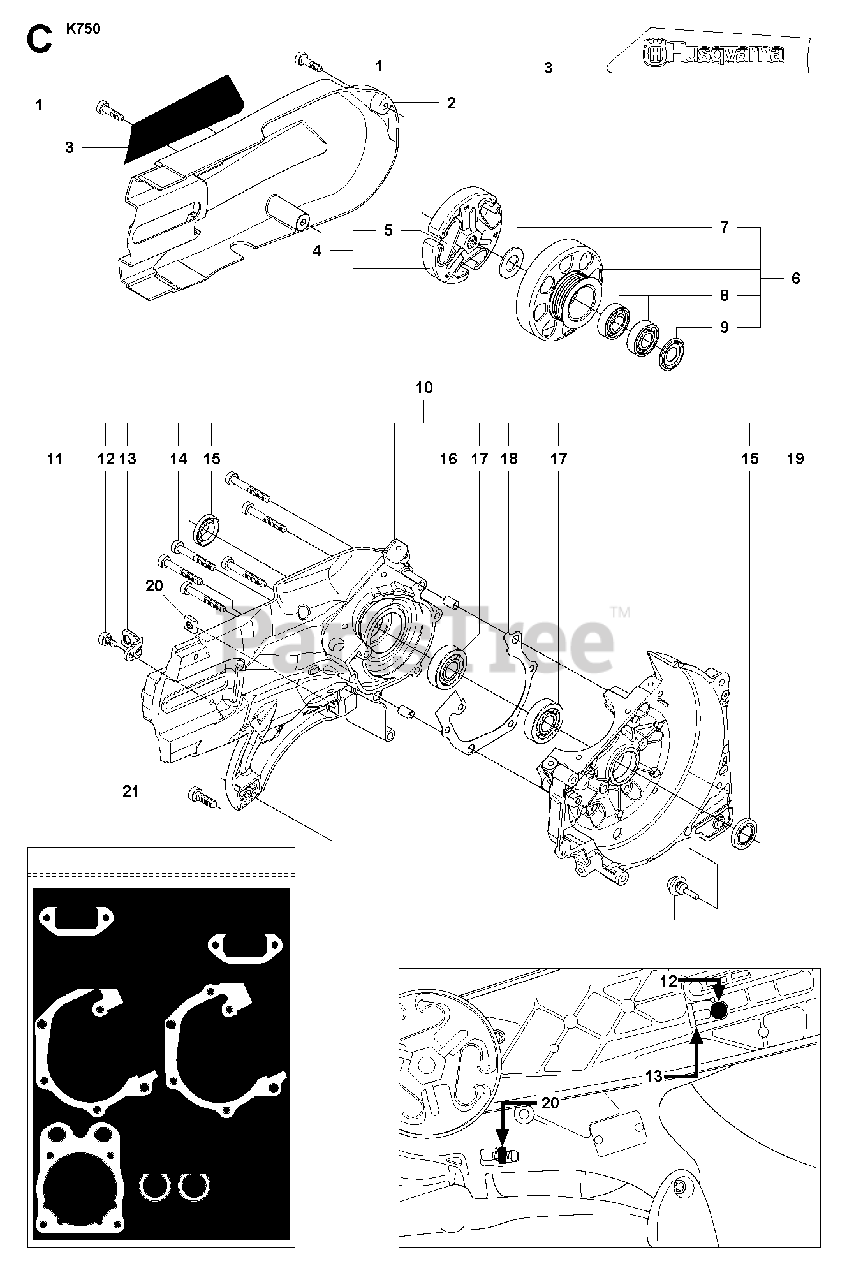

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 503 21 53-21

SCREW ITXSCM

$5.99

$

In Stock, Qty 8

0

2

Husqvarna 506 36 91-03

BELT GUARD
(Superseded to 581485901)

$42.99

$

In Stock, Qty 10

0

3

Husqvarna Construction 544 89 11-01

LABEL

$7.99

$

In Stock, only 1 left!

0

4

Husqvarna 503 74 44-04

CLUTCH ASSYIncl. 5
(Superseded to 503744406)

$109.99

$

In Stock, only 2 left!

0

5

Husqvarna 503 74 43-01

CLUTCH SPRING

$9.49

$

In Stock, only 2 left!

0

6

Husqvarna 502 28 92-02

DRIVING PULLEY ASSYIncl. 7 - 9
(Superseded to 590805901)

$80.99

$

In Stock, only 4 left!

0

7

Husqvarna 503 23 00-70

WASHER
(Superseded to 503230073)

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 738 21 01-04

BALL BEARING

$24.99

$

In Stock, only 2 left!

0

9

Husqvarna 506 31 69-01

DUST COVER

$6.99

$

In Stock, Qty 18

0

10

Husqvarna 544 88 90-06

CRANKCASE ASSYIncl. 11 - 19
(Superseded to 575825901)

$434.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506 38 53-05

GASKET KIT
(Superseded to 581357401)

$29.99

$

In Stock, Qty 6

0

12

Husqvarna 503 20 03-12

SCREW IHSCFM

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544 00 78-01

BRACKET

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503 21 53-41

SCREW ITXSCM

$5.99

$

In Stock, only 1 left!

0

15

Husqvarna 503 26 02-04

SEALING RING

$17.99

$

In Stock, Qty 5

0

16

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 738 22 02-25

BALL BEARING

$31.99

$

In Stock, only 3 left!

0

18

Husqvarna 506 37 70-03

GASKET

$9.49

$

In Stock, only 2 left!

0

19

Husqvarna 503 84 61-01

BUFFER

$8.99

$

In Stock, Qty 11

0

20

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 544 06 12-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 13

0

22

Husqvarna 506 41 23-01

GASKET

$8.49

$

In Stock, only 2 left!

0

23

Husqvarna 506 37 69-02

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, only 2 left!

0

24

Husqvarna 506 37 70-02

GASKET

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506 37 67-01

CYLINDER

$7.99

$

In Stock, only 3 left!

0

26

Husqvarna 544 21 93-02

INSERT

$5.99

$

In Stock, Qty 13

0
