K 750 Rescue - Husqvarna Rescue Saw (2008-10) BELT GUARD & PULLEY Parts Diagram

Rescue Saw

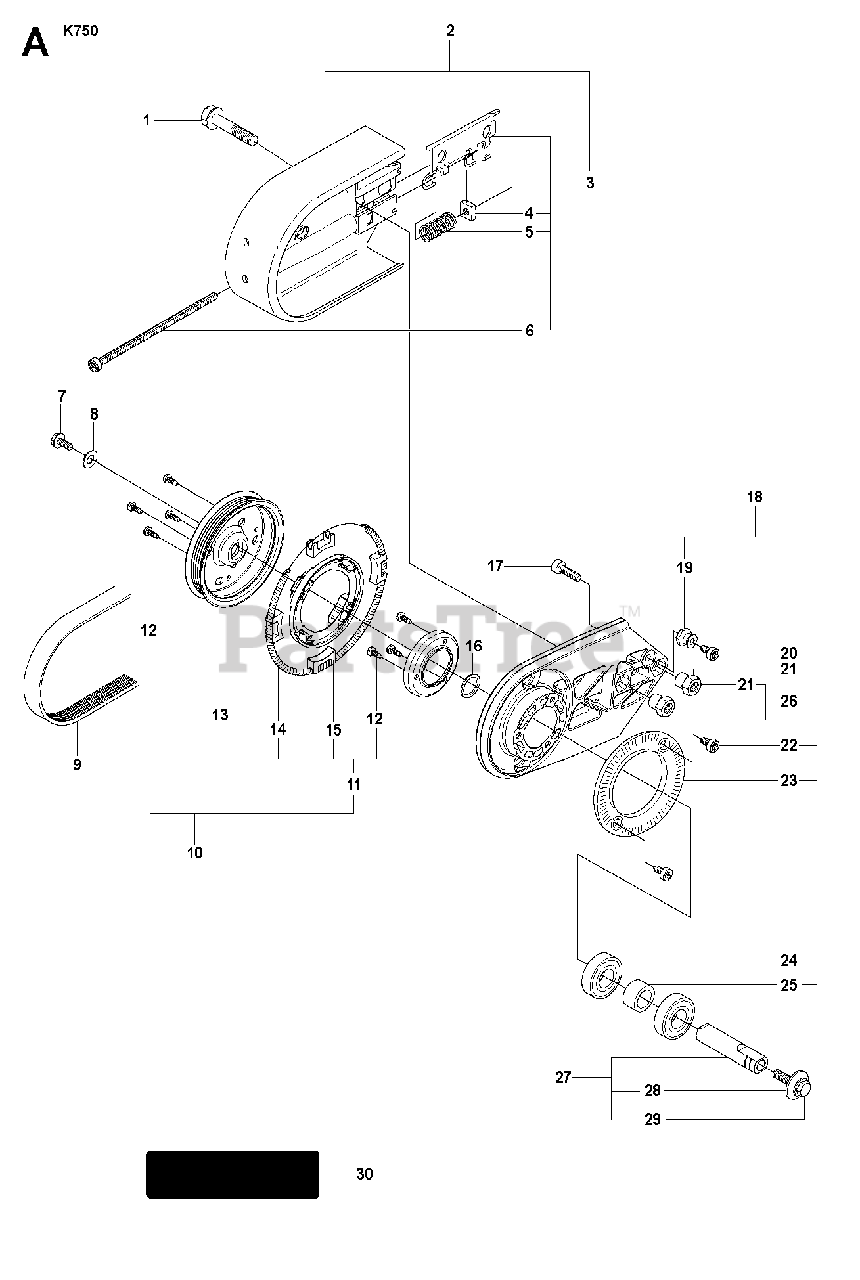

BELT GUARD & PULLEY Parts Diagram

  • Title

1

Husqvarna 506 28 44-02

SCREW EHHFM
(Superseded to 506284401)

$10.99

$

In Stock, only 3 left!

0

2

Husqvarna 506 39 36-02

BELT GUARDIncl. 3
(Superseded to 503895438)

$

$

Not available

3

Husqvarna 506 26 66-04

BELT TENSIONER ASSYIncl. 4 - 6

$35.99

$

In Stock, only 2 left!

0

4

Husqvarna 506 40 93-01

NUT

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 506 26 68-01

COMPRESSION SPRING

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503 20 72-05

SCREW CITXSCM

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 20 00-45

SCREW EHHFM

$6.99

$

In Stock, Qty 5

0

8

Husqvarna 503 23 01-16

WASHER

$3.99

$

In Stock, Qty 6

0

9

Husqvarna 544 90 84-02

BELT

$48.99

$

In Stock, Qty 15

0

10

Husqvarna 504 03 70-05

PULLEYIncl. 11 - 13
(Superseded to 588470403)

$95.99

$

In Stock, only 2 left!

0

11

Husqvarna 505 44 54-03

CASSETTEIncl. 12, 14 - 15
(Superseded to 505445405)

$63.99

$

In Stock, Qty 7

0

12

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 544 44 06-02

PULLEY

$

$

Not available

14

Husqvarna 544 44 10-01

DRAW SPRING

$10.99

$

In Stock, only 3 left!

0

15

Husqvarna 544 44 04-02

BRAKE SHOE

$10.99

$

In Stock, only 4 left!

0

16

Husqvarna 503 23 01-04

WASHER

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 725 53 29-55

SCREW IHSCM

$7.99

$

In Stock, Qty 14

0

18

Husqvarna 506 39 42-05

BEARING HOUSINGIncl. 19 - 25, 27
(Superseded to 581351709)

$249.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506 14 32-01

TORSION STOP

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503 21 53-16

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 506 28 73-01

NUT

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503 21 53-10

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 506 28 84-01

SCREEN

$10.99

$

In Stock, Qty 5

0

24

Husqvarna 503 25 21-01

BALL BEARING

$39.99

$

In Stock, only 2 left!

0

25

Husqvarna Construction 506 07 08-01

SPACING SLEEVE

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506 39 42-06

BEARING HOUSINGIncl. 21
(Superseded to 581351709)

$249.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506 29 83-63

SHAFTIncl. 28, 29

$86.99

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 506 13 95-11

WASHER

$33.99

$

In Stock, Qty 10

0

29

Husqvarna 506 13 96-01

SCREW EHHFM
(Superseded to 581855201)

$33.99

$

In Stock, Qty 10

0

30

Husqvarna 506 30 97-05

LABELJapan only

$17.99

$

Usually ships in 3-10 days

0
