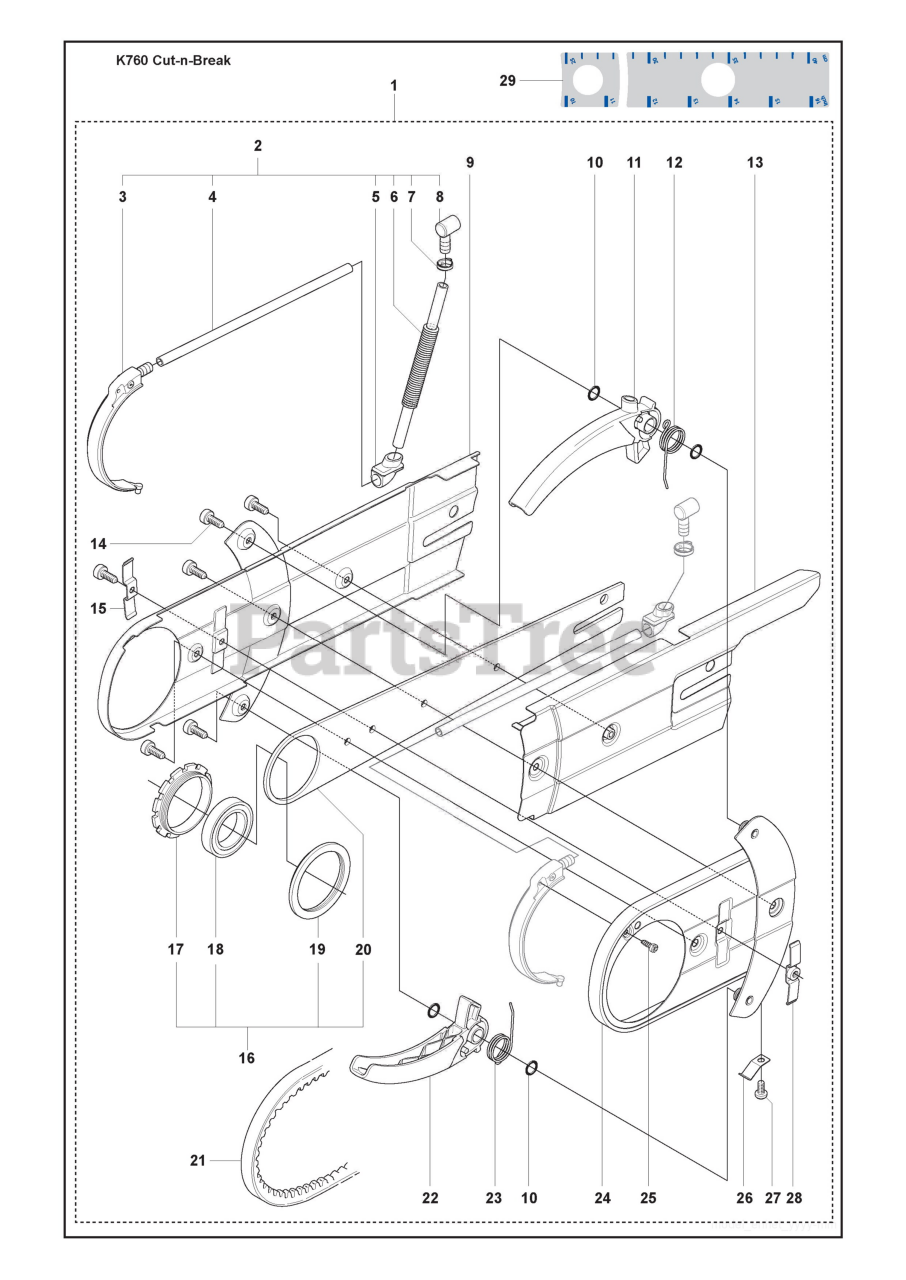

K 760 Cut-n-Break - Husqvarna Cut-Off Saw (2009-11) Cutter Arm and Belt and Blade Guard and Blet Guard Parts Diagram

Cut-Off Saw

Cutter Arm and Belt and Blade Guard and Blet Guard Parts Diagram

  • Title

1

Husqvarna 575279901

Cutter Arm

Note: Incl. 2, 9 - 16, 21 - 28

$1153.99

$

In Stock, only 1 left!

0

2

Husqvarna 544105004

Hose Assy

Note: Incl. 3 - 8

$84.99

$

In Stock, only 3 left!

0

3

Husqvarna 504875201

Sealing

$24.99

$

In Stock, only 2 left!

0

4

Husqvarna 544041701

Hose
(Superseded to 581893801)

$10.99

$

In Stock, Qty 10

0

5

Husqvarna 506405702

Grommet

$32.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506352702

Protective Spring

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506095605

Hose Clamp

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506409802

Nipple

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506405502

Belt Guard
(Superseded to 506405503)

$120.99

$

In Stock, only 1 left!

0

10

Husqvarna 503263008

O-Ring

$5.49

$

Usually ships in 3-10 days

0

11

Husqvarna 506406403

Belt Guard

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 506406101

Spring

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525564501

Belt Cover
(Superseded to 525564503)

$129.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503215310

Screw

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 506405601

Deflection Limiter

$12.99

$

In Stock, only 2 left!

0

16

Husqvarna 544103703

Bar Assy

Note: Incl. 17 - 20

$289.99

$

In Stock, only 2 left!

0

17

Husqvarna 506402802

Bearing Cage

$100.99

$

In Stock, only 2 left!

0

18

Husqvarna 544105901

Bearing

$80.99

$

In Stock, Qty 6

0

19

Husqvarna 506402902

Bushing

$66.99

$

In Stock, only 2 left!

0

20

Husqvarna 506405301

Bar Plate

$

$

Not available

21

Husqvarna 506372702

Belt

$60.99

$

In Stock, Qty 8

0

22

Husqvarna 506406502

Blade Guard

$12.99

$

In Stock, Qty 10

0

23

Husqvarna 506406102

Spring

$8.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506404602

Wear Protection
(Superseded to 506404603)

$136.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 506405101

Stop

$12.99

$

In Stock, only 3 left!

0

27

Husqvarna 724128401

Screw

$1.99

$

In Stock, only 3 left!

0

28

Husqvarna 506405602

Deflection Limiter

$22.99

$

In Stock, only 2 left!

0

29

Husqvarna 544374402

Label

$12.99

$

Usually ships in 3-10 days

0
