K 760 Cut-n-Break - Husqvarna Cut-Off Saw (2013-06) CYLINDER, PISTON & MUFFLER Parts Diagram

Cut-Off Saw

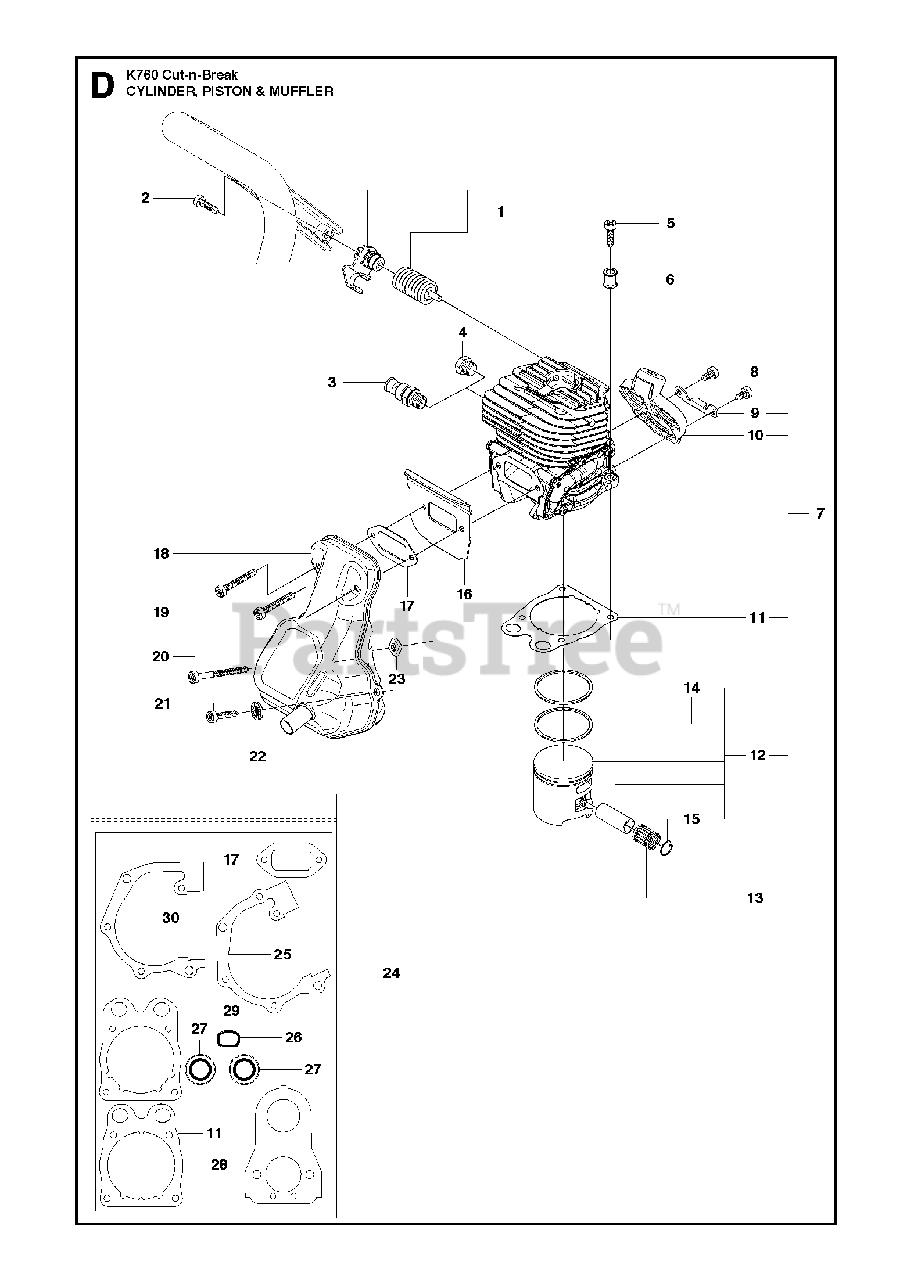

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 505 42 45-01

ANTIVIBRATION ELEMENT

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544 06 12-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 13

0

3

Husqvarna 503 71 53-01

DECOMPRESSION VALVE

$37.99

$

In Stock, only 4 left!

0

4

Husqvarna 503 55 22-01

PLUG

$13.99

$

In Stock, only 3 left!

0

5

Husqvarna 503 21 53-40

SCREW ITXSCM

$5.99

$

In Stock, Qty 11

0

6

Husqvarna 576 71 76-02

SLEEVE

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 581 47 61-01

CYLINDER ASSYIncl. 8 - 13
(Superseded to 581476103)

$682.99

$

In Stock, only 2 left!

0

8

Husqvarna 503 21 53-16

SCREW ITXSCM

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506 36 88-01

BRACKET

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574 23 18-01

PLATE
(Superseded to 574231802)

$20.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581 28 53-01

GASKET

$9.49

$

In Stock, Qty 13

0

12

Husqvarna 506 37 24-02

PISTON ASSYIncl. 13 - 15
(Superseded to 506372403)

$157.99

$

In Stock, only 2 left!

0

13

Husqvarna 577 57 24-01

NEEDLE BEARING

$21.99

$

In Stock, Qty 6

0

14

Husqvarna 503 28 90-47

PISTON RING
(Superseded to 522990101)

$31.99

$

In Stock, Qty 7

0

15

Husqvarna 737 43 12-00

SNAP RING

$7.49

$

In Stock, Qty 6

0

16

Husqvarna 506 37 58-02

COOLING AIR CONDUCTOR

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 506 37 69-02

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna 506 36 42-04

MUFFLER ASSY
(Superseded to 587668702)

$80.99

$

In Stock, only 3 left!

0

19

Husqvarna 503 21 53-40

SCREW ITXSCM

$5.99

$

In Stock, Qty 11

0

20

Husqvarna 503 21 53-56

SCREW ITXSCM

$5.99

$

In Stock, Qty 10

0

21

Husqvarna 503 21 53-25

SCREW ITXSCM

$5.99

$

In Stock, Qty 9

0

22

Husqvarna 503 23 04-02

WASHER

$7.99

$

In Stock, only 3 left!

0

23

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 20+

0

24

Husqvarna 581 35 74-01

GASKET KITIncl. 11, 17, 25 - 30
(Superseded to 581357402)

$29.99

$

In Stock, Qty 6

0

25

Husqvarna 506 37 70-03

GASKET

$9.49

$

In Stock, only 1 left!

0

26

Husqvarna 544 21 93-02

INSERT

$5.99

$

In Stock, Qty 13

0

27

Husqvarna 503 26 02-04

SEALING RINGBlue

$17.99

$

In Stock, Qty 6

0

28

Husqvarna 506 37 68-04

GASKET

$6.99

$

In Stock, Qty 10

0

29

Husqvarna 506 37 67-01

CYLINDER

$7.99

$

In Stock, only 3 left!

0

30

Husqvarna 506 37 70-02

GASKET

$7.99

$

Usually ships in 3-10 days

0
