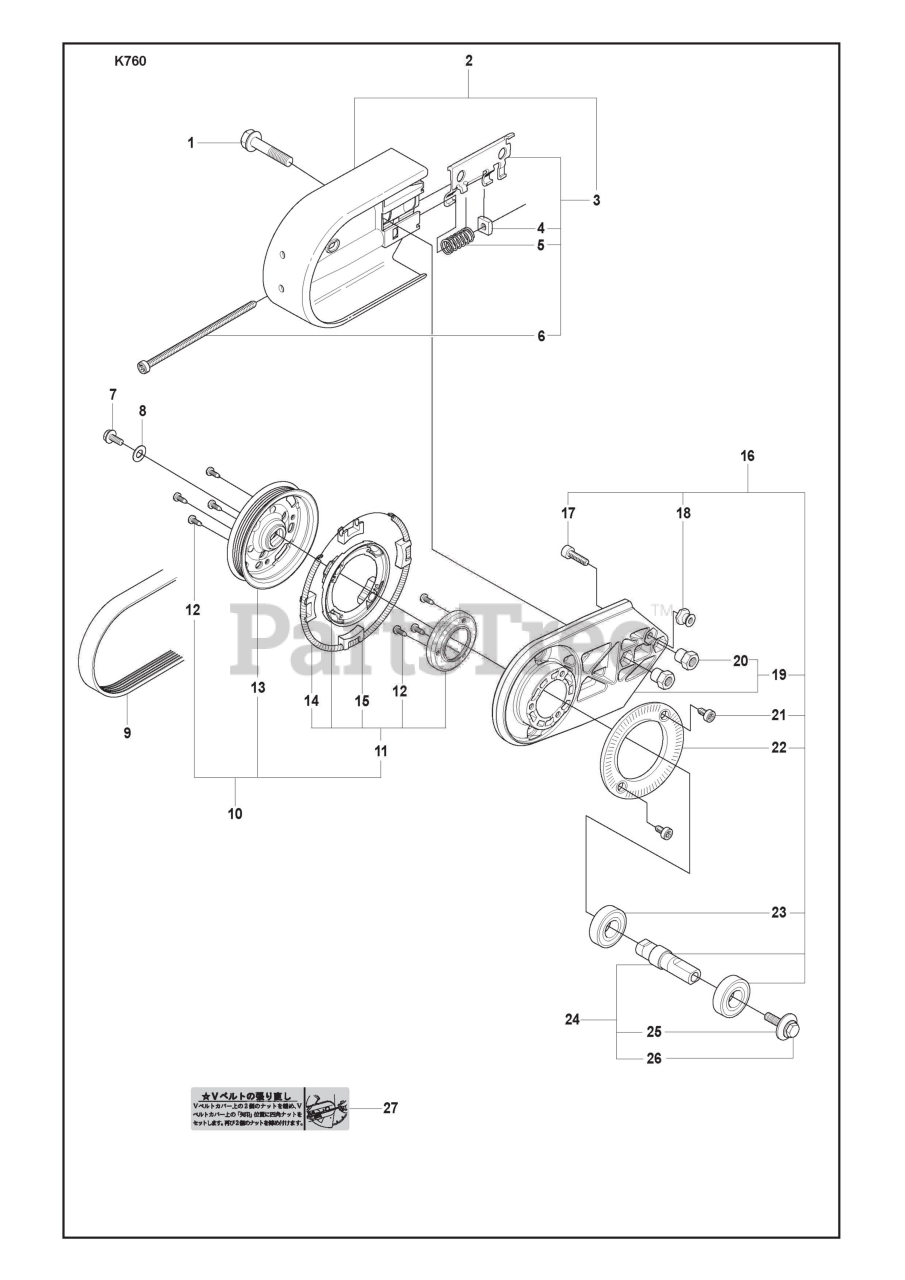

K 760 - Husqvarna Cut-Off Saw (2009-12) Belt Guard Parts Diagram

Cut-Off Saw

Belt Guard Parts Diagram

  • Title

1

Husqvarna 501981020

SCREW ITXSCM

$7.99

$

In Stock, Qty 20+

0

2

Husqvarna 522980801

%BELT GUARD ASSY REAR K750
(Superseded to 581485901)

Note: Incl. 3

$52.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544891101

LABEL

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503744406

CLUTCH ASSY

Note: Incl. 5

$155.99

$

In Stock, Qty 6

0

5

Husqvarna 503744301

CLUTCH SPRING

$9.49

$

In Stock, Qty 19

0

6

Husqvarna 502289202

DRIVING PULLEY ASSY
(Superseded to 590805901)

Note: Incl. 7 - 9

$79.99

$

In Stock, only 2 left!

0

7

Husqvarna 503230070

WASHER
(Superseded to 503230073)

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 525831801

HOLDER BALL BEARING

$26.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506316901

DUST COVER

$9.99

$

In Stock, Qty 8

0

10

Husqvarna 574364101

CRANKCASE ASSY
(Superseded to 581721912)

Note: Incl. 11 - 19, 21 - 23

$658.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506385305

GASKET KIT
(Superseded to 581357402)

Note: Incl. 15, 18, 24 - 29

$39.99

$

In Stock, only 2 left!

0

12

Husqvarna 501981001

SCREW

$3.99

$

In Stock, Qty 10

0

13

Husqvarna 544007801

BRACKET

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503215341

SCREW

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 11

0

16

Husqvarna 501270801

SLEEVE
(Superseded to 593806001)

$9.49

$

In Stock, only 3 left!

0

17

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

$29.99

$

In Stock, only 4 left!

0

18

Husqvarna 506377003

GASKET

$9.99

$

In Stock, Qty 5

0

19

Husqvarna 503846101

BUFFER

$9.49

$

In Stock, Qty 5

0

20

Husqvarna 503226504

NUT

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 503215316

SCREW

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 522474801

WASHER

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 522475701

SPRING RETAINER
(Superseded to 598586901)

$35.99

$

In Stock, Qty 5

0

24

Husqvarna 506412301

GASKET

$11.99

$

In Stock, Qty 5

0

25

Husqvarna 506376902

GASKET
(Superseded to 588932501)

$11.99

$

In Stock, Qty 5

0

26

Husqvarna 506377002

GASKET

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 544219302

INSERT

$5.99

$

In Stock, Qty 5

0

28

Husqvarna 506376701

GASKET

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 506376803

RP GASKET CARBURETOR
(Superseded to 506376804)

$7.99

$

In Stock, Qty 14

0
