K 760 - Husqvarna Cut-Off Saw (2009-12) Belt Guard Parts Diagram

Cut-Off Saw

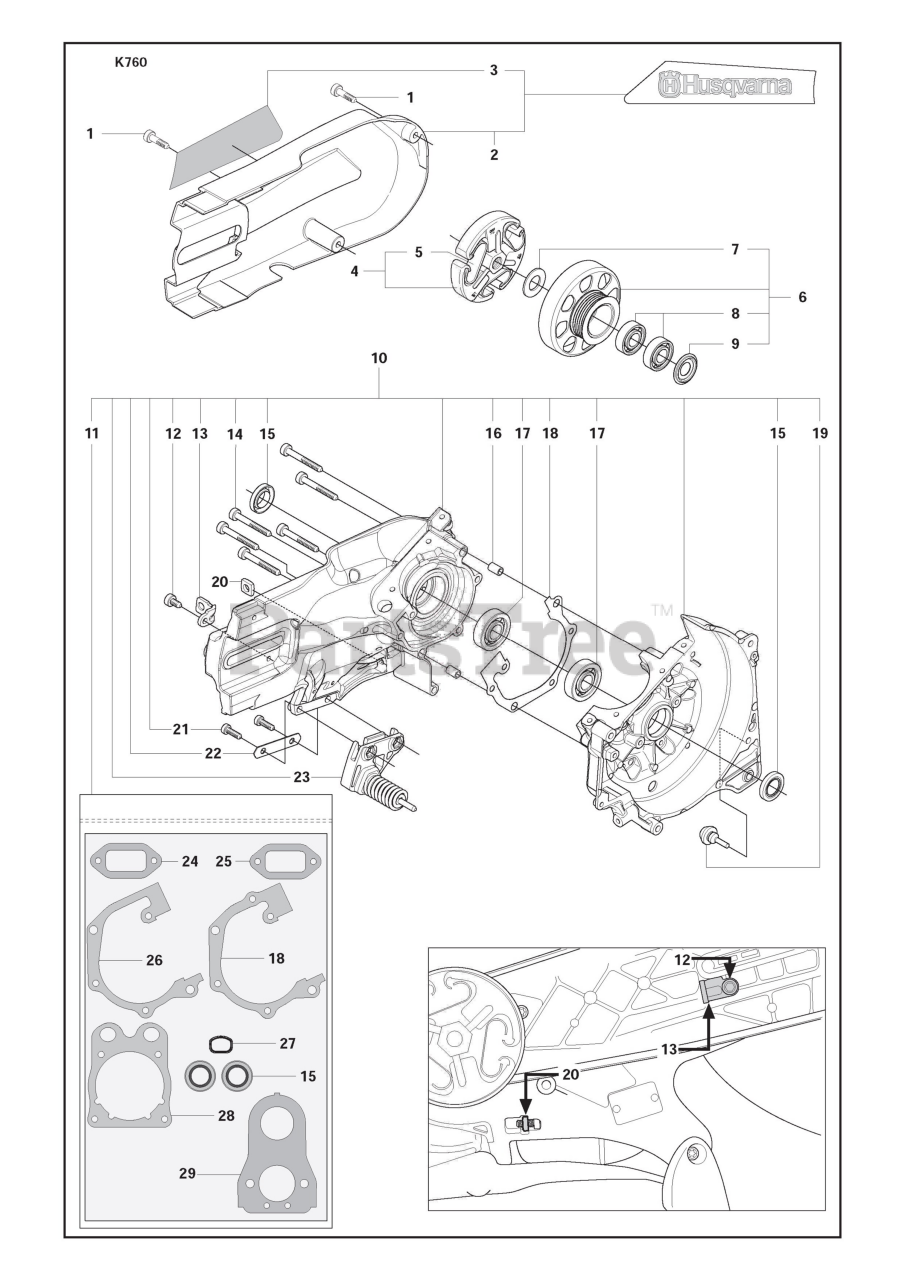

Belt Guard Parts Diagram

  • Title

1

Husqvarna 501981020

Screw

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 522980801

Belt Guard
(Superseded to 581485901)

Note: Incl. 3

$42.99

$

In Stock, Qty 10

0

3

Husqvarna 544891101

Label

$7.99

$

In Stock, only 1 left!

0

4

Husqvarna 503744406

Clutch Assy

Note: Incl. 5

$109.99

$

In Stock, only 4 left!

0

5

Husqvarna 503744301

Clutch Spring

$9.49

$

In Stock, Qty 5

0

6

Husqvarna 502289202

Driving Pulley Assy
(Superseded to 590805901)

Note: Incl. 7 - 9

$80.99

$

In Stock, Qty 5

0

7

Husqvarna 503230070

Washer Steel
(Superseded to 503230073)

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525831801

Ball Bearing

$22.99

$

In Stock, Qty 20+

0

9

Husqvarna 506316901

Dust Cover

$6.99

$

In Stock, Qty 18

0

10

Husqvarna 574364101

Crankcase Assy
(Superseded to 575825901)

Note: Incl. 11 - 19, 21 - 23

$434.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506385305

Gasket Kit
(Superseded to 581357401)

Note: Incl. 15, 18, 24 - 29

$29.99

$

In Stock, Qty 10

0

12

Husqvarna 501981001

Screw

$5.99

$

In Stock, Qty 11

0

13

Husqvarna 544007801

Bracket

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503215341

Screw

$5.99

$

In Stock, only 1 left!

0

15

Husqvarna 503260204

Sealing Ring

$17.99

$

In Stock, Qty 15

0

16

Husqvarna 501270801

Guide Bushing

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 738220225

Ball Bearing

$31.99

$

In Stock, Qty 5

0

18

Husqvarna 506377003

Gasket Crankcase

$9.49

$

In Stock, only 3 left!

0

19

Husqvarna 503846101

Buffer

$8.99

$

In Stock, Qty 11

0

20

Husqvarna 503226504

Nut

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 503215316

Screw

$5.99

$

In Stock, Qty 8

0

22

Husqvarna 522474801

Washer

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 522475701

Spring Retainer

$37.99

$

Usually ships in 3-10 days

0

24

Husqvarna 506412301

Gasket

$8.49

$

In Stock, only 3 left!

0

25

Husqvarna 506376902

Gasket Muffler
(Superseded to 588932501)

$10.99

$

In Stock, only 1 left!

0

26

Husqvarna 506377002

Gasket Crankcase

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 544219302

Insert

$5.99

$

In Stock, Qty 16

0

28

Husqvarna 506376701

Cylinder Base Gasket

$7.99

$

In Stock, only 3 left!

0

29

Husqvarna 506376803

Gasket Carburettor
(Superseded to 506376804)

$6.99

$

In Stock, Qty 10

0
