K 760 - Husqvarna Cut-Off Saw (2009-12) Wheel Guard Cpl And Flange Washer Parts Diagram

Cut-Off Saw

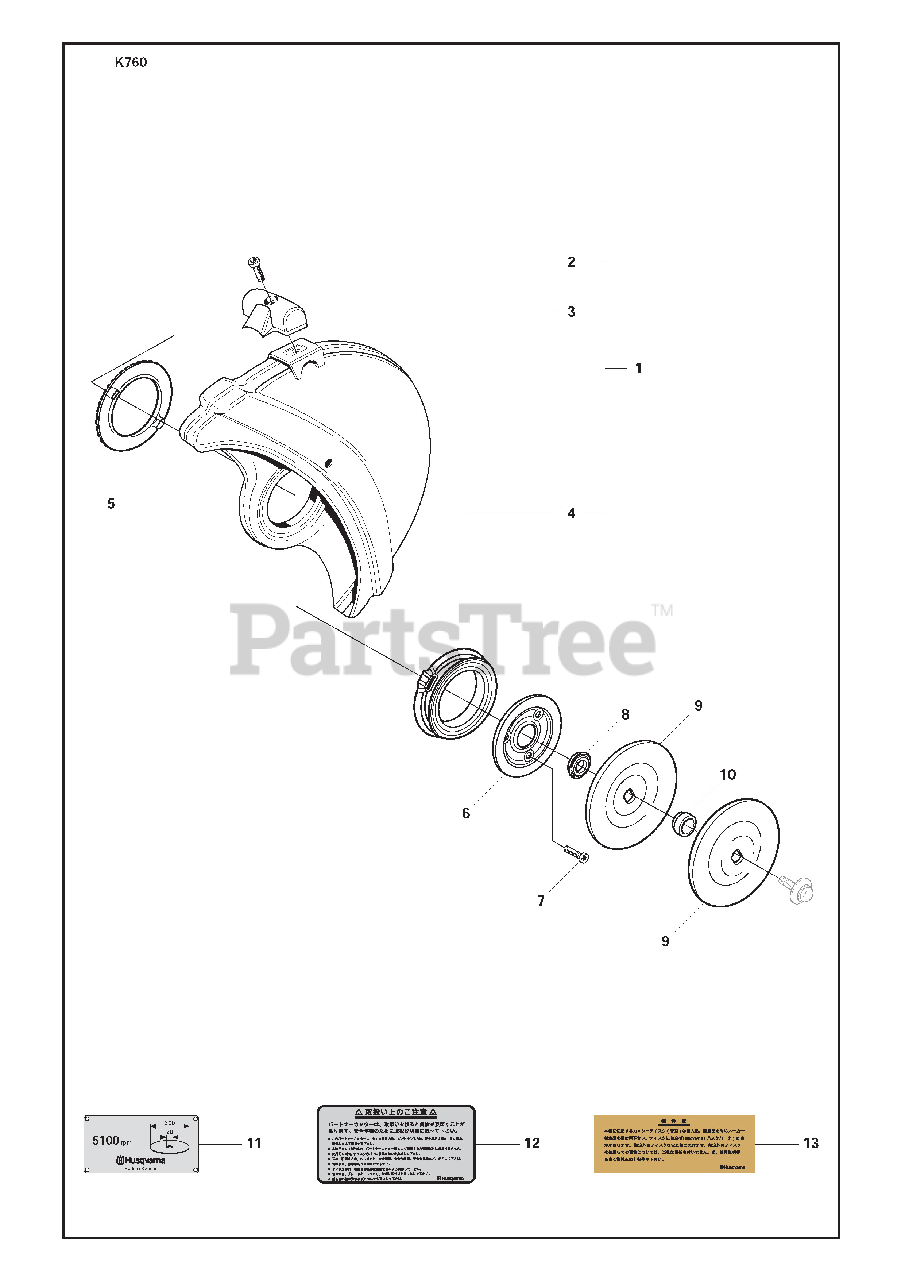

Wheel Guard Cpl And Flange Washer Parts Diagram

  • Title

1

Husqvarna 506340542

WHEEL GUARD ASSY, 12" GREY

Note: 12", Incl. 2 - 4

$295.99

$

In Stock, only 1 left!

0

1

Husqvarna 506340544

WHEEL GUARD ASSY

Note: 14", Incl. 2 - 4

$374.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503215320

SCREW.

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 506344602

HANDLE

$10.99

$

In Stock, only 2 left!

0

4

Husqvarna 506266302

LINING

$33.99

$

In Stock, Qty 6

0

5

Husqvarna 506266401

FLANGE

$12.99

$

In Stock, Qty 10

0

6

Husqvarna 506266501

FLANGE

$17.99

$

In Stock, only 4 left!

0

7

Husqvarna 505574116

SCREW ITXSCM

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 506324801

SLEEVE

$17.99

$

In Stock, only 3 left!

0

9

Husqvarna 506028701

WASHER

Note: Diam 105 mm

$63.99

$

In Stock, Qty 10

0

9

Husqvarna 506070901

WASHER
(Superseded to 506070903)

Note: Diam 119 mm

$45.99

$

In Stock, only 2 left!

0

10

Husqvarna 506379620

BUSHING

Note: Diam 20 mm

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506379622

BUSHING

Note: Diam 22,2 mm

$23.99

$

In Stock, Qty 8

0

10

Husqvarna 506379625

BUSHING
(Superseded to 578398201)

Note: Diam 25,4 mm

$26.99

$

In Stock, Qty 14

0

10

Husqvarna 506028830

BUSHING-30MM

Note: Diam 30,5 mm

$28.99

$

In Stock, only 1 left!

0

11

Husqvarna 506284104

LABEL

Note: 12", Diam 1"

$16.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506284102

Label

Note: 12", Diam 20 mm

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506284114

ARBOR SIZE DECAL/25.4

Note: 14", Diam 1"

$16.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506284112

ARBOR SIZE DECAL/20

Note: 14", Diam 20 mm

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506243435

Label

Note: Japan only

$

$

Not available

13

Husqvarna 506243525

Label

Note: Japan only

$

$

Not available
