K 760 - Husqvarna Cut-Off Saw (2013-02) CRANKCASE Parts Diagram

Cut-Off Saw

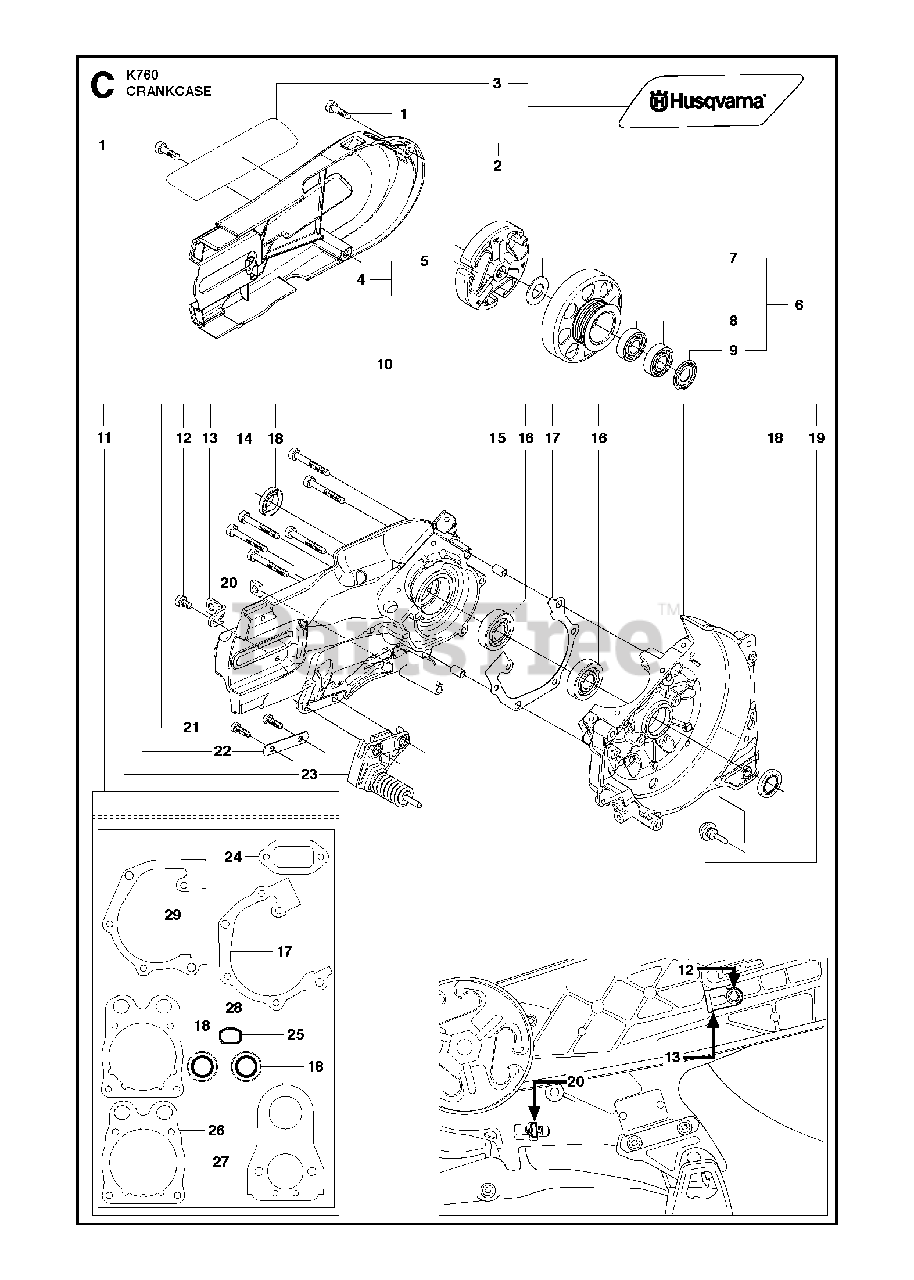

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 501 98 10-20

SCREW ITXSCM

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 581 48 59-01

BELT GUARDIncl. 3

$49.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575 62 85-01

DECAL
(Superseded to 542780102)

$154.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503 74 44-06

CLUTCH ASSYIncl. 5

$147.99

$

In Stock, Qty 11

0

5

Husqvarna 503 74 43-01

CLUTCH SPRING

$8.99

$

In Stock, Qty 7

0

6

Husqvarna 502 28 92-02

DRIVING PULLEY ASSYIncl. 7 - 9
(Superseded to 590805901)

$76.99

$

In Stock, Qty 12

0

7

Husqvarna 503 23 00-70

WASHER
(Superseded to 503230073)

$11.99

$

In Stock, only 2 left!

0

8

Husqvarna 525 83 18-01

BALL BEARING

$

$

Not available

9

Husqvarna 506 31 69-01

DUST COVER

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 581 72 19-01

CRANKCASE ASSYIncl. 11-19, 21-23
(Superseded to 581721912)

$608.99

$

In Stock, only 1 left!

0

11

Husqvarna 581 35 74-01

GASKET KITIncl. 17, 18, 24-29
(Superseded to 581357402)

$37.99

$

In Stock, only 2 left!

0

12

Husqvarna 501 98 10-01

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

13

Husqvarna 544 00 78-01

BRACKET

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503 21 53-41

SCREW ITXSCM

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 501 27 08-01

GUIDE BUSHING
(Superseded to 593806001)

$8.99

$

In Stock, only 3 left!

0

16

Husqvarna 738 22 02-25

BALL BEARING

$28.99

$

Usually ships in 3-10 days

0

17

Husqvarna 506 37 70-03

GASKETSix hole

$8.99

$

In Stock, Qty 7

0

18

Husqvarna 503 26 02-04

SEALING RINGBlue

$17.99

$

In Stock, Qty 20+

0

19

Husqvarna 503 84 61-01

BUFFER

$8.99

$

In Stock, Qty 7

0

20

Husqvarna 503 22 65-04

SQUARE NUT

$5.49

$

In Stock, Qty 20+

0

21

Husqvarna 503 21 53-16

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 522 47 48-01

PLATE

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 522 47 57-01

SPRING RETAINER12"
(Superseded to 598586901)

$33.99

$

In Stock, only 2 left!

0

23

Husqvarna Construction 522 47 57-02

SPRING RETAINER14"

$

$

Currently unavailable

24

Husqvarna 506 37 69-02

GASKET
(Superseded to 588932501)

$10.99

$

In Stock, Qty 19

0

25

Husqvarna 544 21 93-02

INSERT

$5.49

$

In Stock, Qty 7

0

26

Husqvarna 581 28 53-01

GASKET

$10.99

$

In Stock, Qty 20+

0

27

Husqvarna 506 37 68-04

GASKET

$7.49

$

In Stock, Qty 7

0

28

Husqvarna 506 37 67-01

CYLINDER

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 506 37 70-02

GASKETFive hole

$8.99

$

Usually ships in 3-10 days

0
