K 760 - Husqvarna Cut-Off Saw (2013-02) FUEL TANK Parts Diagram

Cut-Off Saw

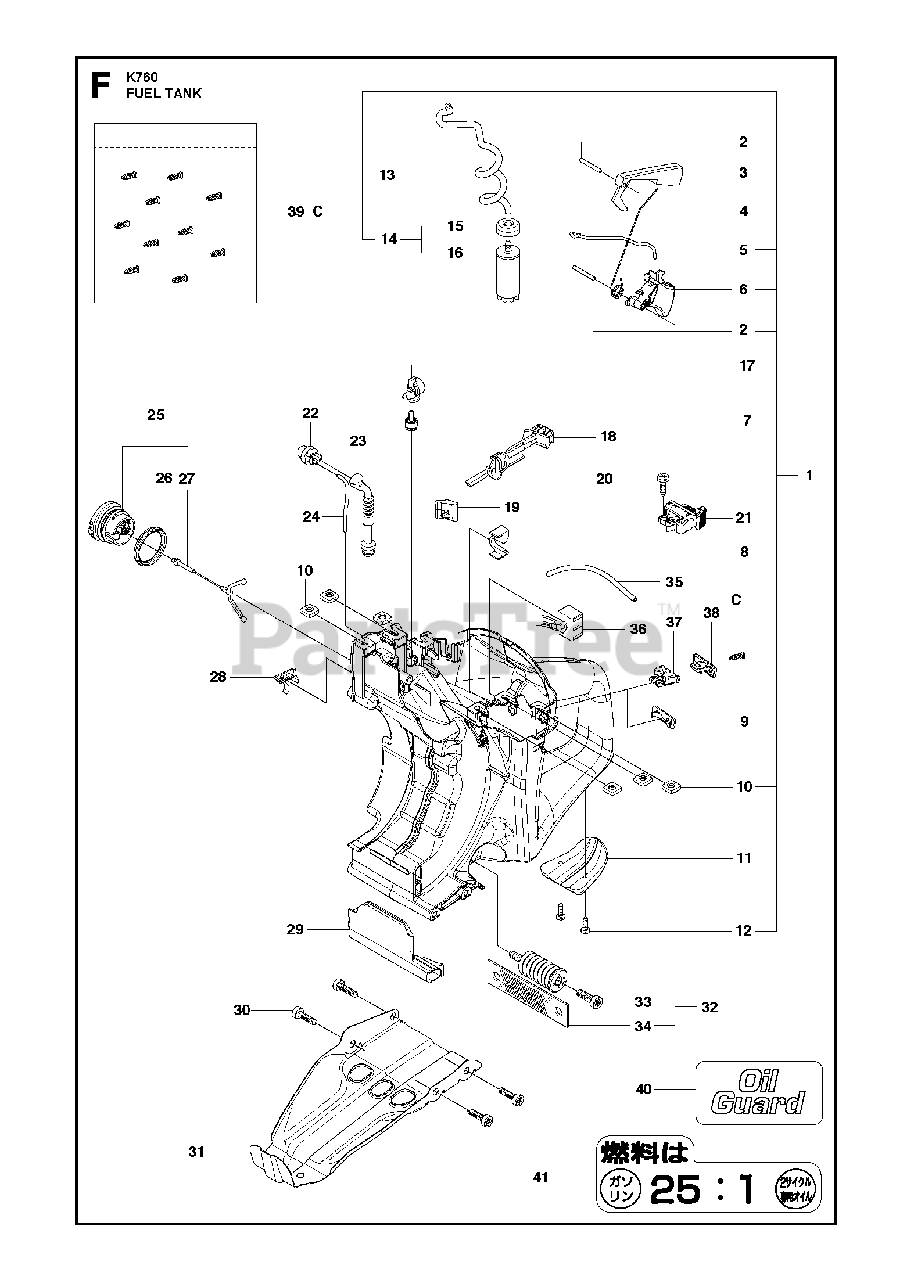

FUEL TANK Parts Diagram

  • Title

1

Husqvarna 581 47 74-01

FUEL TANK ASSYIncl. 2 - 14, 17
(Superseded to 593281802)

$148.99

$

In Stock, only 4 left!

0

2

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 577 32 50-03

THROTTLE LOCKOUT
(Superseded to 588086001)

$22.99

$

In Stock, Qty 6

0

3

Husqvarna 577 32 50-04

THROTTLE LOCKOUTOil Guard

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506 37 95-01

SPRING
(Superseded to 595835701)

$17.99

$

In Stock, Qty 6

0

5

Husqvarna 579 37 92-01

THROTTLE ROD

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577 23 15-01

THROTTLE CONTROL

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 577 23 15-02

THROTTLE CONTROLOil Guard
(Superseded to 588086202)

$17.99

$

In Stock, Qty 9

0

7

Husqvarna 537 35 95-01

TANK VENT ASSY
(Superseded to 501152901)

$15.99

$

In Stock, Qty 20+

0

8

Husqvarna 544 39 32-01

HOSE CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501 37 13-01

LID

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 503 22 65-04

SQUARE NUT

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 506 38 67-02

GROUND SUPPORT

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503 21 45-16

SCREW CRCSFT

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 581 75 62-03

FUEL HOSE

$12.99

$

In Stock, only 2 left!

0

13

Husqvarna 581 75 62-02

FUEL HOSEOil Guard
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 506 26 41-11

FUEL FILTERIncl. 15 - 16

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506 27 11-01

HOSE CLAMP

$6.99

$

In Stock, only 2 left!

0

16

Husqvarna 506 26 41-01

FUEL FILTER

$12.99

$

In Stock, Qty 20+

0

17

Husqvarna 577 31 35-01

TANK VENT VALVE ASSY

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544 22 90-02

CHOKE CONTROL

$17.99

$

In Stock, Qty 7

0

19

Husqvarna 506 37 80-01

GROMMET

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 506 31 86-02

STOP SWITCH
(Superseded to 506318604)

$31.99

$

In Stock, Qty 8

0

22

Husqvarna Construction 540 05 49-01

AIR CLEANERPurge

$12.99

$

In Stock, only 3 left!

0

23

Husqvarna 505 19 52-01

FUEL HOSEPurge

$37.99

$

In Stock, Qty 5

0

24

Husqvarna 537 04 24-14

FUEL HOSEPurge

$7.99

$

In Stock, only 2 left!

0

25

Husqvarna 522 62 00-01

TANK CAP ASSYIncl. 26 - 27

$12.99

$

In Stock, Qty 11

0

26

Husqvarna 537 21 50-01

SEALING

$8.99

$

In Stock, Qty 19

0

27

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

28

Husqvarna 506 39 46-02

HUB CAP

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 506 38 15-01

HEAT SHIELD

$9.49

$

Usually ships in 3-10 days

0

30

Husqvarna 503 21 54-20

SCREW ITXSCT

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 506 37 19-02

BASEPLATE

$29.99

$

Usually ships in 3-10 days

0

32

Husqvarna 537 21 03-07

ANTIVIBRATION ELEMENTIncl. 33 - 34

$29.99

$

In Stock, only 1 left!

0

33

Husqvarna 544 06 12-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 13

0

34

Husqvarna 544 23 82-01

BAND

$9.49

$

Usually ships in 3-10 days

0

35

Husqvarna Construction 581 75 61-17

FUEL HOSEOil Guard

$9.99

$

Usually ships in 3-10 days

0

36

Husqvarna 544 38 41-01

ELECTRONIC BOXOil Guard

$74.99

$

Usually ships in 3-10 days

0

37

Husqvarna 501 01 88-01

HOUSINGOil Guard

$5.49

$

Usually ships in 3-10 days

0

38

Husqvarna 501 01 94-01

SWITCHOil Guard

$10.99

$

In Stock, only 1 left!

0

39

Husqvarna 502 23 33-01

KITOil Guard, Incl. 10 pins

$26.99

$

Usually ships in 3-10 days

0

40

Husqvarna 501 31 89-01

LABELOil Guard

$5.49

$

Usually ships in 3-10 days

0

41

Husqvarna 506 31 30-01

LABELJapan only

$17.99

$

Usually ships in 3-10 days

0
