K 770 - Husqvarna Cut-Off Saw (2017-11) FUEL TANK Parts Diagram

Cut-Off Saw

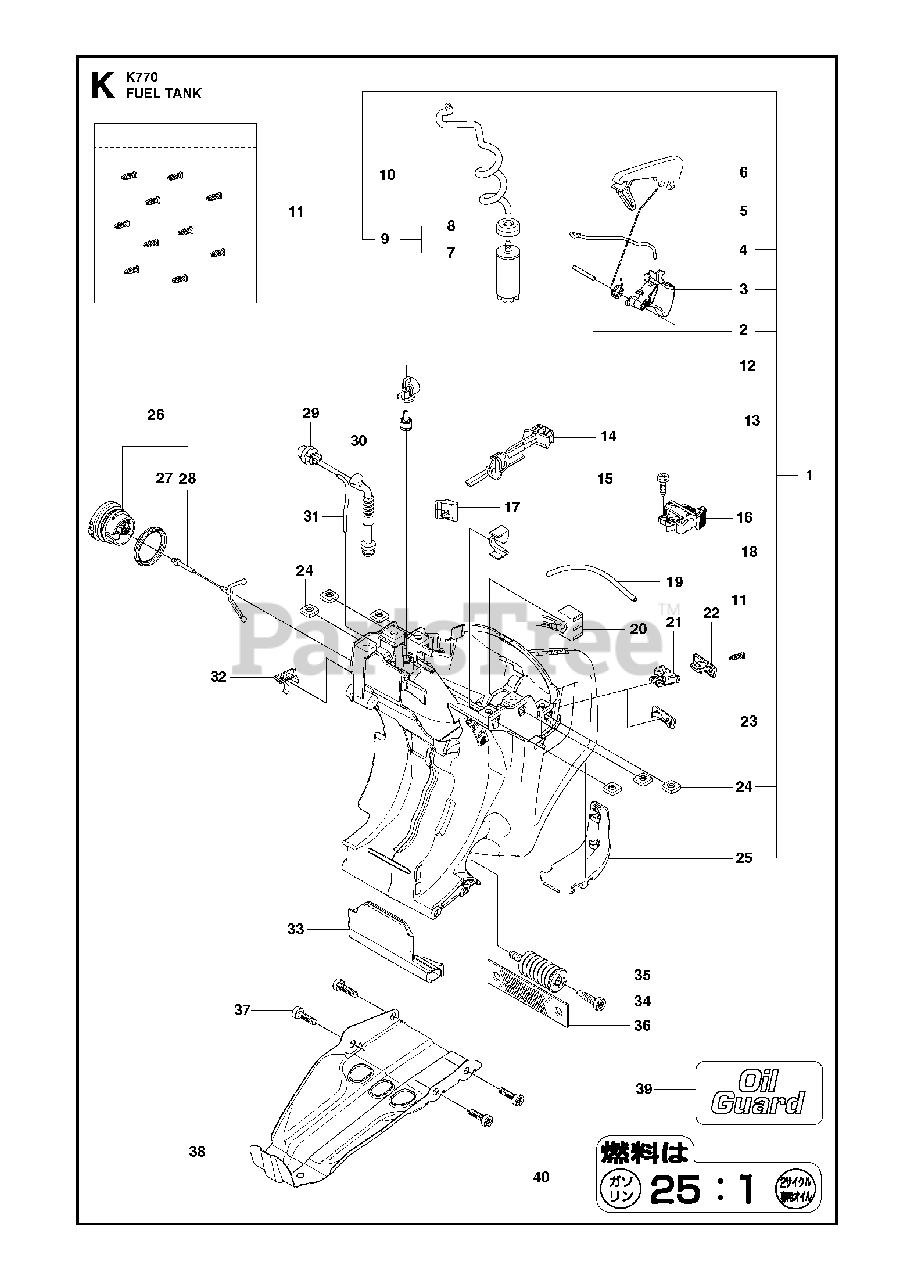

FUEL TANK Parts Diagram

  • Title

1

Husqvarna Construction 593 28 18-01

FUEL TANK ASSYIncl. 2 - 10, 12-13, 18, 23-25

$176.99

$

Usually ships in 3-10 days

0

2

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna Construction 588 08 62-02

THROTTLE CONTROLOIL GUARD

$

$

Not available

3

Husqvarna 588 08 62-01

THROTTLE CONTROL

$17.99

$

In Stock, Qty 8

0

4

Husqvarna 579 37 92-01

THROTTLE ROD

$13.99

$

In Stock, only 1 left!

0

5

Husqvarna 587 74 60-01

SPRING

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 588 13 77-01

THROTTLE LOCKOUT

$25.99

$

In Stock, Qty 6

0

6

Husqvarna Construction 588 13 77-02

THROTTLE LOCKOUTOIL GUARD

$

$

Currently unavailable

7

Husqvarna 506 26 41-01

FUEL FILTER

$12.99

$

In Stock, Qty 20+

0

8

Husqvarna 506 27 11-01

HOSE CLAMP

$6.99

$

In Stock, only 2 left!

0

9

Husqvarna 506 26 41-11

FUEL FILTERIncl. 7 - 8

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 581 75 62-03

FUEL HOSE

$12.99

$

In Stock, only 1 left!

0

10

Husqvarna 581 75 62-02

FUEL HOSEOil Guard
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 502 23 33-01

KITOil Guard. Incl. 10 pins

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 577 31 35-01

TANK VENT VALVE ASSY

$24.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 501 15 29-01

TANK VENT ASSY

$15.99

$

In Stock, Qty 20+

0

14

Husqvarna 544 22 90-02

CHOKE CONTROL

$17.99

$

In Stock, Qty 7

0

15

Husqvarna 525 88 74-02

SCREW CITXPANT

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 506 31 86-04

STOP SWITCH

$31.99

$

In Stock, Qty 8

0

17

Husqvarna 506 37 80-01

GROMMET

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544 39 32-01

HOSE CLIP

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 581 75 61-17

FUEL HOSE

$9.99

$

Usually ships in 3-10 days

0

20

Husqvarna 544 38 41-01

ELECTRONIC BOX

$74.99

$

Usually ships in 3-10 days

0

21

Husqvarna 501 01 88-01

HOUSING

$5.49

$

Usually ships in 3-10 days

0

22

Husqvarna 501 01 94-01

SWITCH

$10.99

$

In Stock, only 1 left!

0

23

Husqvarna 501 37 13-01

LID

$6.99

$

In Stock, only 1 left!

0

24

Husqvarna Construction 581 77 48-01

NUT

$

$

Currently unavailable

25

Husqvarna Construction 588 19 82-01

GROUND SUPPORT

$

$

Currently unavailable

26

Husqvarna 522 62 00-03

TANK CAP ASSY

$12.99

$

In Stock, Qty 10

0

27

Husqvarna 589 24 11-01

GASKET

$8.99

$

In Stock, Qty 17

0

28

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

29

Husqvarna Construction 540 05 49-01

AIR CLEANER

$12.99

$

In Stock, only 2 left!

0

30

Husqvarna 505 19 52-01

FUEL HOSE

$37.99

$

In Stock, only 3 left!

0

31

Husqvarna 537 04 24-14

FUEL HOSE

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 506 39 46-02

HUB CAP

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 506 38 15-01

HEAT SHIELD

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 544 06 12-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 13

0

35

Husqvarna 537 21 03-09

ANTIVIBRATION ELEMENT

$22.99

$

In Stock, only 3 left!

0

36

Husqvarna 544 23 82-01

BAND

$9.49

$

Usually ships in 3-10 days

0

37

Husqvarna 503 21 54-20

SCREW ITXSCT

$5.99

$

In Stock, only 2 left!

0

38

Husqvarna 506 37 19-02

BASEPLATE

$29.99

$

Usually ships in 3-10 days

0

39

Husqvarna Construction 581 09 54-02

DECALOil Guard

$11.99

$

Usually ships in 3-10 days

0

40

Husqvarna 506 31 30-01

LABELJapan Only

$17.99

$

Usually ships in 3-10 days

0
