K 950 Chain - Husqvarna Cut-Off Saw (2007-01) STARTER Parts Diagram

Cut-Off Saw

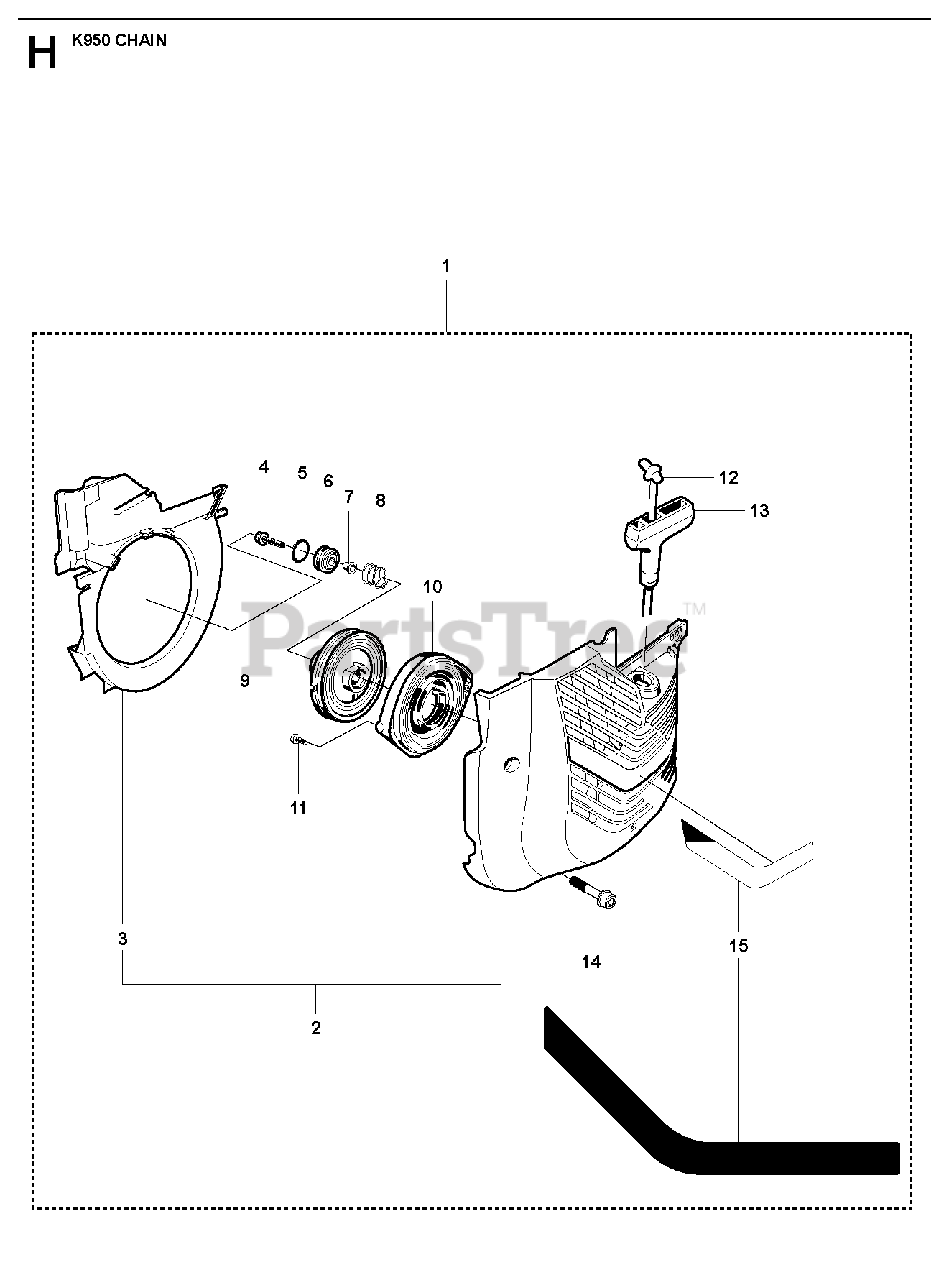

STARTER Parts Diagram

  • Title

1

Husqvarna Construction 506 23 59-11

STARTERIncl. 2 - 15

$

$

Not available

2

Husqvarna Construction 506 33 72-03

STARTER COVERIncl. 3

$

$

Not available

3

Husqvarna Construction 506 22 22-02

AIR CONDUCTOR

$

$

Not available

4

Husqvarna 503 21 67-22

SCREW IHSCFT

$6.49

$

In Stock, Qty 12

0

5

Husqvarna 740 43 13-00

O-RING

$7.99

$

In Stock, Qty 12

0

6

Husqvarna 506 25 14-01

GROMMET
(Superseded to 510000801)

$6.99

$

In Stock, Qty 12

0

7

Husqvarna 506 26 31-01

SPACING SLEEVE

$9.49

$

In Stock, Qty 11

0

8

Husqvarna 506 25 30-01

COMPRESSION SPRING

$7.49

$

In Stock, Qty 12

0

9

Husqvarna 506 25 81-02

STARTER PULLEY

$25.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506 25 89-01

RECOIL SPRING

$

$

Not available

10

Husqvarna 503 21 28-10

SCREW CCRPANT

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 506 33 56-15

CORD

$29.99

$

In Stock, only 2 left!

0

12

Husqvarna 506 33 56-50

STARTER CORD50 m. coil

$625.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503 12 79-01

STARTER HANDLE
(Superseded to 584257902)

$9.49

$

In Stock, only 2 left!

0

14

Husqvarna 503 20 59-20

SCREW IHSCFMO

$

$

Not available

15

Husqvarna Construction 506 27 23-02

LABEL

$16.33

$

Usually ships in 3-10 days

0
