K 950 - Husqvarna Cut-Off Saw (2007-01) FUEL TANK & HANDLE Parts Diagram

Cut-Off Saw

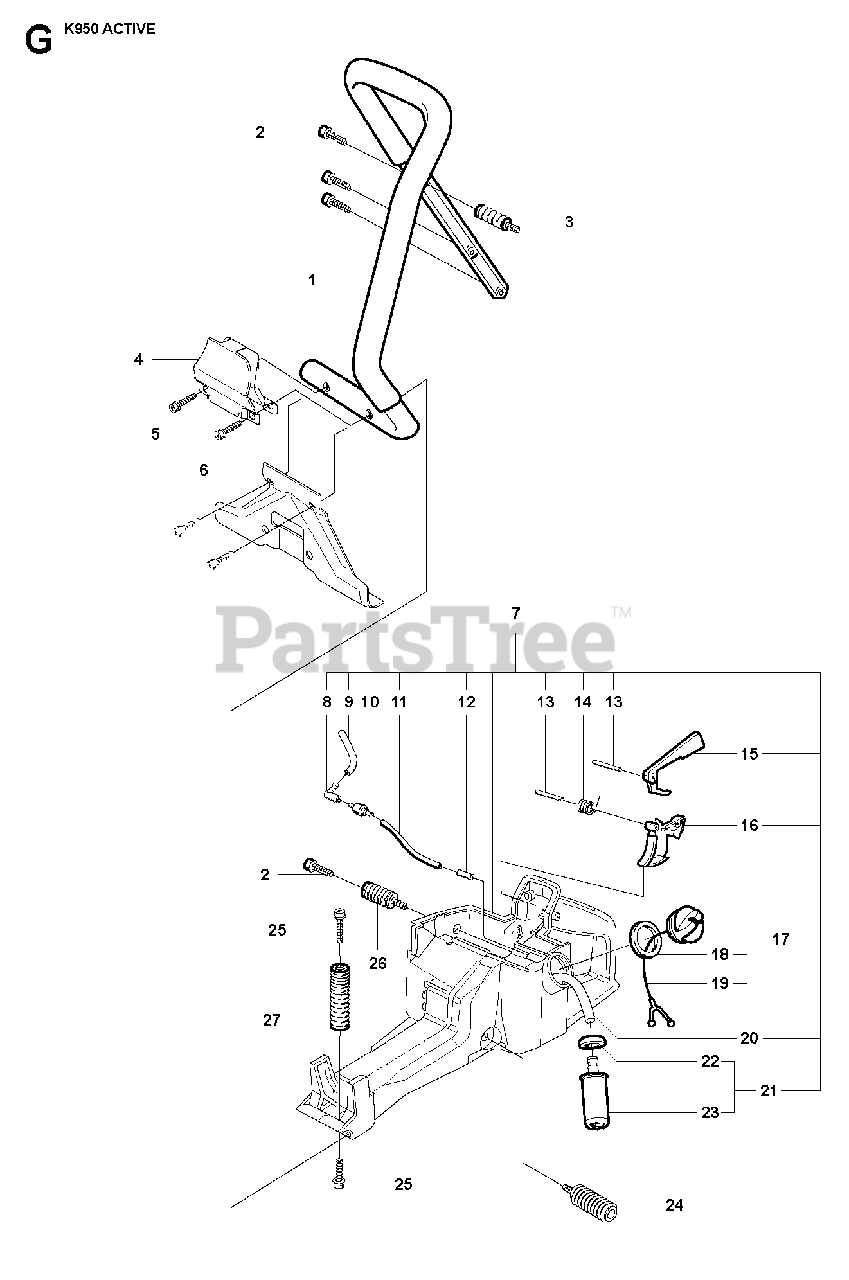

FUEL TANK & HANDLE Parts Diagram

  • Title

1

Husqvarna Construction 506 23 13-02

FRONT HANDLE

$

$

Not available

2

Husqvarna 503 21 05-22

SCREW IHSCT

$5.49

$

In Stock, Qty 20+

0

3

Husqvarna Construction 506 28 53-01

ANTIVIBRATION ELEMENT

$54.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 506 29 79-01

PROTECTIVE PLATE

$21.00

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 503 21 05-45

SCREW IHSCT

$

$

Not available

6

Husqvarna Construction 506 23 30-01

GROUND SUPPORT"14"", 16"""

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506 21 68-13

FUEL TANKIncl. 8 - 16, 20, 21
(Superseded to 544892010)

$246.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503 45 46-01

CONNECTION BEND

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 544 32 49-06

FUEL HOSE
(Superseded to 581756106)

$7.49

$

In Stock, Qty 9

0

10

Husqvarna 506 23 61-01

TANK VENT

$28.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 501 76 83-31

FUEL HOSE

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506 28 95-01

NIPPLE

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

14

Husqvarna 506 22 29-01

SPRING THROTTLE TRIG

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506 22 28-02

THROTTLE LOCKOUT
(Superseded to 577325003)

$28.99

$

In Stock, only 2 left!

0

16

Husqvarna Construction 506 22 27-02

THROTTLE TRIGGER

$

$

Not available

17

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 18, 19
(Superseded to 506255906)

$17.99

$

In Stock, only 2 left!

0

18

Husqvarna 506 29 21-01

GASKET

$10.99

$

In Stock, only 2 left!

0

19

Husqvarna 503 57 89-01

HOLDER

$5.99

$

In Stock, Qty 7

0

20

Husqvarna 503 57 76-02

FUEL HOSE
(Superseded to 581756202)

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 506 26 41-11

FUEL FILTERIncl. 22, 23
(Superseded to 598836601)

$17.99

$

In Stock, Qty 20+

0

22

Husqvarna 506 27 11-01

HOSE CLAMP

$7.49

$

In Stock, Qty 10

0

23

Husqvarna 506 26 41-01

FUEL FILTER

$16.99

$

In Stock, Qty 20+

0

24

Husqvarna Construction 544 38 31-01

SPRING

$44.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503 20 02-16

SCREW IHSCFM

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna Construction 506 23 75-01

ANTIVIBRATION ELEMENT

$33.99

$

Usually ships in 3-10 days

0

27

Husqvarna 503 46 85-01

ANTIVIBRATION ELEMENT

$35.99

$

In Stock, only 1 left!

0
