K 960 - Husqvarna Cut-Off Saw (2007-07) Carburetor, Parts Parts Diagram

Cut-Off Saw

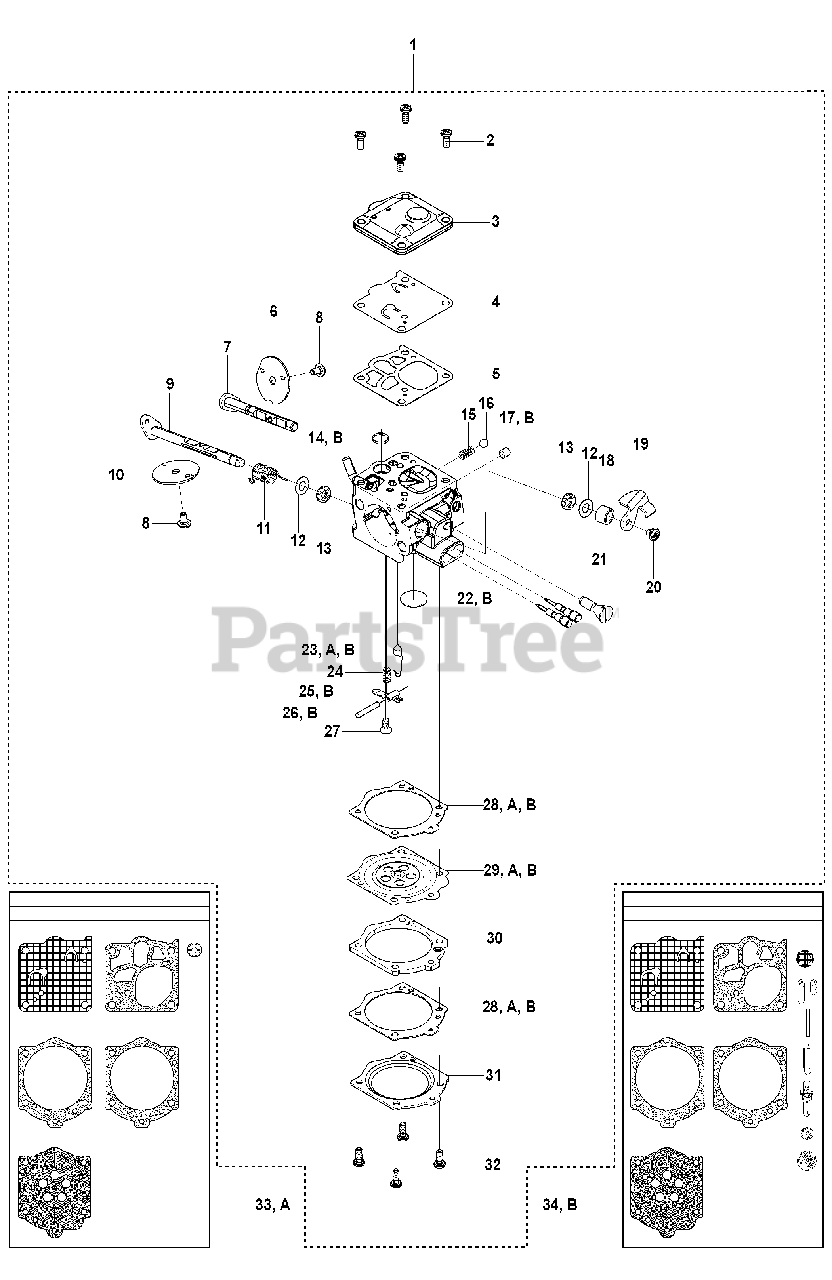

Carburetor, Parts Parts Diagram

  • Title

1

Husqvarna 544266101

CARBURETTOR
(Superseded to 502623201)

Note: Incl. 2 - 32

$261.99

$

In Stock, only 1 left!

0

2

Husqvarna 503117501

SCREW-PUMP COVER

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544896201

PUMP COVER
(Superseded to 503595801)

$33.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544897201

DIAPHRAGM PUMP

Note: A, B

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503117201

GASKET-PUMP

Note: A, B

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 504135201

VALVE

$20.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544896701

SHAFT

$77.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544111501

SCREW

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 544896401

SHAFT

$90.99

$

Usually ships in 3-10 days

0

10

Husqvarna 504135301

VALVE

$

$

Not available

11

Husqvarna 544956801

SPRING

$26.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505316748

WASHER

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503564501

SEAL-THROTTLE SHAFT

$21.99

$

Usually ships in 3-10 days

0

14

Husqvarna 501666101

SCREEN-INLET

Note: B

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503117701

SPRING-CHOKE FRICT.

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503117101

BALL-CHOKE FRICTION

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530035157

PLUG

$

$

Not available

18

Husqvarna 537002601

SPACER

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544896001

LEVER

$26.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501468701

SCREW

$6.49

$

In Stock, only 2 left!

0

21

Husqvarna 544897601

SCREW

$

$

Not available

22

Husqvarna 503574101

PLUG-WELCH

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 503632501

VALVE -INLET NEEDLE
(Superseded to 503563401)

Note: A, B

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503117601

SPRING-METER.LEVER

$

$

Not available

25

Husqvarna 505316734

LEVER-METERING

Note: B

$3.99

$

In Stock, Qty 7

0

26

Husqvarna 505316731

PIN-METERING LEVER

Note: B

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 505316717

SCREW-LEVER PIN

$3.49

$

In Stock, Qty 5

0

28

Husqvarna 544897101

GASKET

Note: A, B

$

$

Not available

29

Husqvarna 544897401

DIAPHRAGM ASSY

Note: A, B

$

$

Not available

30

Husqvarna 544897901

PLATE

$

$

Not available

31

Husqvarna 544896301

COVER

$

$

Not available

32

Husqvarna 537002001

SCREW

$

$

Not available

33

Husqvarna 502445801

GASKET KIT

Note: Kit A. D10-RWJ

$37.99

$

In Stock, only 2 left!

0

34

Husqvarna 502445901

REPAIR KIT
(Superseded to 502445903)

Note: Kit B. K10-RWJ

$45.99

$

In Stock, only 2 left!

0
