K 960 - Husqvarna Cut-Off Saw (2007-07) Cylinder Assy and Muffler Parts Diagram

Cut-Off Saw

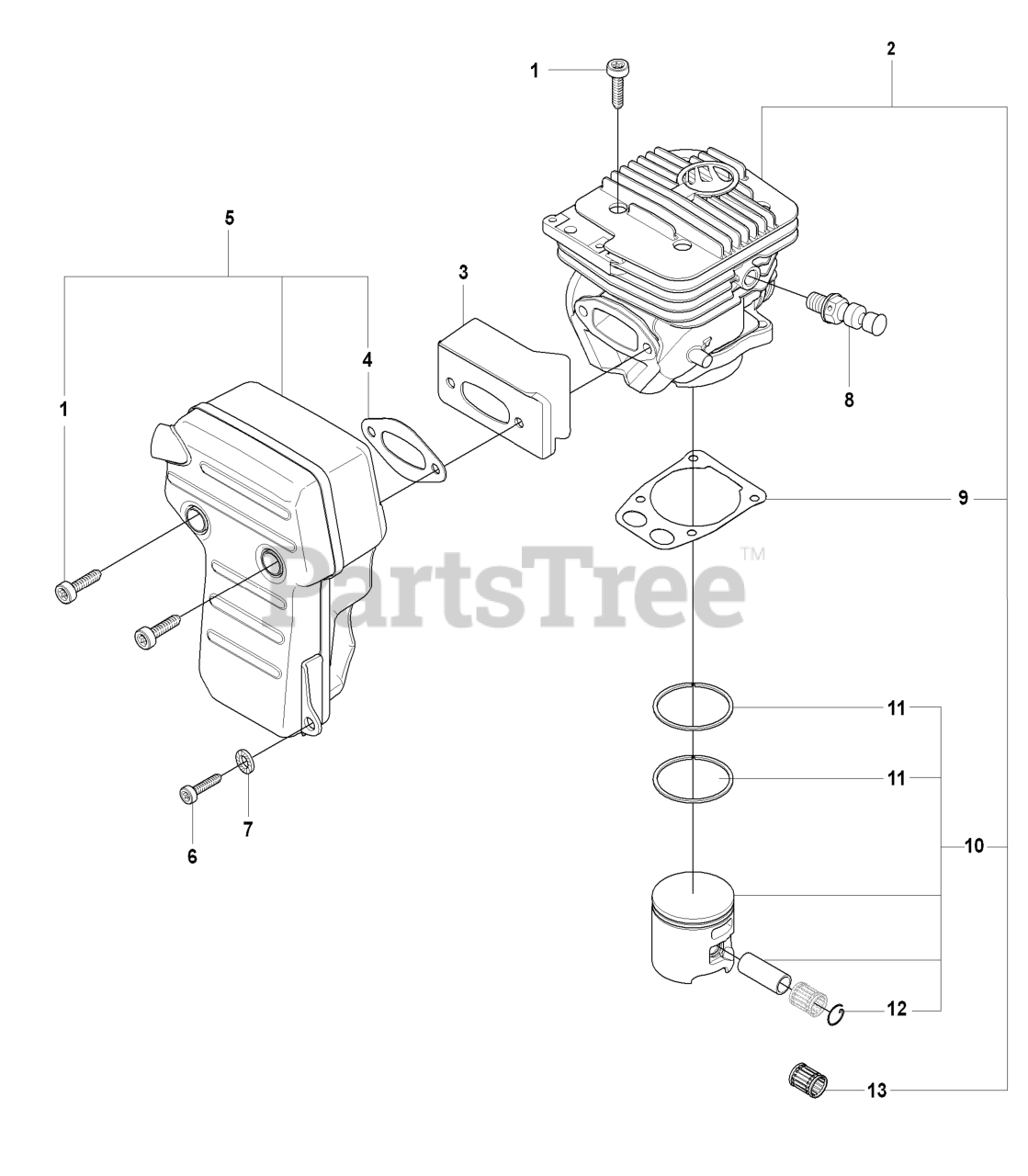

Cylinder Assy and Muffler Parts Diagram

  • Title

1

Husqvarna 544218401

SCREW

$5.49

$

In Stock, Qty 13

0

2

Husqvarna 544935602

RP CYLINDER ASSY
(Superseded to 544935605)

Note: Incl. 9, 10, 13

$820.99

$

Usually ships in 3-10 days

0

3

Husqvarna 544215202

HEAT DEFLECTOR

$

$

Not available

4

Husqvarna 506378101

GASKET MUFFLER
(Superseded to 585280901)

$9.99

$

In Stock, Qty 20+

0

5

Husqvarna 506372803

%MUFFLER
(Superseded to 587631101)

Note: Incl. 1, 4

$143.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503215325

SCREW

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 503230402

DOUBLE WASHER

$9.99

$

In Stock, Qty 14

0

8

Husqvarna 503665601

VALVE

$74.99

$

In Stock, only 2 left!

0

9

Husqvarna 506414001

RP GASKET
(Superseded to 576499401)

$30.99

$

Usually ships in 3-10 days

0

10

Husqvarna 506413202

PISTON

Note: Incl. 11, 12

$240.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503289035

PISTON RING

$21.99

$

In Stock, only 2 left!

0

12

Husqvarna 737441300

CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503256101

SUPPORT BUSHING

$33.99

$

In Stock, only 2 left!

0
