K 960 - Husqvarna Cut-Off Saw (2007-07) Handle and Fuel Tank and Fuel Filter Parts Diagram

Cut-Off Saw

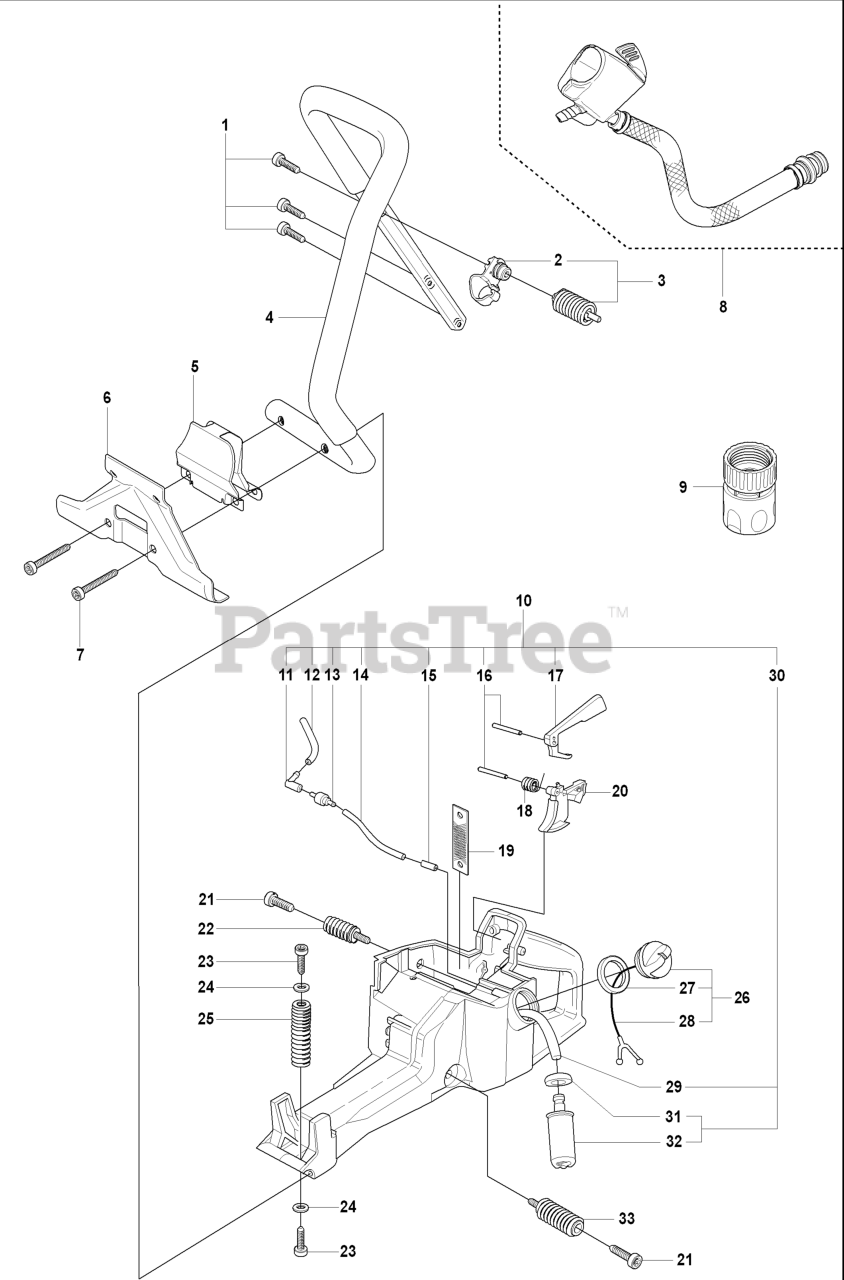

Handle and Fuel Tank and Fuel Filter Parts Diagram

  • Title

1

Husqvarna 503215420

SCREW

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 544020802

SPRING RETAINER

$

$

Not available

3

Husqvarna 506389103

%VIBRATION ABSORBER
(Superseded to 505424502)

Note: Incl. 2

$41.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544456801

HANDLE

$167.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506297903

PROTECTIVE PLATE

$67.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506233001

GROUND SUPPORT

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503215445

SCREW

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 506385904

RP HOSE
(Superseded to 505095501)

$55.99

$

In Stock, only 3 left!

0

9

Husqvarna 503266002

FEMALE QUICK COUPLER
(Superseded to 503266003)

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna 544892006

FUEL TANK
(Superseded to 544892010)

Note: Incl. 11 - 17, 30

$246.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503454601

CONNECTOR

$7.49

$

In Stock, only 2 left!

0

12

Husqvarna 501768305

HOSE
(Superseded to 544324906)

$7.49

$

In Stock, only 4 left!

0

13

Husqvarna 506236101

TANK VENT

$

$

Not available

14

Husqvarna 544324932

FUEL HOSE
(Superseded to 581756132)

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 506289501

NIPPLE

$15.99

$

Usually ships in 3-10 days

0

16

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

17

Husqvarna 506222802

THROTTLE LOCKOUT
(Superseded to 577325003)

$28.99

$

In Stock, only 3 left!

0

18

Husqvarna 506222901

SPRING

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544238201

BAND

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506222703

THROTTLE TRIGGER

$

$

Not available

21

Husqvarna 544061201

SCREW

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 537210309

AV ELEMENT

$25.99

$

In Stock, only 2 left!

0

23

Husqvarna 503215316

SCREW

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 503230011

WASHER 5.3X12

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503468501

SPRING FRONT

$35.99

$

In Stock, only 1 left!

0

26

Husqvarna 506255903

TANK CAP ASSY
(Superseded to 506255906)

Note: Incl. 27, 28

$17.99

$

In Stock, only 3 left!

0

27

Husqvarna 506292101

GASKET

$10.99

$

In Stock, only 2 left!

0

28

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 5

0

29

Husqvarna 503577602

HOSE
(Superseded to 581756202)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 506264111

FILTER
(Superseded to 598836601)

Note: Incl. 31, 32

$17.99

$

In Stock, only 4 left!

0

31

Husqvarna 506271101

CAP

$7.49

$

In Stock, Qty 8

0

32

Husqvarna 506264101

FILTER

$16.99

$

In Stock, Qty 16

0

33

Husqvarna 544383102

SPRING

$44.99

$

Usually ships in 3-10 days

0
