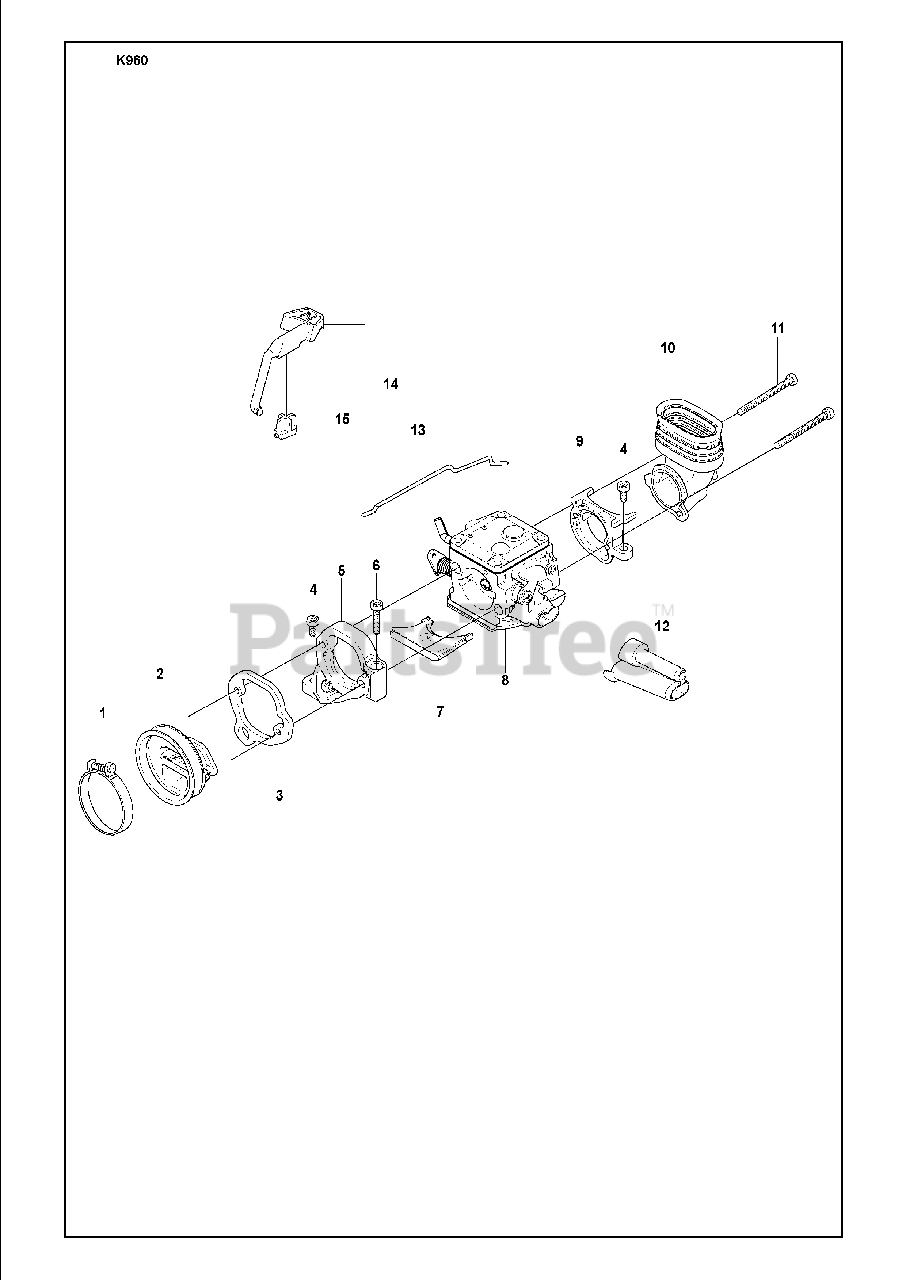

K 960 - Husqvarna Cut-Off Saw (2008-12) Carburettot And Intake System Parts Diagram

Cut-Off Saw

Carburettot And Intake System Parts Diagram

  • Title

1

Husqvarna 505283306

Hose Clamp
(Superseded to 505283310)

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 506414101

Inlet Pipe

$87.99

$

In Stock, only 1 left!

0

3

Husqvarna 544150101

Flange

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503215316

Screw

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 544113901

Console

$22.99

$

In Stock, only 2 left!

0

6

Husqvarna 503215330

Screw

$9.49

$

In Stock, only 2 left!

0

7

Husqvarna 506414201

Plate

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 502623201

Carburettor

Note: Walbro RWJ-3

$261.99

$

In Stock, only 1 left!

0

9

Husqvarna 544111701

Flange

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544331901

Inlet Bend

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501971801

Screw
(Superseded to 501971802)

$5.49

$

Usually ships in 3-10 days

0

12

Husqvarna 544232601

Chisel Guide
(Superseded to 586062101)

$

$

Not available

13

Husqvarna 505443101

Throttle Rod

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna 506232011

Choke

Note: Incl. 15

$22.99

$

In Stock, Qty 10

0

15

Husqvarna 506272501

Wear Protection

$6.99

$

In Stock, only 3 left!

0
