K 960 Rescue - Husqvarna Rescue Saw (2007-07) FUEL TANK & HANDLE Parts Diagram

Rescue Saw

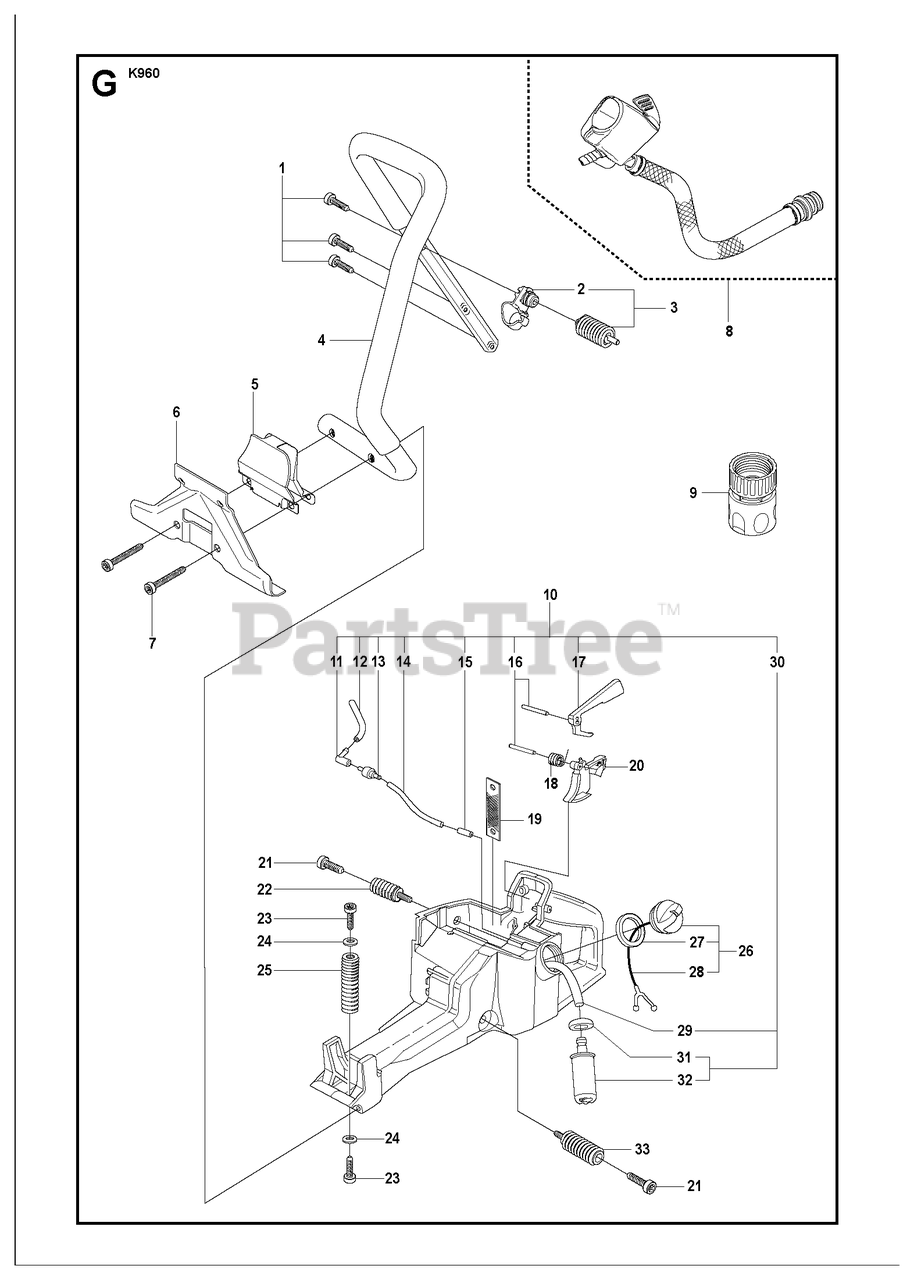

FUEL TANK & HANDLE Parts Diagram

  • Title

1

Husqvarna 503 21 54-20

SCREW ITXSCT

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna Construction 544 02 08-02

SPRING RETAINER

$

$

Not available

3

Husqvarna 506 38 91-03

ANTIVIBRATION ELEMENTIncl. 2
(Superseded to 505424502)

$37.99

$

In Stock, only 2 left!

0

4

Husqvarna 544 45 68-01

HANDLE

$133.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506 29 79-03

PROTECTIVE PLATE

$55.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 506 23 30-01

GROUND SUPPORT

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 21 54-45

SCREW ITXSCT

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 506 38 59-04

HOSE ASSY
(Superseded to 505095501)

$50.99

$

In Stock, only 2 left!

0

9

Husqvarna 503 26 60-02

COUPLER
(Superseded to 503266003)

$10.99

$

In Stock, Qty 17

0

10

Husqvarna 544 89 20-06

FUEL TANKIncl. 11 - 17, 30
(Superseded to 544892010)

$193.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503 45 46-01

CONNECTION BEND

$6.99

$

In Stock, Qty 5

0

12

Husqvarna 501 76 83-05

FUEL HOSE
(Superseded to 581756106)

$8.99

$

In Stock, Qty 9

0

13

Husqvarna 506 23 61-01

TANK VENT

$

$

Not available

14

Husqvarna 544 32 49-32

FUEL HOSE
(Superseded to 581756132)

$

$

Not available

15

Husqvarna 506 28 95-01

NIPPLE

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna 720 12 40-20

PARALLEL PIN
(Superseded to 720182520)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 506 22 28-02

THROTTLE LOCKOUT
(Superseded to 588086001)

$22.99

$

In Stock, Qty 6

0

18

Husqvarna 506 22 29-01

SPRING THROTTLE TRIG

$

$

Not available

19

Husqvarna 544 23 82-01

BAND

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 506 22 27-03

TRIGGER

$23.99

$

In Stock, only 1 left!

0

21

Husqvarna 544 06 12-01

SCREW ITXSCM

$5.99

$

In Stock, Qty 13

0

22

Husqvarna 537 21 03-09

ANTIVIBRATION ELEMENT

$22.99

$

In Stock, Qty 5

0

23

Husqvarna 503 21 53-16

SCREW ITXSCM

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503 23 00-11

WASHER

$6.49

$

In Stock, only 3 left!

0

25

Husqvarna 503 46 85-01

ANTIVIBRATION ELEMENT

$31.99

$

In Stock, only 1 left!

0

26

Husqvarna 506 25 59-03

TANK CAP ASSYIncl. 27, 28
(Superseded to 506255906)

$15.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506 29 21-01

GASKET

$8.49

$

In Stock, only 2 left!

0

28

Husqvarna 503 57 89-01

HOLDER

$9.99

$

In Stock, Qty 15

0

29

Husqvarna 503 57 76-02

FUEL HOSE
(Superseded to 591375201)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 506 26 41-11

FUEL FILTERIncl. 31, 32

$14.99

$

Usually ships in 3-10 days

0

31

Husqvarna 506 27 11-01

HOSE CLAMP

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 506 26 41-01

FUEL FILTER

$12.99

$

In Stock, Qty 20+

0

33

Husqvarna 544 38 31-02

SPRING

$34.99

$

Usually ships in 3-10 days

0
