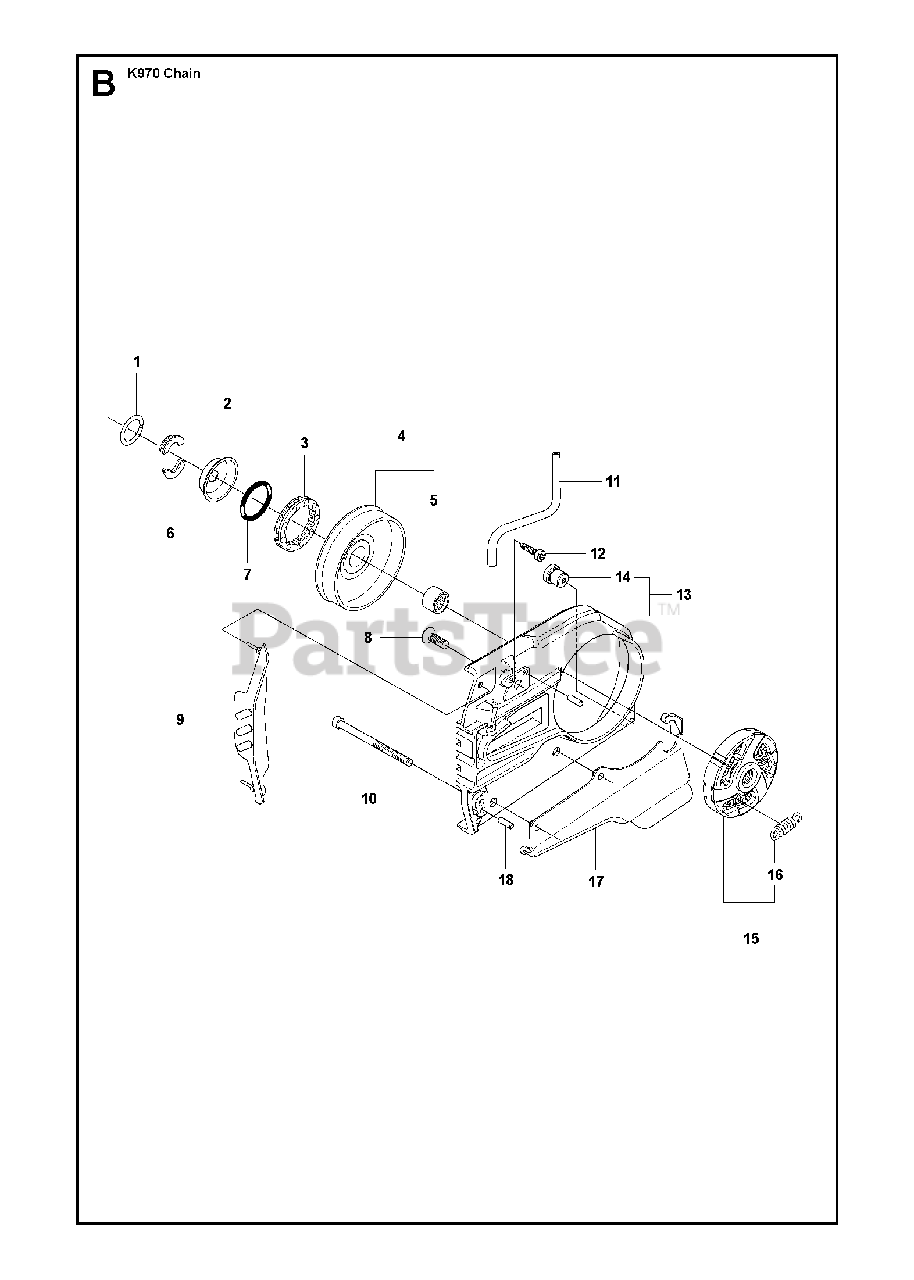

K 970 Chain - Husqvarna Cut-Off Saw (2011-12) CLUTCH Parts Diagram

Cut-Off Saw

CLUTCH Parts Diagram

  • Title

1

Husqvarna 506 28 76-01

RETAINER RING

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 506 33 44-01

SUPPORT CUP

$33.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 506 33 42-01

RIM SPROCKET

$71.99

$

In Stock, only 1 left!

0

4

Husqvarna Construction 506 34 09-11

GEAR WHEELIncl. 5

$138.99

$

In Stock, only 2 left!

0

5

Husqvarna 503 25 53-01

NEEDLE BEARING

$30.99

$

Usually ships in 3-10 days

0

6

Husqvarna 506 28 75-02

CIRCLIP

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 740 44 07-00

O-RING

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 725 64 53-01

SCREW IHCSFM

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 506 35 44-02

WEAR PROTECTION

$25.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503 21 53-65

SCREW ITXSCM
(Superseded to 589968801)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 577 30 84-01

PIPE

$23.99

$

Usually ships in 3-10 days

0

12

Husqvarna 503 21 53-10

SCREW ITXSCM

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna Construction 506 32 95-05

BAR BRACKETIncl. 14

$299.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 506 40 13-01

BUSHING

$25.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 506 33 38-02

CLUTCH ASSYIncl. 16

$144.15

$

Usually ships in 3-10 days

0

16

Husqvarna 503 14 51-01

CLUTCH SPRING

$12.99

$

In Stock, Qty 5

0

17

Husqvarna Construction 506 39 96-02

SHIELD

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 720 13 07-10

PARALLEL PIN
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0
