K 970 Chain - Husqvarna Cut-Off Saw (2011-12) CRANKCASE Parts Diagram

Cut-Off Saw

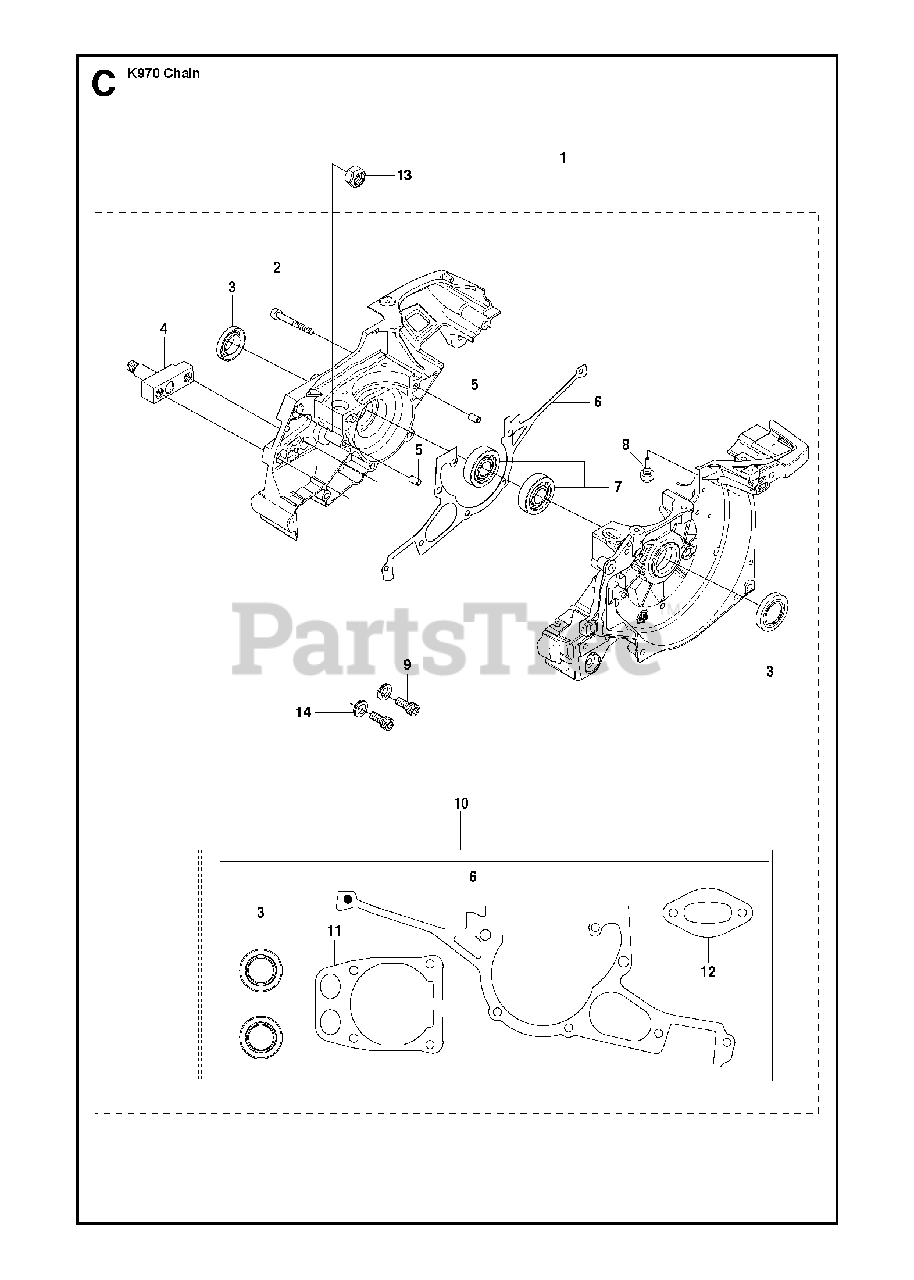

CRANKCASE Parts Diagram

  • Title

1

Husqvarna Construction 576 82 16-01

CRANKCASE ASSYIncl. 2 - 12

$

$

Not available

2

Husqvarna 503 21 53-49

SCREW ITXSCM

$5.49

$

Usually ships in 3-10 days

0

3

Husqvarna 503 26 02-04

SEALING RING

$17.99

$

In Stock, Qty 5

0

4

Husqvarna Construction 506 32 76-02

BAR BOLT

$148.47

$

Usually ships in 3-10 days

0

5

Husqvarna 501 27 08-01

GUIDE BUSHING

$8.49

$

Usually ships in 3-10 days

0

6

Husqvarna 506 41 39-04

GASKET

$40.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503 25 00-02

BALL BEARING
(Superseded to 738220325)

$26.99

$

In Stock, Qty 7

0

8

Husqvarna 522 85 61-01

RUBBER BUSHING

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 725 54 53-01

SCREW IHSCM

$3.50

$

Usually ships in 3-10 days

0

10

Husqvarna 544 22 98-05

GASKET KITIncl. 3 , 7, 11 - 12
(Superseded to 544229806)

$40.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576 49 94-01

GASKET

$25.99

$

In Stock, only 1 left!

0

12

Husqvarna 506 37 81-01

GASKET
(Superseded to 585280901)

$6.99

$

In Stock, Qty 5

0

13

Husqvarna Construction 503 22 21-02

LOCK NUT

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503 23 04-03

WASHER

$5.99

$

In Stock, Qty 10

0
