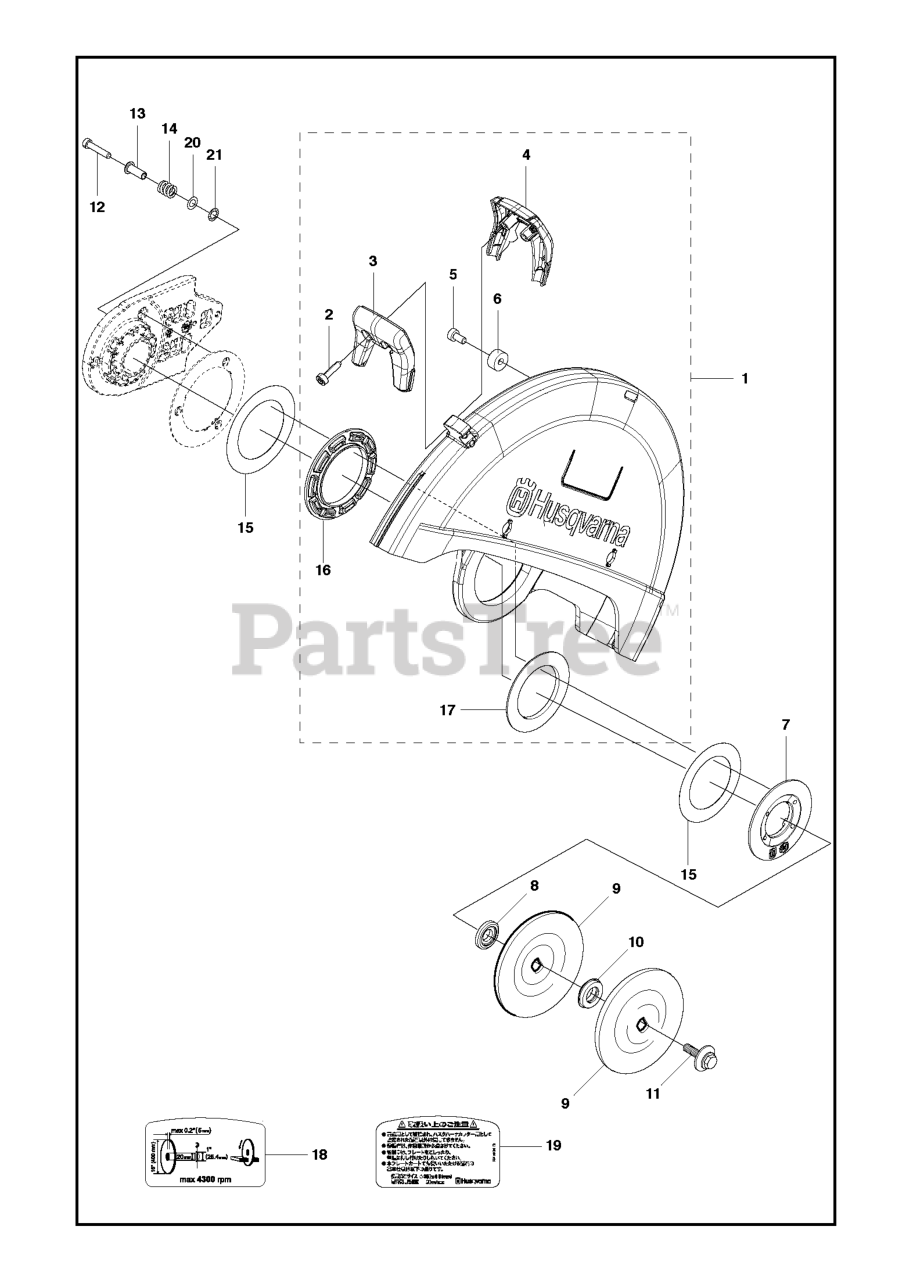

K 970 - Husqvarna Cut-Off Saw (2016-07) GUARDS Parts Diagram

Cut-Off Saw

GUARDS Parts Diagram

  • Title

20

Husqvarna 582233101

WASHER 8.3X13.5X0.5 ST ZPB

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 581117706

DECAL MG BLADEGUARD BUSHING SI

Note: "14"""

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 584437801

SHIM WHEELGUARD BEARING

$62.99

$

In Stock, only 1 left!

0

3

Husqvarna 578190901

HANDLE HALF

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 584438101

SPRING WHEEL GUARD

$15.99

$

In Stock, only 1 left!

0

11

Husqvarna 588655701

SCREW ASSY M10 BLADE
(Superseded to 590503801)

$26.99

$

In Stock, Qty 8

0

13

Husqvarna 584438202

SLEEVE SPRING BLACK

Note: "16"", Black"

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 506070902

WASHERS
(Superseded to 506070904)

Note: "Diam 119mm, Japan 14""/16"""

$34.99

$

In Stock, only 3 left!

0

10

Husqvarna 578398201

BUSHING

Note: Diam 20/25,4mm

$26.99

$

In Stock, only 4 left!

0

12

Husqvarna 544218430

SCREW ITXSCM M6X30 T27 10.9 Z

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 504909410

SCREW

$6.99

$

In Stock, only 2 left!

0

21

Husqvarna 582233201

WASHER 7.6X13.5X0.215 PTFE

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 504909414

SCREW

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 584992603

DECAL

Note: "16"""

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 583874402

FLANGE D105MM/3MM DOMEX 13MM B

Note: Diam 105mm

$14.99

$

In Stock, only 2 left!

0

10

Husqvarna 506379622

BUSHING

Note: Diam 22,2mm

$22.99

$

In Stock, only 4 left!

0

10

Husqvarna 581605403

BUSHING ASSY BLADE WITH O-RING

Note: Diam 30,5mm

$29.99

$

In Stock, only 2 left!

0

18

Husqvarna 581117707

DECAL MG BLADEGUARD BUSHING SI

Note: "16"""

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 584992602

DECAL

Note: "14"""

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 584438301

SUPPORT FLANGE

$24.99

$

In Stock, only 4 left!

0

16

Husqvarna 584437901

LINING BEARING HOUSING

$32.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581351906

WHEEL GUARD ASSY 16" MG UNIVER

Note: "16"""

$292.99

$

Usually ships in 3-10 days

0

7

Husqvarna 584437701

DISC HOLDER BEARING HOUSING

$65.99

$

Usually ships in 3-10 days

0

6

Husqvarna 581620301

STOP WHEEL GUARD MG

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 584438201

SLEEVE SPRING SHINY

Note: "14"", Shiny"

$12.99

$

Usually ships in 3-10 days

0

1

Husqvarna 581351904

WHEEL GUARD ASSY 14" MG UNIVER
(Superseded to 581351907)

Note: "14"""

$260.99

$

Usually ships in 3-10 days

0

4

Husqvarna 578760901

HANDLE HALF

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna 584438001

LINING DISC

$17.99

$

Usually ships in 3-10 days

0
